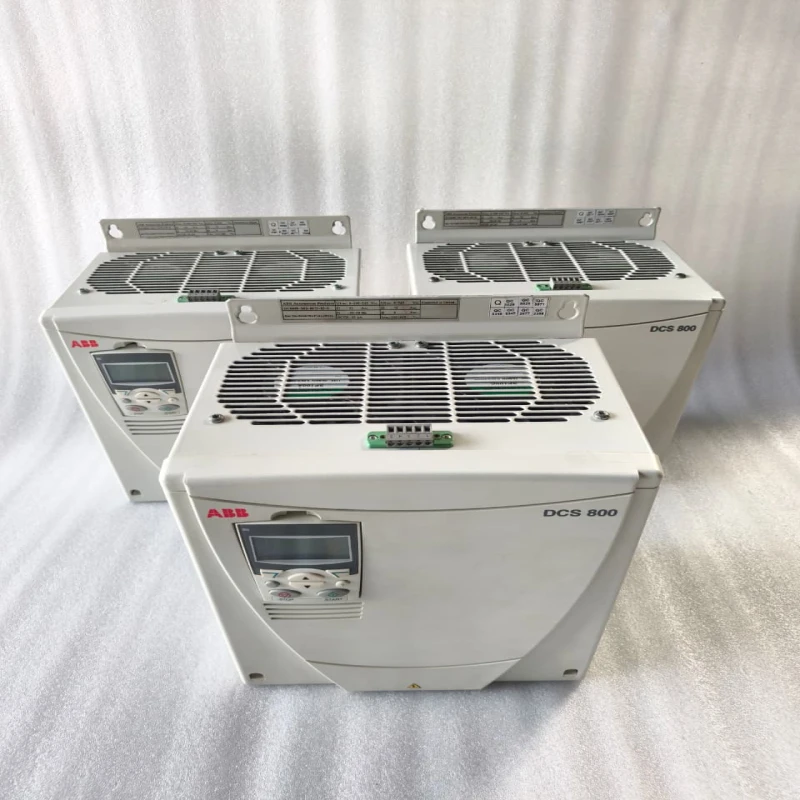

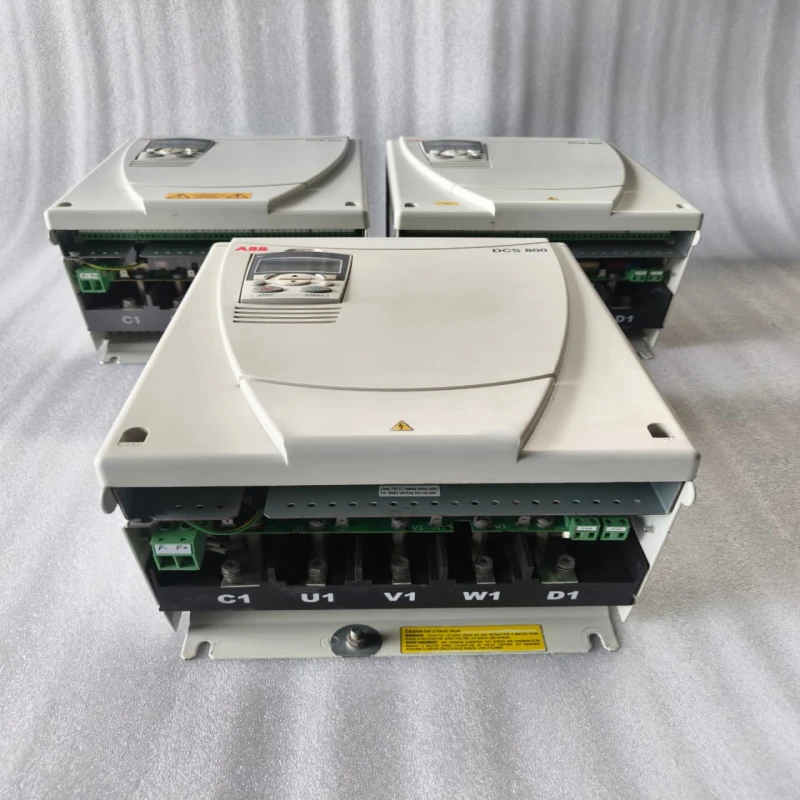

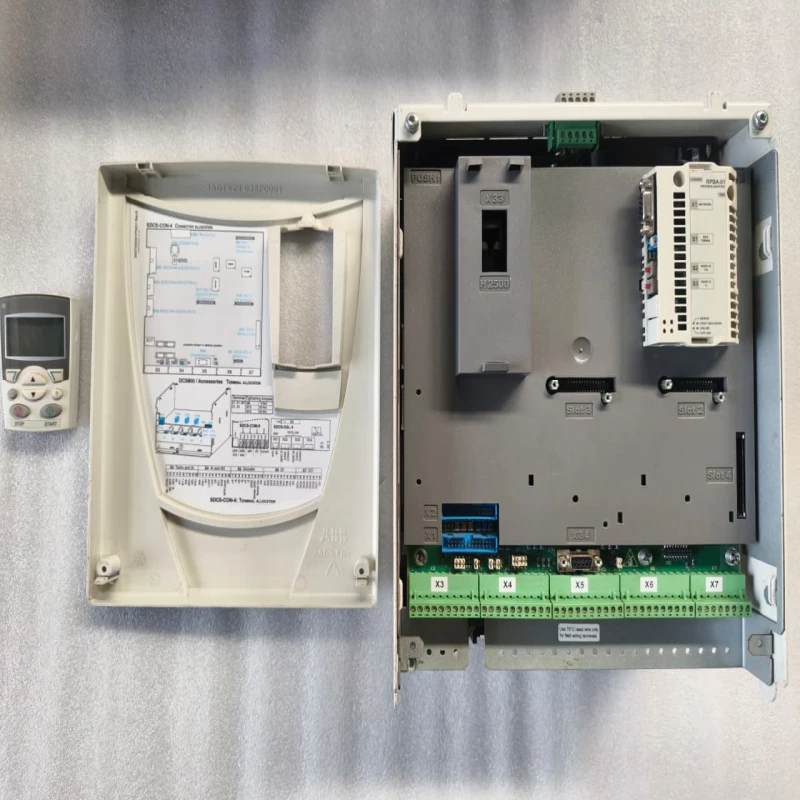

ABB DCS800-S02-0075-05-0 DC Industrial Drive Module

Name: ABB DCS800-S02-0075-05-0 DC Industrial Drive Module
Brand: ABB
SKU: 1747
Availability: InStock

Pricing Status

USED

Specification Details

Brand: ABB

Part Number: DCS800-S02-0075-05-0

Frame Size: D1

Electrical Inputs: 230 V AC to 525 V AC

Electrical Outputs: 0 to 545 V DC

Frequency Range: 50 / 60 Hz

Fault Current Rating: 65 kA SCCR

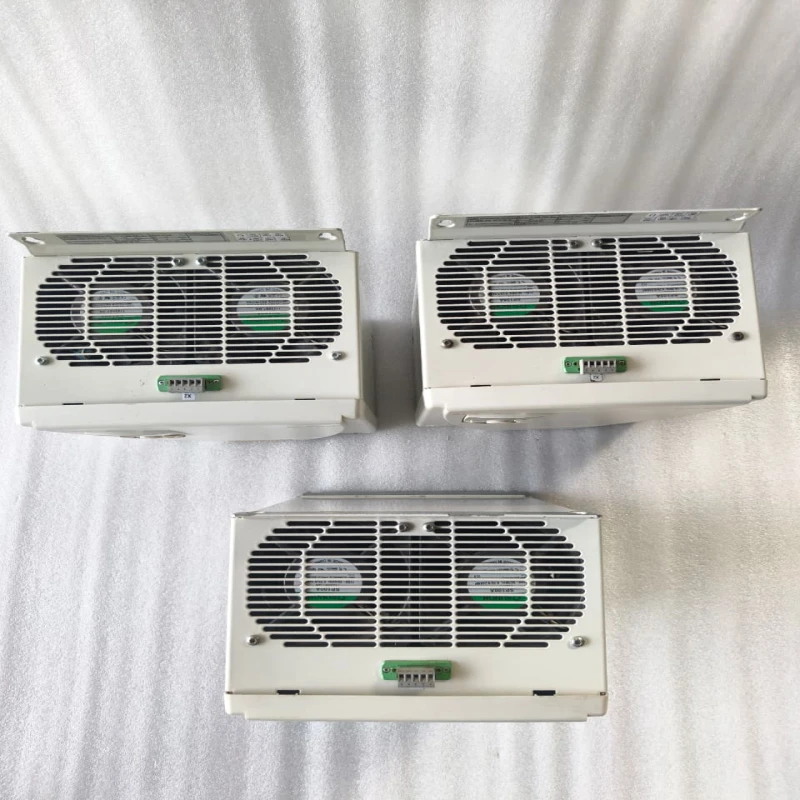

Cooling Airflow: 300 m³/h

Maximum Temperature: 40°C

Status:- Used Excellent Working (As Per Photos)

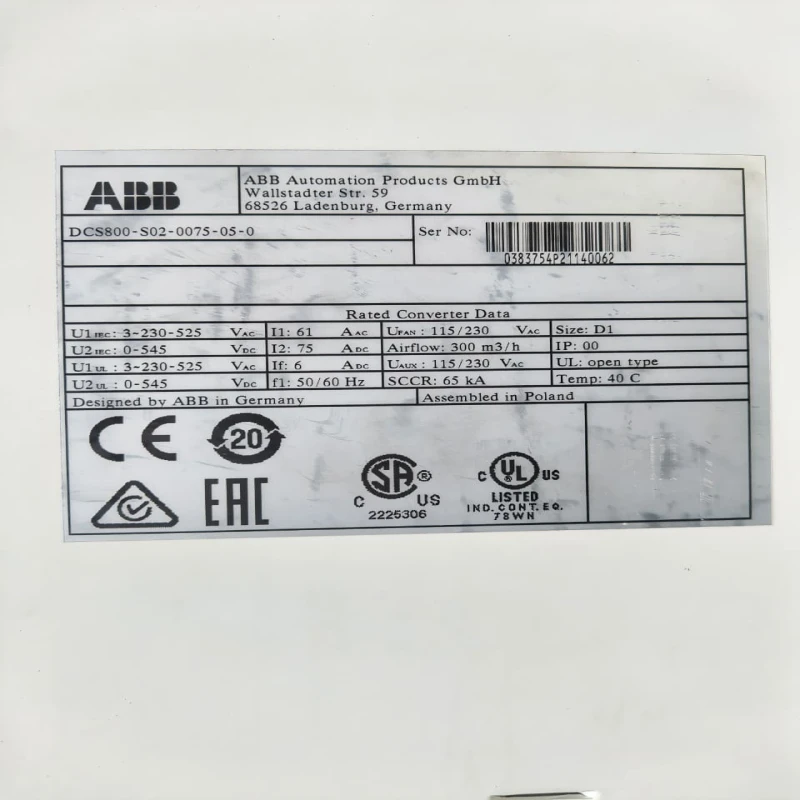

Country of Origin:- Made In Ladenburg, Germany

Shipping:- Fast & Safe Worldwide Shipping Available.

chat WhatsApp

verified_user

Free Shipping

For Indian customers

verified_user

Secure Payment

100% protected

verified_user

Export Quality

Authentic & Certified

verified_user

Fast Delivery

Worldwide shipping

The ABB DCS800-S02-0075-05-0 is a highly efficient, industrial-grade DC thyristor power converter module belonging to the renowned DCS800 series. Designed in Germany and assembled to rigorous standards in Poland, this module is built to deliver exceptional control performance for standard and heavy-duty industrial DC motor applications.

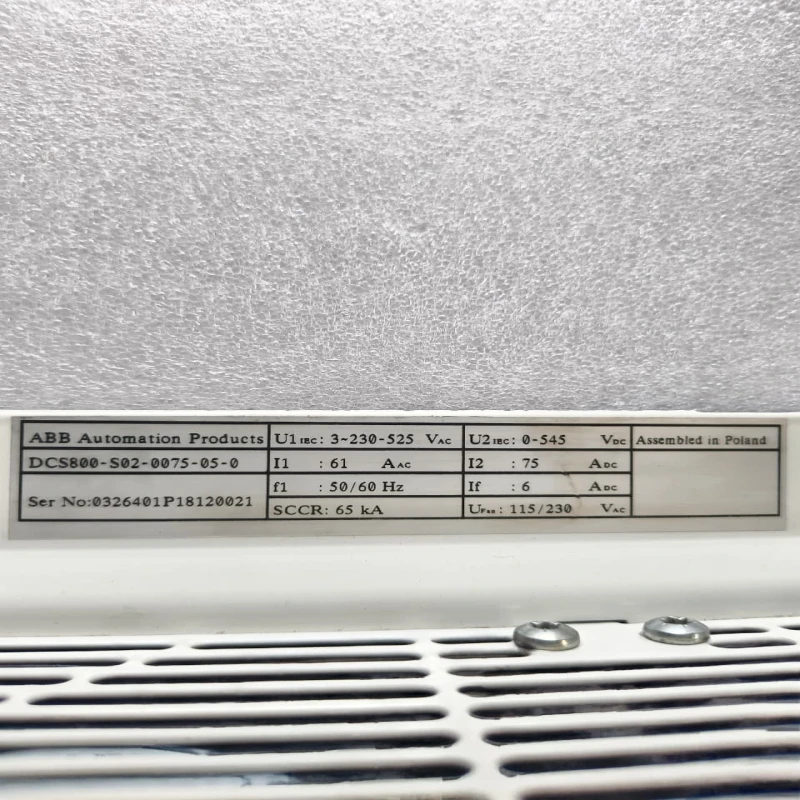

Operating with a rated input current of 61 A AC, it converts 3-phase incoming AC power into a highly stable 75 A DC output to power your armature networks. An integrated 6 A DC field current supply (If) ensures precise excitation control. The unit includes built-in cooling features capable of moving 300 m³/h of air to maintain safe thermal thresholds up to a maximum ambient temperature of 40°C. With a 65 kA Short Circuit Current Rating (SCCR), it provides high electrical fault resilience, making it the ideal choice for machinery retrofits, extruders, cranes, winders, and heavy industrial printing presses.
