ABB FEP311050A1S2A1B1A1A0A1B1C1H1T3 ProcessMaster 300 Electromagnetic Flowmeter
Specification Details
Brand: ABB
Product Series: ProcessMaster 300
Product Type: Electromagnetic Flowmeter

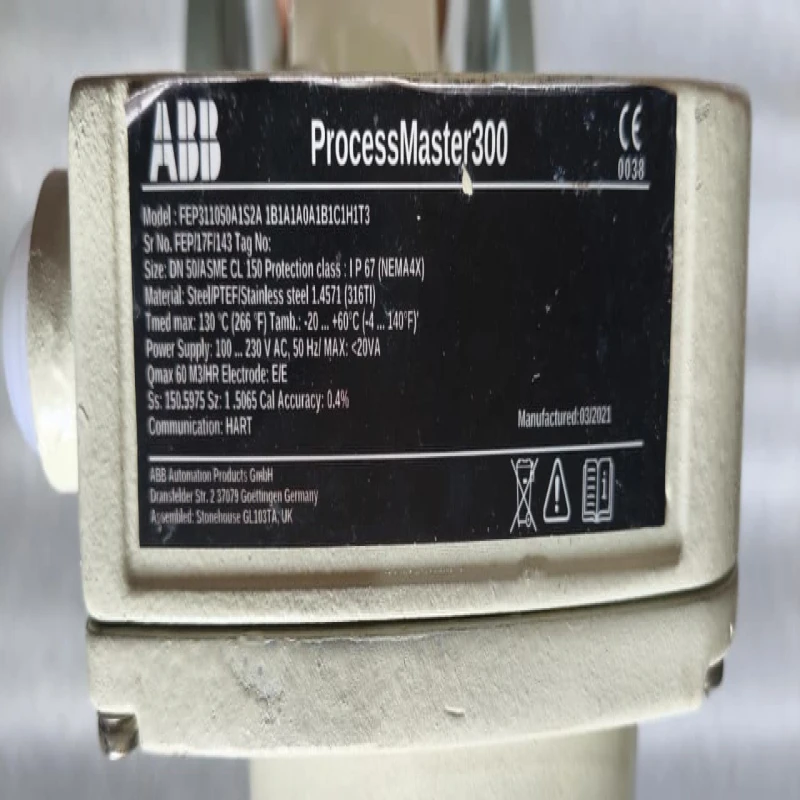

Model Number: FEP311050A1S2A 1B1A1A0A1B1C1H1T3
Line Size: DN 50/ASME CL 150
Measurement Principle: Electromagnetic
Fluid Type: Conductive Liquids
-20...+60C(-4..140'F)
Accuracy: Up to ±0.2% of Rate
Tmed max: 130 "C (266 "F)
Operating Temperature: -20..+60*C(-4... 140%F)
Material: Steel/PTEFIStainless steel 1.4571 (316TI)
Repeatability: ±0.1%
Liner Material: PTFE
Electrode Material: Hastelloy C
End Connection: Flanged

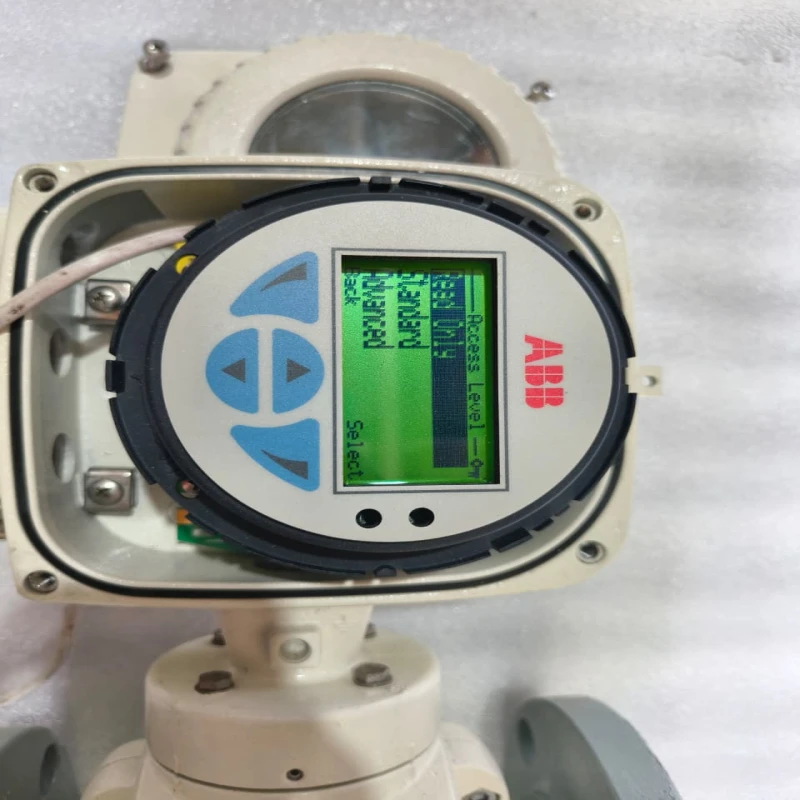

Display Type: Backlit LCD Digital Display
Communication Protocol: HART
Output Signal: 4-20 mA, Pulse, Frequency, Status Output
Power Supply: 100 .…..230 V AC, 50 Hzl MAX: <20VA
Protection Rating: I P 67 (NEMA4X)
Flow Direction: Bi-directional
Pressure Loss: Negligible
Moving Parts: None
Installation: Inline
Diagnostics: Advanced Self-Diagnostics
Applications: Water, Wastewater, Chemical, Pharmaceutical, Food & Beverage, Mining, Pulp & Paper, Power Plants, Utilities
Status: Used Excellent Working (As per photos)
Country Of Origin: Made In UK
Shipping: Fast & Safe Dispatch Across India & Worldwide Available.
The ABB ProcessMaster 300 Electromagnetic Flowmeter FEP311050A1S2A1B1A1A0A1B1C1H1T3 is a premium industrial magnetic flowmeter engineered for highly accurate measurement of conductive liquids. Designed with ABB's advanced electromagnetic sensing technology, this flowmeter provides exceptional measurement stability, high repeatability, and virtually maintenance-free operation.
Its obstruction-free measuring tube eliminates pressure loss while ensuring accurate flow monitoring for water, wastewater, chemicals, acids, alkalis, slurries, pulp stock, and other conductive process liquids. The ProcessMaster 300 delivers dependable performance even under challenging industrial operating conditions.
This DN50 (2-inch) electromagnetic flowmeter features intelligent signal processing, advanced diagnostics, and an easy-to-read LCD display that simplifies commissioning, configuration, and maintenance. It is widely used in process automation systems where precision, reliability, and long operational life are essential.
With ABB's trusted engineering, the ProcessMaster 300 helps improve process efficiency, reduce maintenance costs, and ensure accurate flow measurement across various industrial applications.
