AUTOMATED LOGIC SE6166SP Control Module | BACnet Building Automation Controller | 16 UI 6 DO 6 AO | 24VAC
Specification Details
Brand: Automated Logic
Part Number: SE6166sp
Product Type: Single Equipment Controller / Control Module
Controller Class: BACnet Advanced Application Controller (B-AAC)
Programming: Fully Programmable
Programs: 1 Program
Objects: Up to 400 Objects
Total Control Points: 28

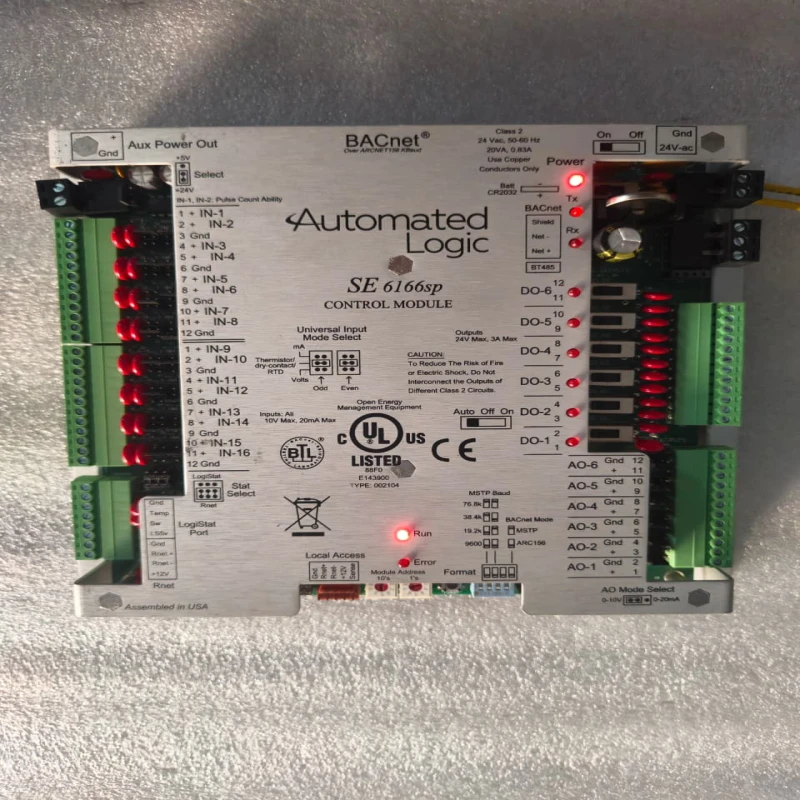

Universal Inputs: 16 UI
Digital/Binary Outputs: 6 DO
Analog Outputs: 6 AO

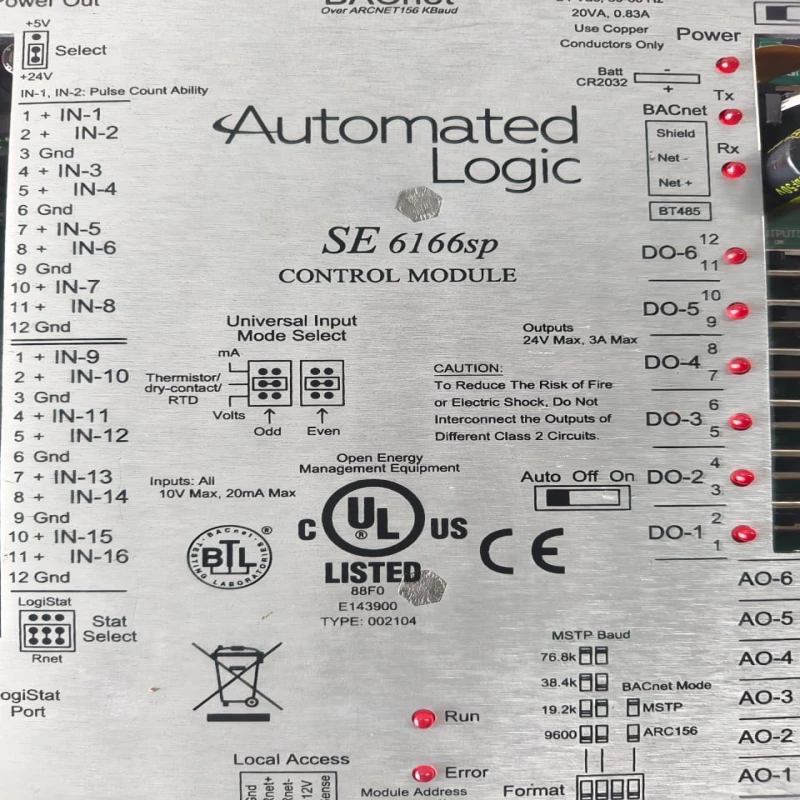

Input Signal Types: Thermistor, Dry Contact/RTD, Voltage, mA
Input Rating: 10 V Max, 20 mA Max
Output Rating: 24 V Max, 3 A Max
Communication Protocol: BACnet
Communication Interfaces: ARC156 / MS/TP
MS/TP Baud Rates: 9.6, 19.2, 38.4, 76.8 kbps
Power Supply: 24 VAC
Power Requirement: 20 VA, 0.83 A
Backup Battery: CR2032
Building Automation System: Automated Logic WebCTRL
Programming Environment: EIKON graphical programming
Primary Applications: HVAC, Building Automation, Rooftop Units, Lighting, Exhaust Fan Control
Mounting Application: Control panel / equipment control applications
Certifications/Marks Visible: UL Listed, CE, BTL
Country Of Origin: Made In USA

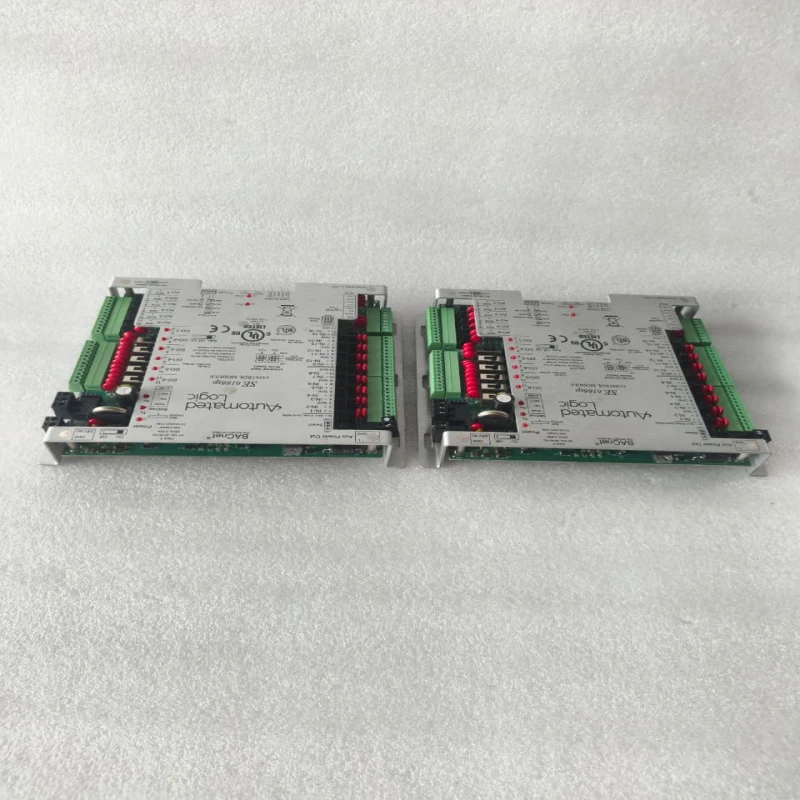

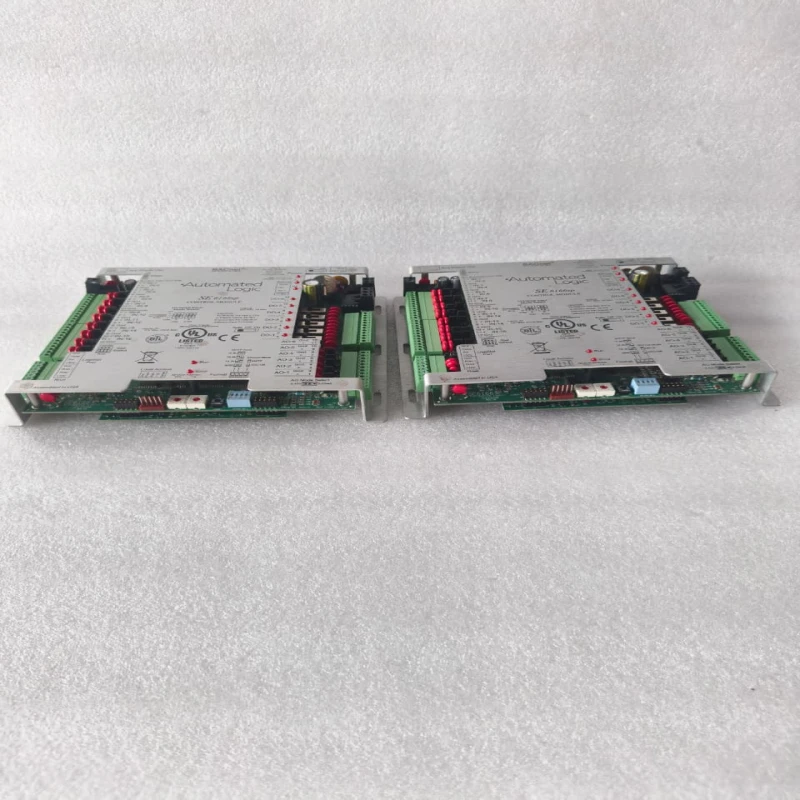

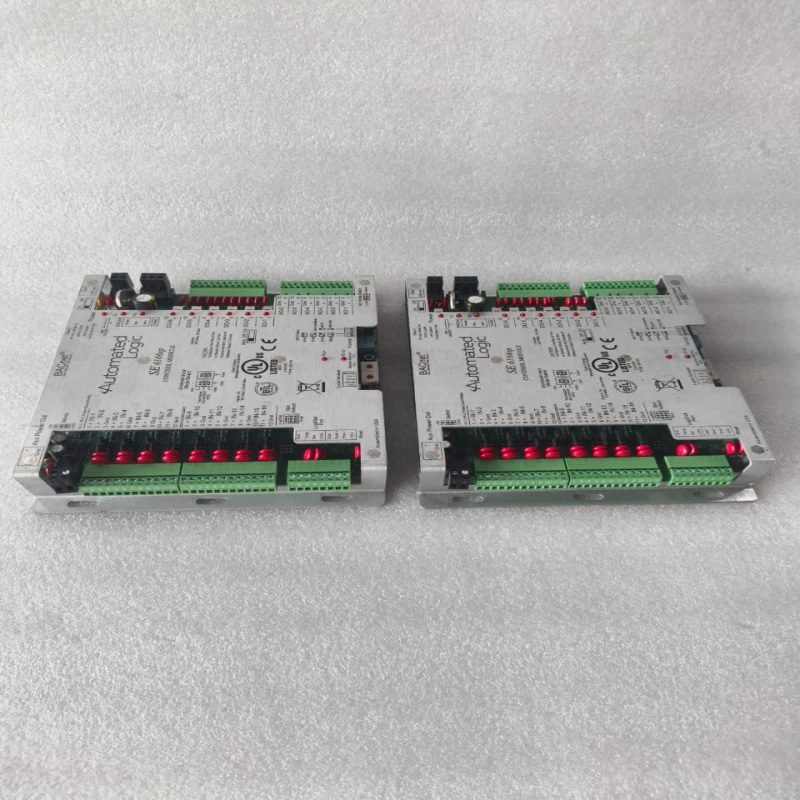

Condition: Used Excellent Working (As Per Photos)
Shipping: Fast & Safe Worldwide Shipping Available.
The AUTOMATED LOGIC SE6166SP Control Module is a fully programmable single-equipment controller designed for building automation and HVAC control applications. It is a native BACnet Advanced Application Controller (B-AAC) and is intended for controlling individual pieces of equipment in distributed building automation systems.
The SE6166sp provides 28 control points, consisting of 16 universal inputs, 6 binary/digital outputs, and 6 analog outputs. The universal inputs can accommodate different signal types, including thermistor, dry contact/RTD, voltage and mA configurations as indicated on the controller.
For network communication, the controller supports BACnet over ARC156 as well as BACnet MS/TP, making it suitable for integration into compatible building automation networks. The controller is designed for applications such as rooftop units, fan coil units, lighting, exhaust fan control and other single-equipment applications.
The SE6166sp is also designed for use with the WebCTRL building automation system and supports graphical programming, remote firmware upgrades and distributed control.
