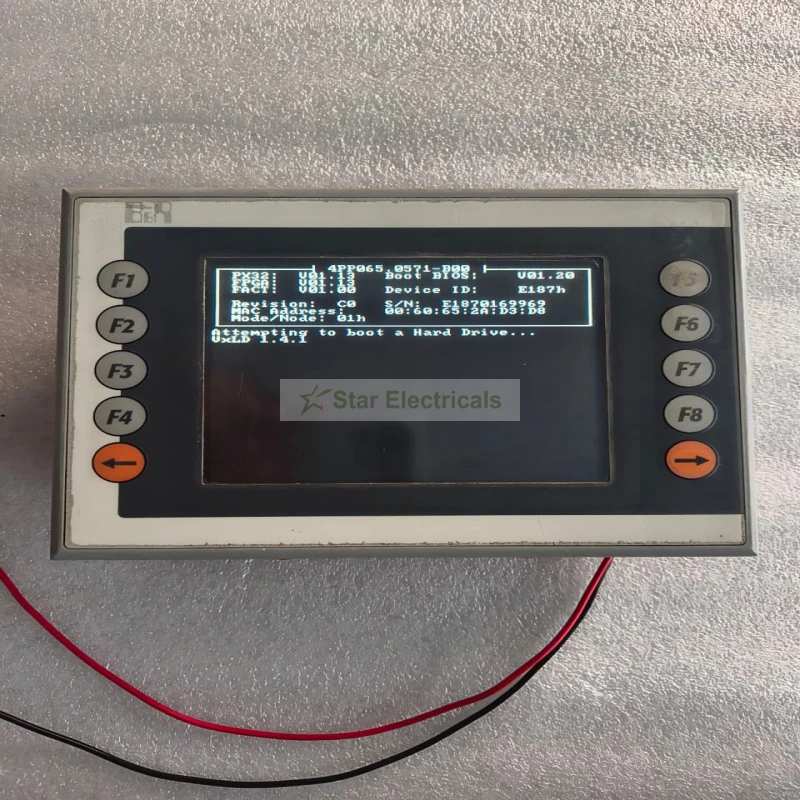

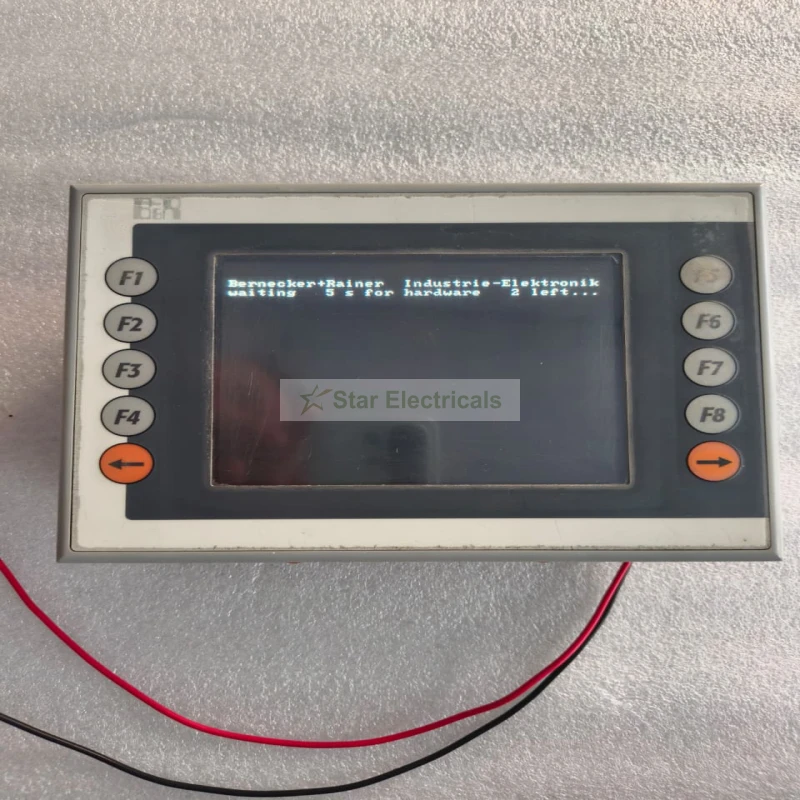

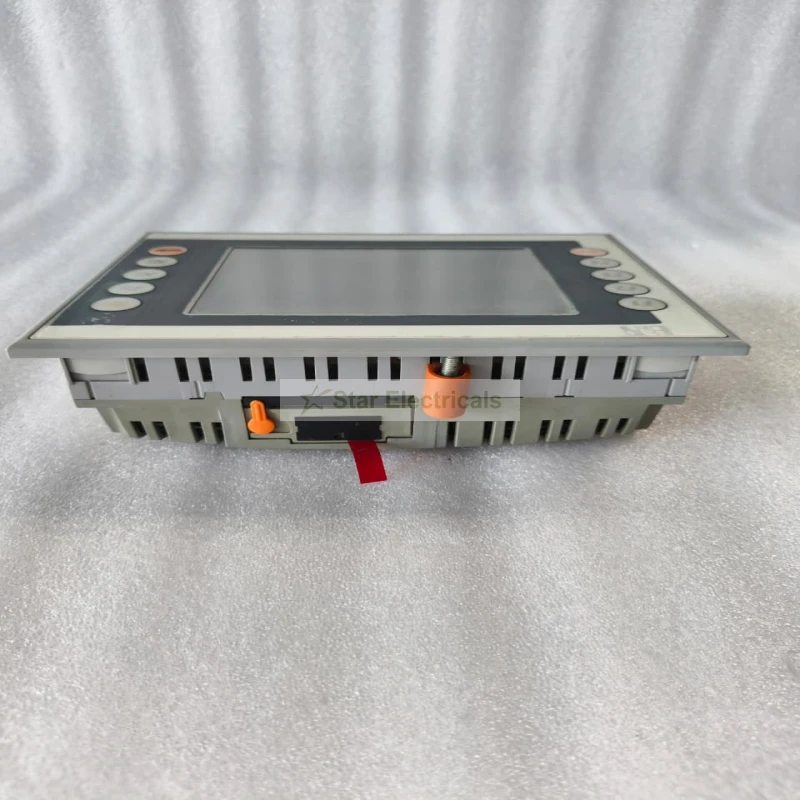

B And R 4PP065.0571-B00 Power Panel 65 – 5.7 Inch QVGA TFT Color Display, Resistive Touchscreen, 10 Function Keys, X2X Link Ethernet
Specification Details
Brand: B&R Industrial Automation

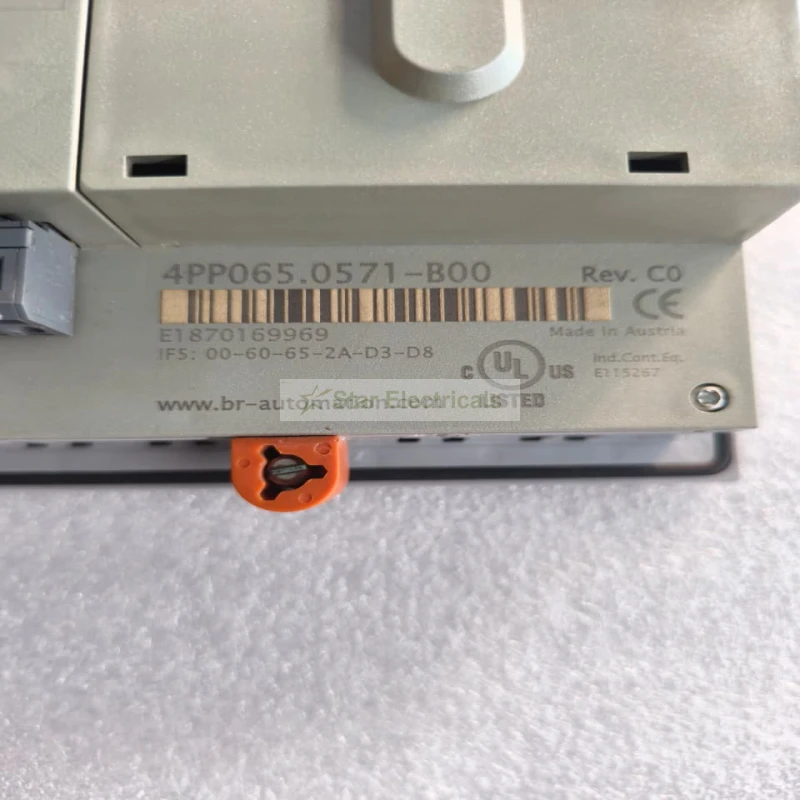

Part Number: 4PP065.0571-B00
Product Series: Power Panel 65 (PP65)
Display: 5.7-inch color TFT
Resolution: QVGA, 320 × 240 pixels
Touchscreen: Analog resistive touchscreen with 12-bit B&R touch controller
Function Keys: 10 membrane function keys with slide-in labels
Controller: Geode LX800, 32-bit x86 processor
Processor Speed: 500 MHz
Memory: 128 MB DDR SDRAM + 200 kB SRAM
Communication: Ethernet 10/100 Mbit/s and X2X Link
USB: 2 × USB Type-A ports supporting USB 1.1/2.0
CompactFlash: 1 × Type I CompactFlash slot
Power Supply: 24 VDC ±25%
Typical Power Consumption: 10 W
Protection: IP65 / NEMA Type 4X front; IP20 rear under specified conditions
Mounting: Panel-mounted industrial HMI
Housing: Polyester
Dimensions: 203 × 145 × 56.5 mm
Weight: Approximately 0.75 kg
Country Of Origin: Made In Austria

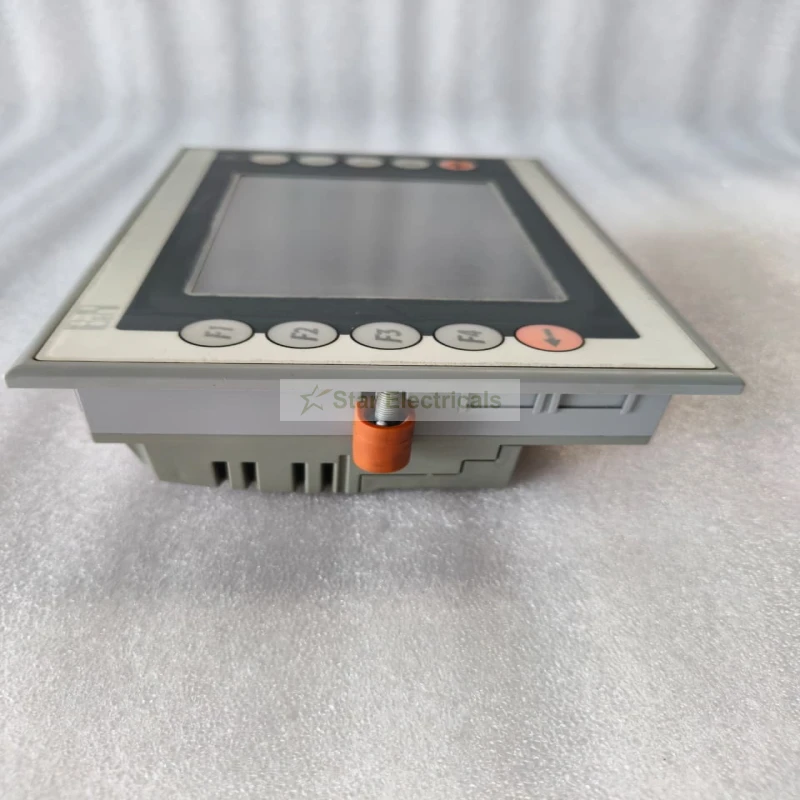

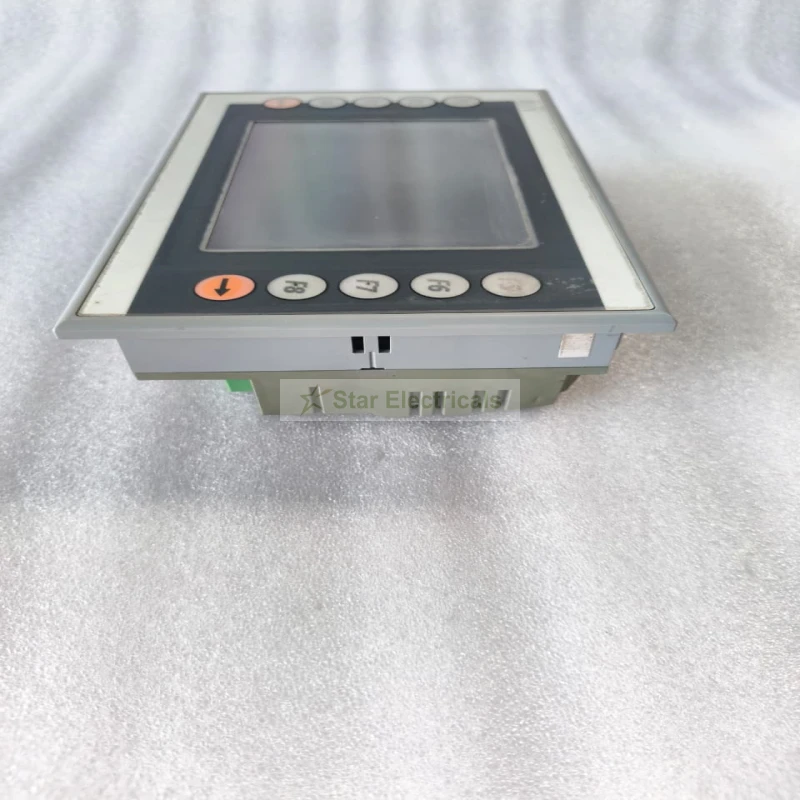

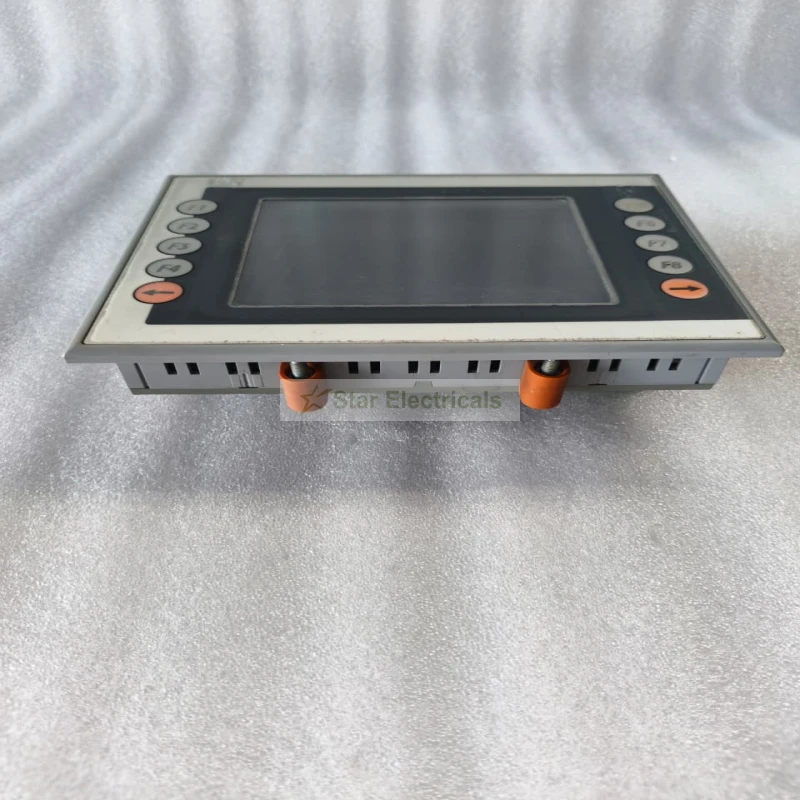

Condition: Used Excellent Working (As Per Photos)
Shipping: Fast & Safe Worldwide Shipping Available.
The B&R 4PP065.0571-B00 Power Panel 65 is a compact industrial operator panel designed for machine control, visualization and automation applications. It combines a 5.7-inch QVGA color TFT display, resistive touchscreen, programmable function keys and an integrated industrial controller in a space-efficient panel-mounted design.

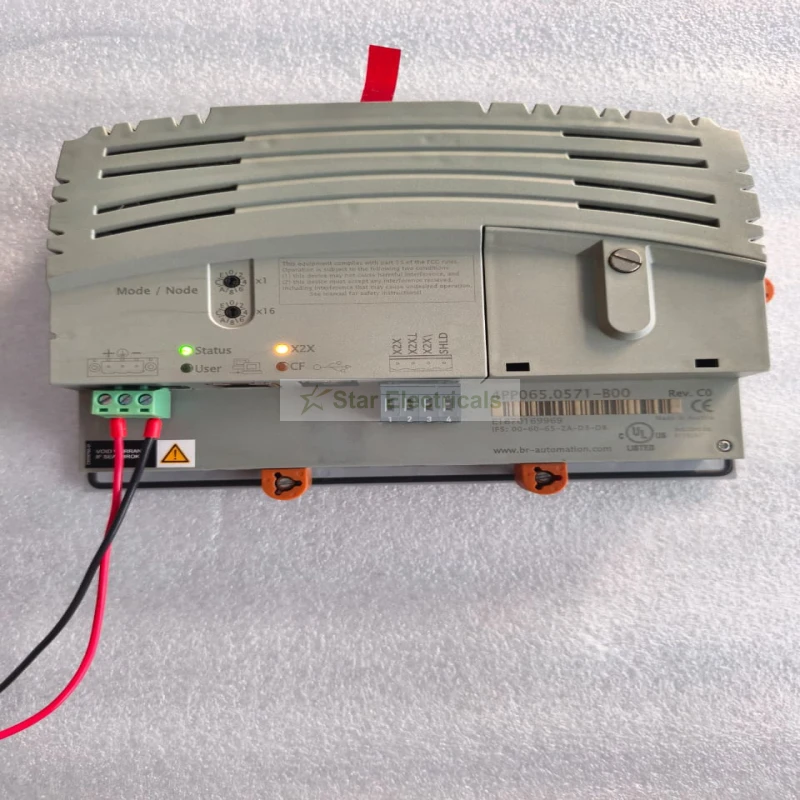

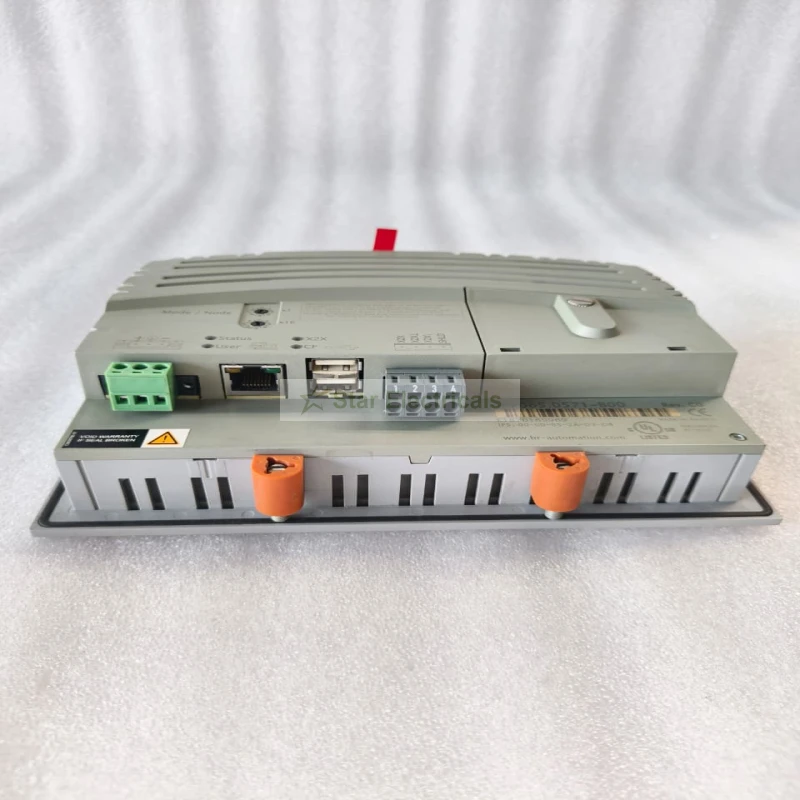

The unit is powered by 24 VDC ±25% and incorporates a 500 MHz Geode LX800 32-bit x86 processor, 128 MB DDR SDRAM and 200 kB SRAM. Its communication capabilities include 10/100 Base-T Ethernet and B&R X2X Link, making it suitable for integration into industrial automation networks. Two USB ports and a CompactFlash slot provide additional connectivity and storage options.

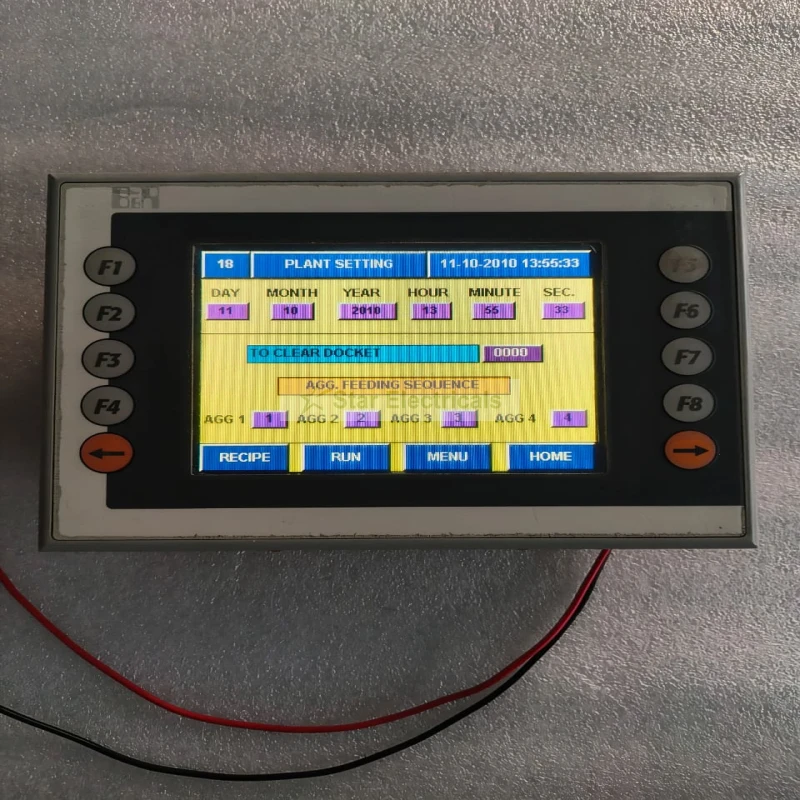

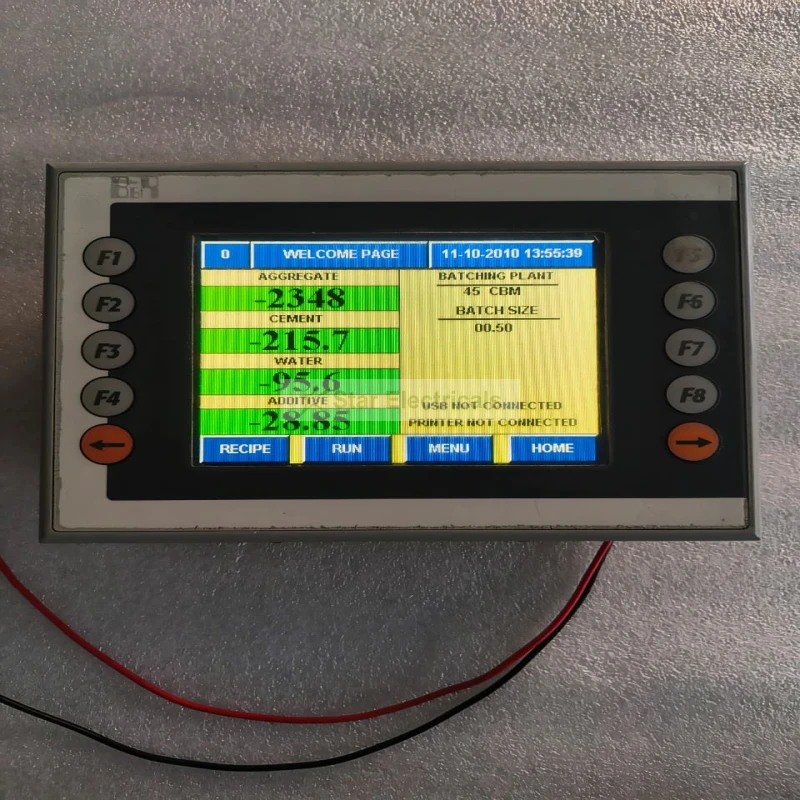

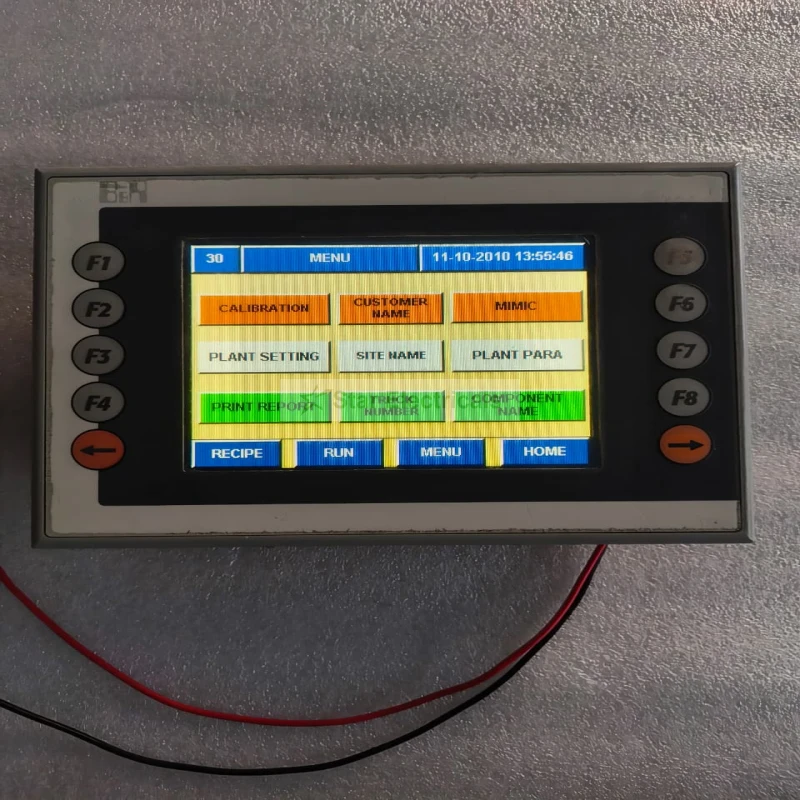

The 4PP065.0571-B00 features 10 membrane function keys and an analog resistive touchscreen, allowing operators to interact with machine-control and visualization software. The display provides 320 × 240 pixel QVGA resolution, 262,144 colors and a 350:1 contrast ratio.
Its rugged industrial construction provides IP65 / NEMA 250 Type 4X protection on the front, making it suitable for demanding factory-floor environments where protection against dust and sprayed water is required. The unit operates in temperatures from 0 to 50°C.
