Emerson KJ3242X1-BA1 Fieldbus H1 Series 2
Specification Details
Brand: Emerson / Fisher-Rosemount Systems
Product Family: DeltaV
Part Number KJ3242X1-BA1
Product Type: Fieldbus H1 Card
Series: Series 2
Communication Protocol: FOUNDATION Fieldbus H1
LocalBus Power: 12 VDC, 300 mA
Fieldbus Power: 9–32 VDC
Fieldbus Current: 12 mA/Port
Operating Temperature: -40°C to +70°C
Relative Humidity: 5–95%, non-condensing
Protection Rating: IP20
Shock: 10g, ½ sinewave, 11 ms
Airborne Contaminants: ISA-S71.04-1985 Class G3
Terminal Block Key Position: D6
Application: Industrial Process Automation / DCS
System: Emerson DeltaV
Mounting: DeltaV carrier/interface system
Calibration : Not required
Maintenance: No user-serviceable parts
Typical Terminal Block: KJ3242X1-EA1 simplex / KJ3242X1-FA1 redundant
Country Of Origin: Made In Thailand

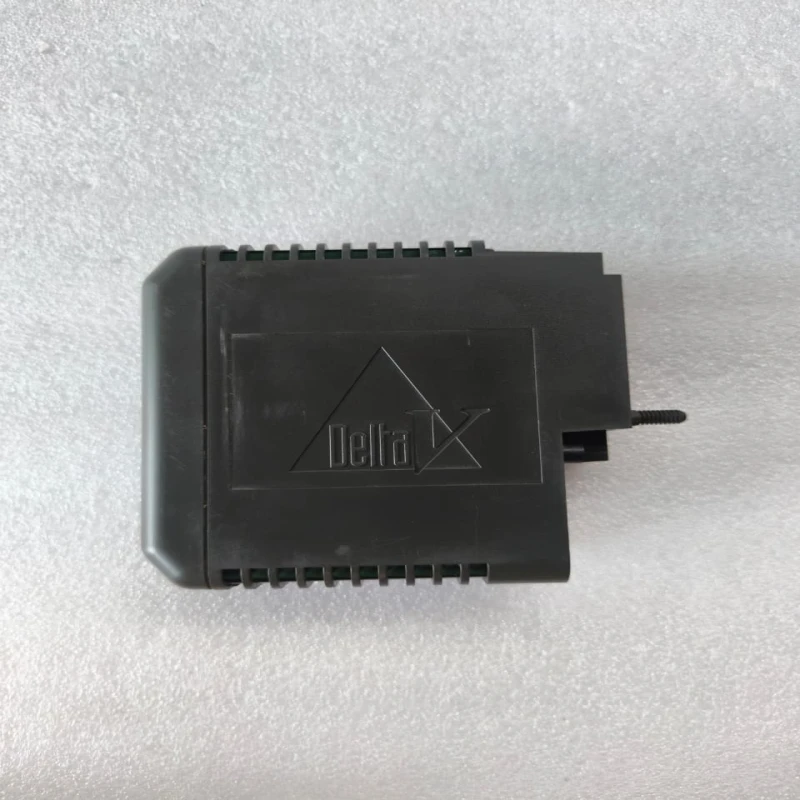

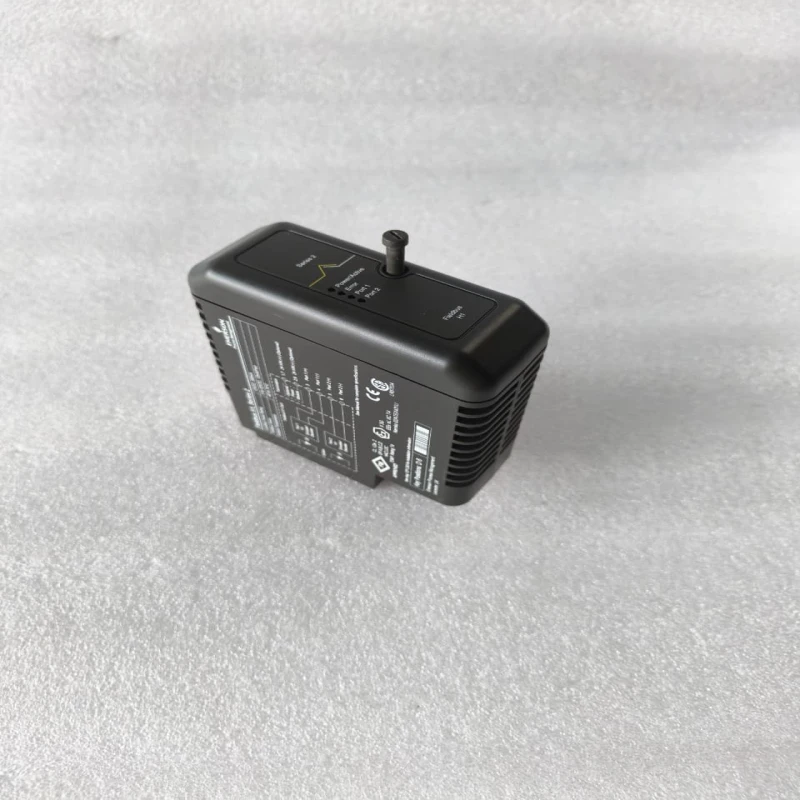

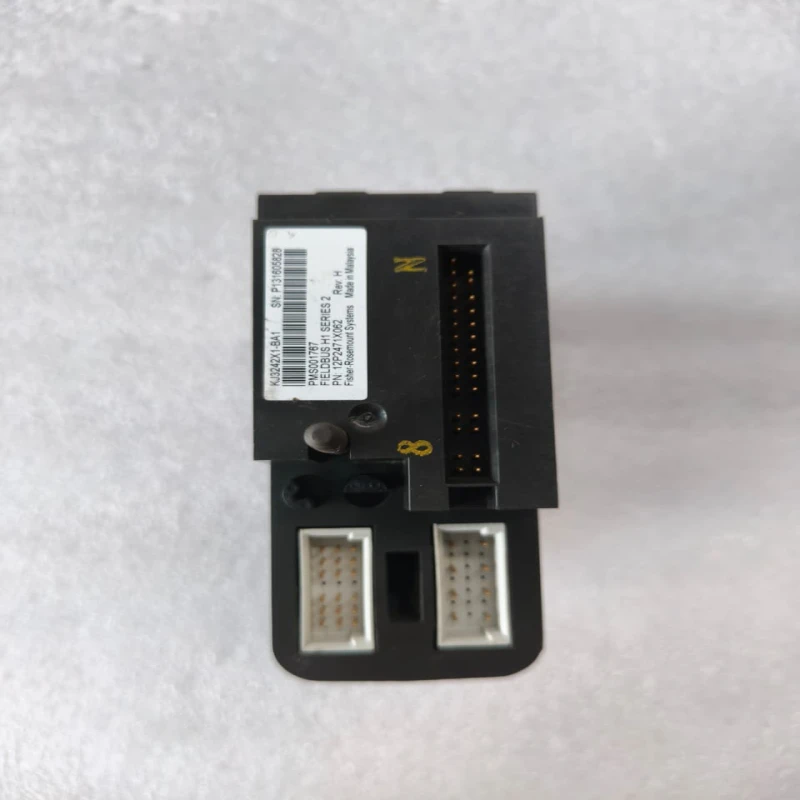

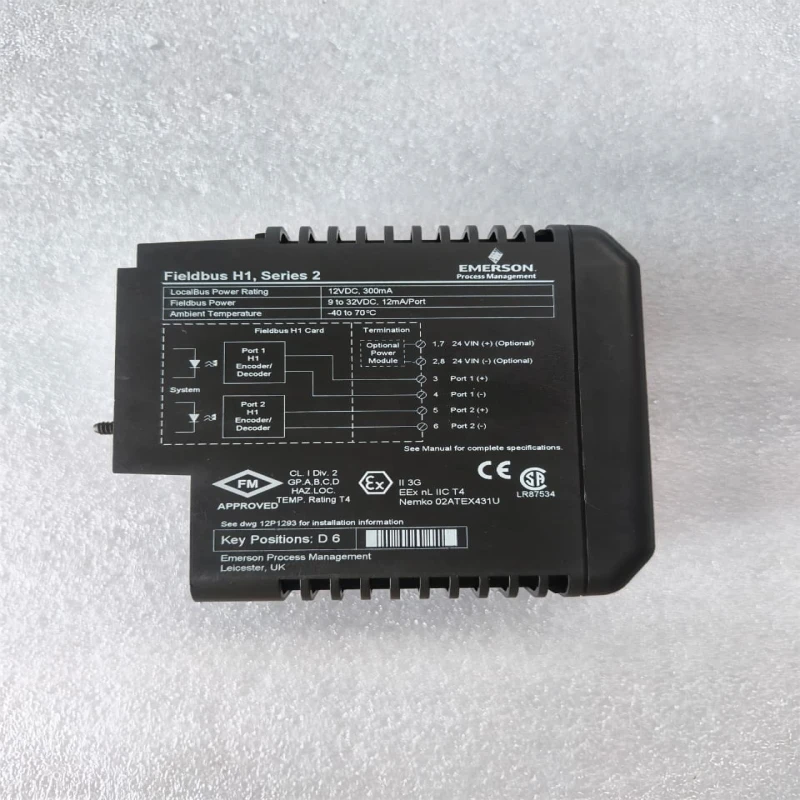

Condition: Used Excellent Working (As Per Photos)
Shipping: Fast & Safe Worldwide Shipping Available.
The Emerson Fisher-Rosemount KJ3242X1-BA1 DeltaV Fieldbus H1 Series 2 Card is an industrial communication interface designed for Emerson DeltaV distributed control system (DCS) applications. It provides FOUNDATION Fieldbus H1 connectivity between the DeltaV system and field-level instrumentation and devices.
The KJ3242X1-BA1 supports a 12 VDC, 300 mA LocalBus power rating and 9–32 VDC fieldbus power at 12 mA per port, making it suitable for industrial process automation installations. Emerson documentation specifies an ambient operating temperature range of -40°C to +70°C.
This Series 2 Fieldbus H1 interface is particularly useful for process control, instrumentation, refinery, chemical, power generation, marine and industrial automation systems where reliable digital field communication is required.
The model is also referenced by Emerson as an option for earlier DeltaV versions where older-generation M-series H1 interface cards are required.
