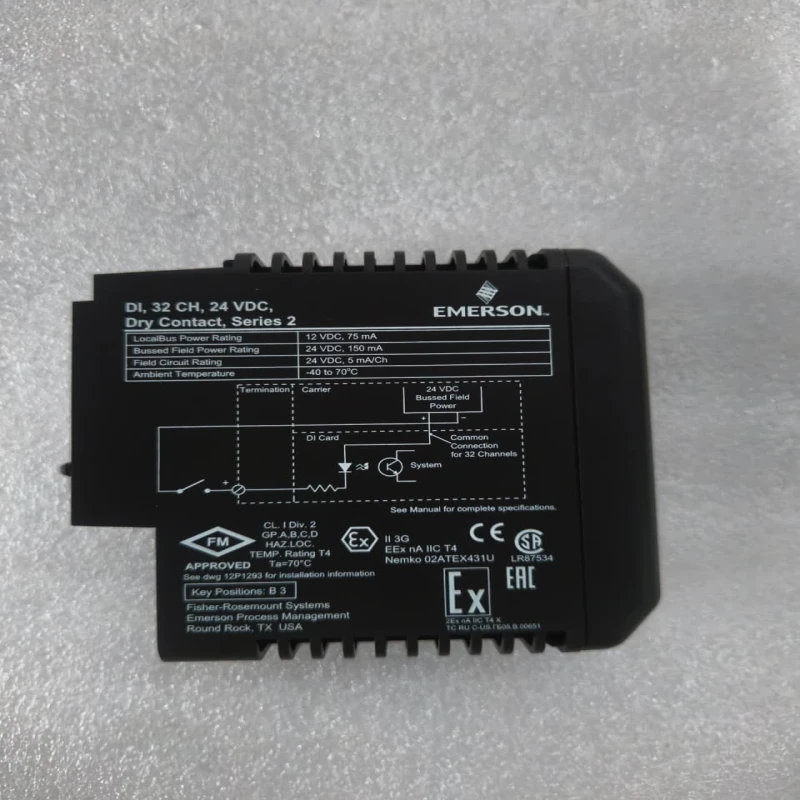

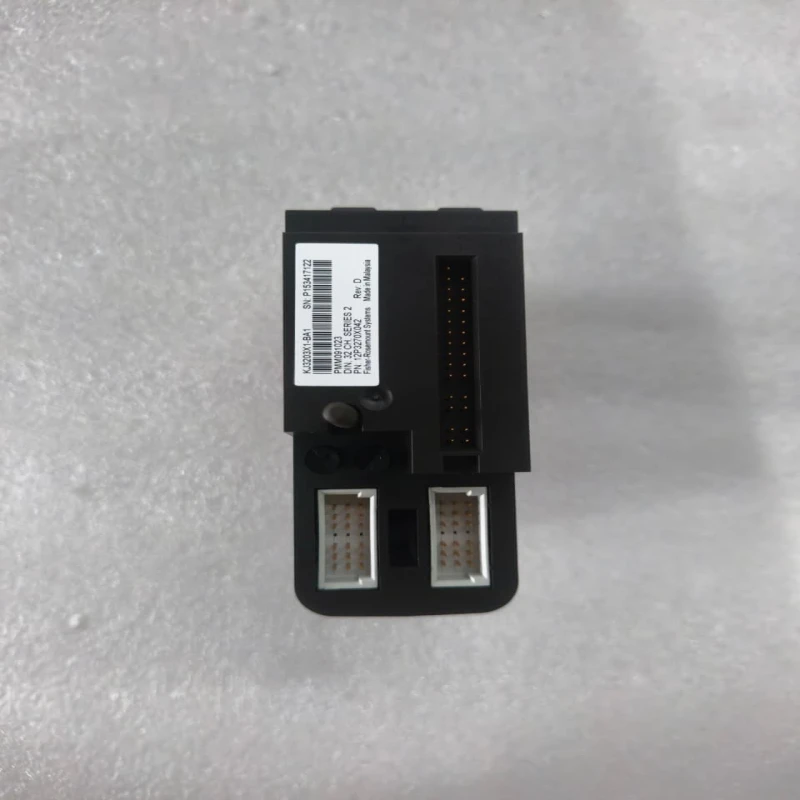

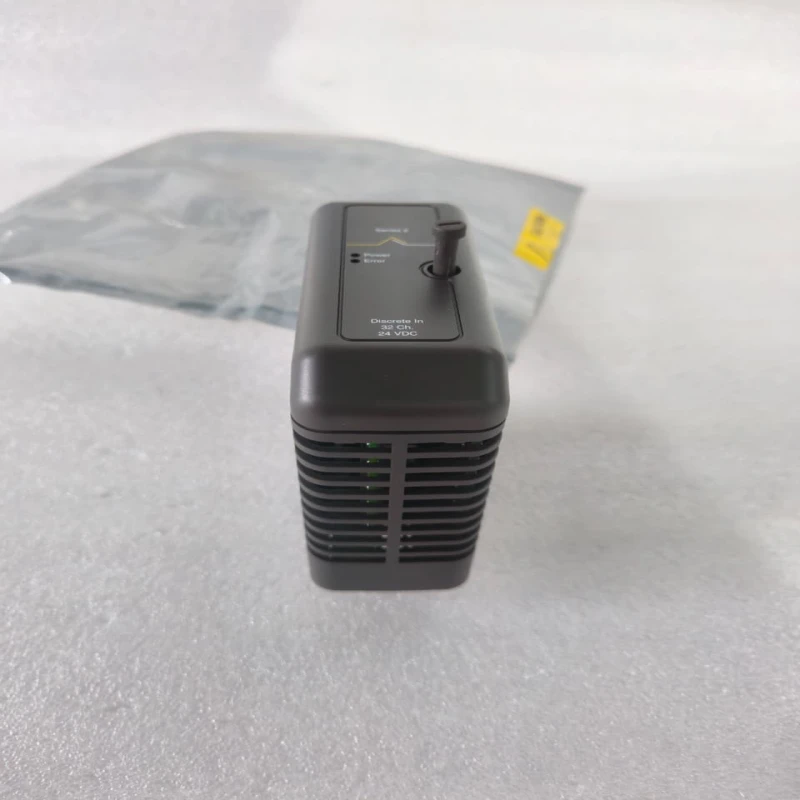

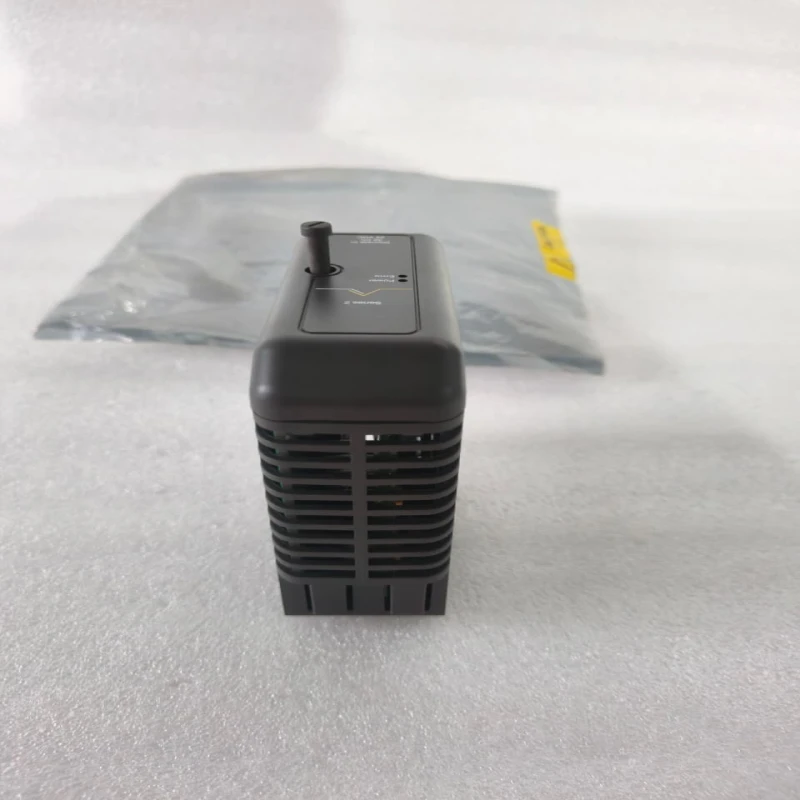

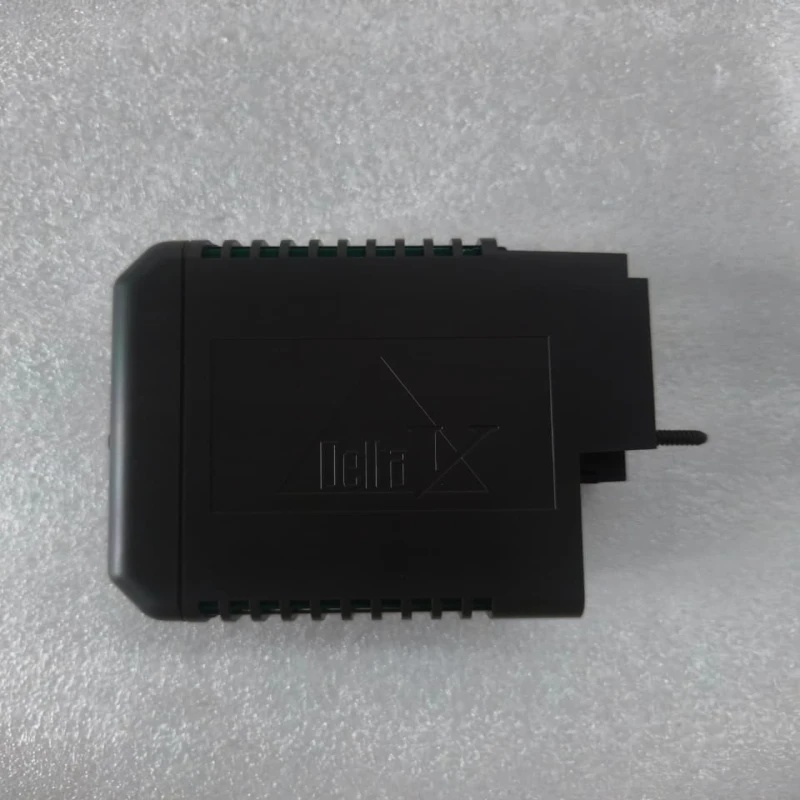

EMERSON KJ3203X1-BA1 Series 2 Digital Input Module
Specification Details
Brand: Emerson / Fisher-Rosemount
Part Number: KJ3203X1-BA1
Product Series: DeltaV Series 2
Module Type: Digital Input / Discrete Input
Number of Channels: 32
Input Signal Type: Dry Contact
Field Voltage: 24 VDC
Field Circuit Rating: 24 VDC, 5 mA/channel
LocalBus Power: 12 VDC, 75 mA
Bussed Field Power: 24 VDC, 150 mA
Ambient Temperature: -40°C to +70°C
Terminal Block Key: B3
Enclosure Rating: IP20
Humidity: 5–95% non-condensing
Series: Series 2
Application: DCS, Process Automation, Industrial Control
Mounting/System: Emerson DeltaV I/O system
Country Of Origin: Made In Malaysia

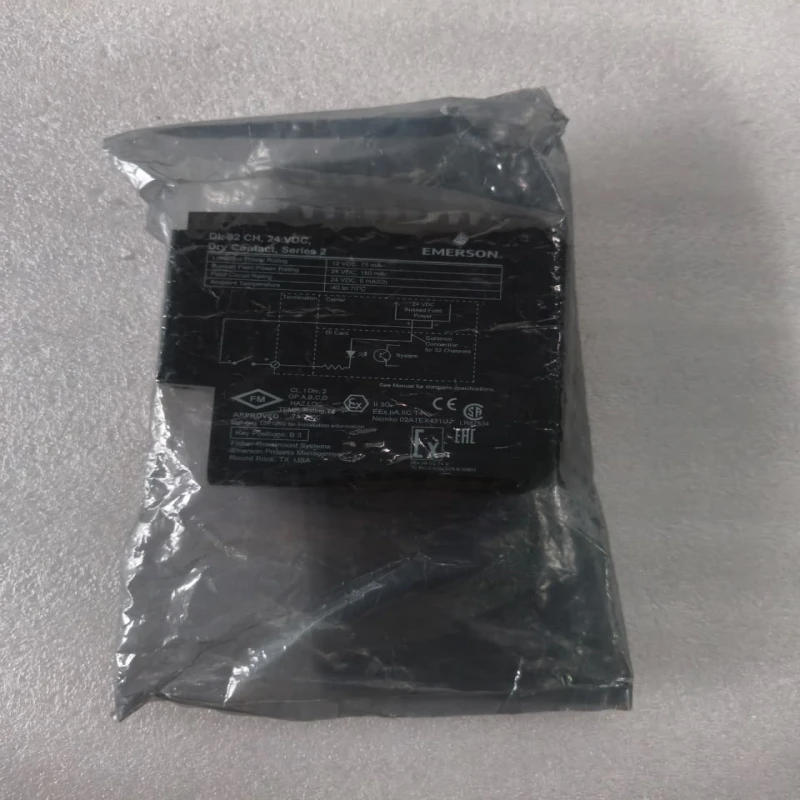

Condition: Used Excellent Working (As Per Photos)
Shipping: Fast & Safe Worldwide Shipping Available.
The Emerson KJ3203X1-BA1 is a DeltaV Series 2 32-channel Digital Input (DI) card designed for 24 VDC dry-contact signal monitoring in industrial automation and process control systems. It provides 32 discrete input channels for acquiring on/off status signals from field devices and transferring those signals to the DeltaV control system.
The KJ3203X1-BA1 features a 24 VDC dry-contact field circuit, with a field circuit rating of 24 VDC at 5 mA per channel. Its LocalBus power requirement is 12 VDC at 75 mA, while the bussed field power rating is 24 VDC at 150 mA. The module is designed for demanding industrial environments with an operating ambient temperature range of -40°C to +70°C.
The module incorporates a rotary keying system to help ensure compatibility between the I/O card and the corresponding terminal block. The documented terminal-block key position for this module is B3.
This Emerson DeltaV Series 2 DI card is suitable for applications requiring dependable acquisition of discrete signals from industrial equipment, control panels, process machinery, and field devices.
