ENMOS SIMPLEX 263T Industrial HMI Control Panel | 24V DC | Ethernet, RS485 RS232 | 32 DI / 32 DO | Textile Machinery Controller | Serial No. 1950A69933
Specification Details
Brand: ENMOS
Series: SIMPLEX
Model: 263T
Part Number: 1950A69933
Product Type: Industrial HMI / Machine Controller
Power Supply: 24V DC
Digital Inputs: 32 DI (DI1–DI32 visible)
Digital Outputs: 32 DO (DO1–DO32 visible)
Communication – 1: Ethernet
Communication – 2: RS485
Communication – 3: RS232
Storage Interface: Micro SD
Display: Integrated industrial display
Operator Controls: Keypad, function keys, navigation, Start/Stop, Manual
Mounting/Application: Industrial machinery / textile machinery
Country/Manufacturer Association
Country of Origin: Made in Turkey
Condition: Used Excellent Working (As Per Photos)
Shipping: Fast & Safe Worldwide Shipping Available.
The ENMOS SIMPLEX 263T is an industrial machine control and HMI unit designed for monitoring, operator interaction and control of automated machinery. The unit combines a front-panel display and keypad with integrated industrial I/O and communication interfaces.

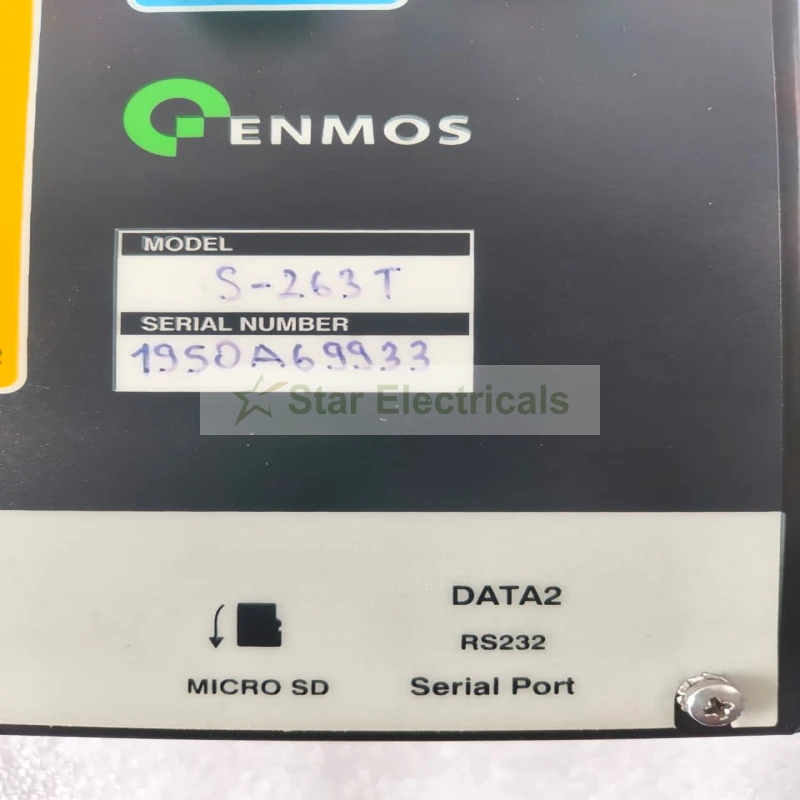

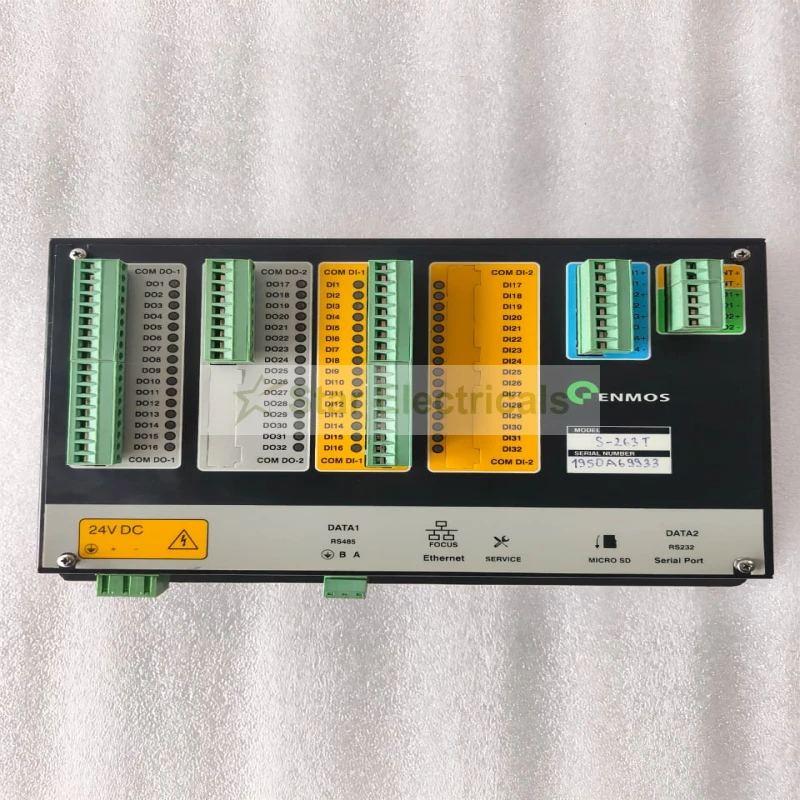

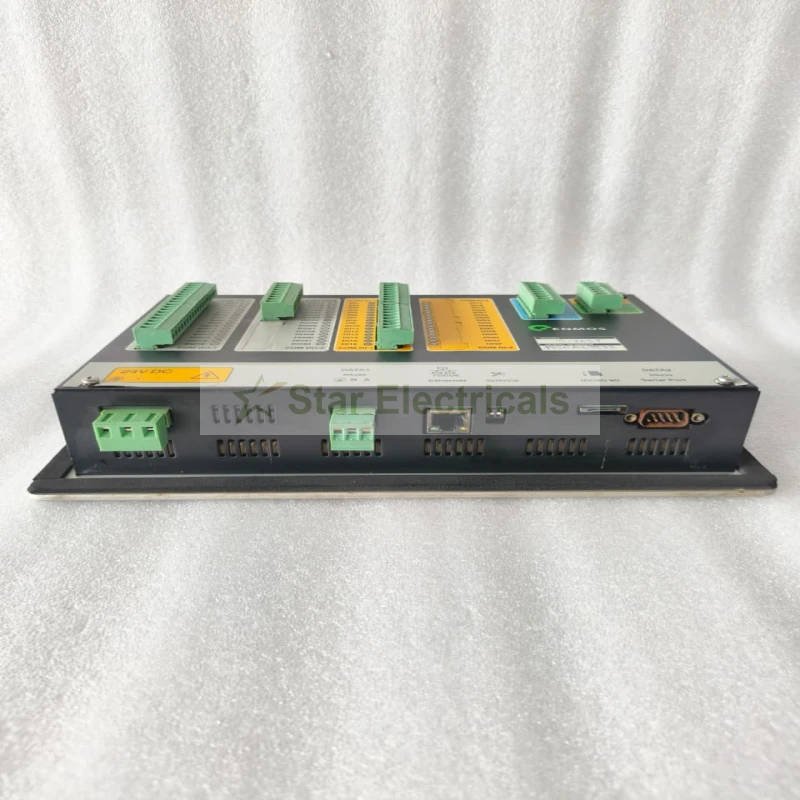

Based on the supplied photographs, this particular unit is configured for 24V DC operation and provides 32 digital inputs and 32 digital outputs, with clearly identified COM connections. The rear/connection panel also provides Ethernet, RS485 and RS232 communication interfaces, along with a Micro SD interface for data-related functions.

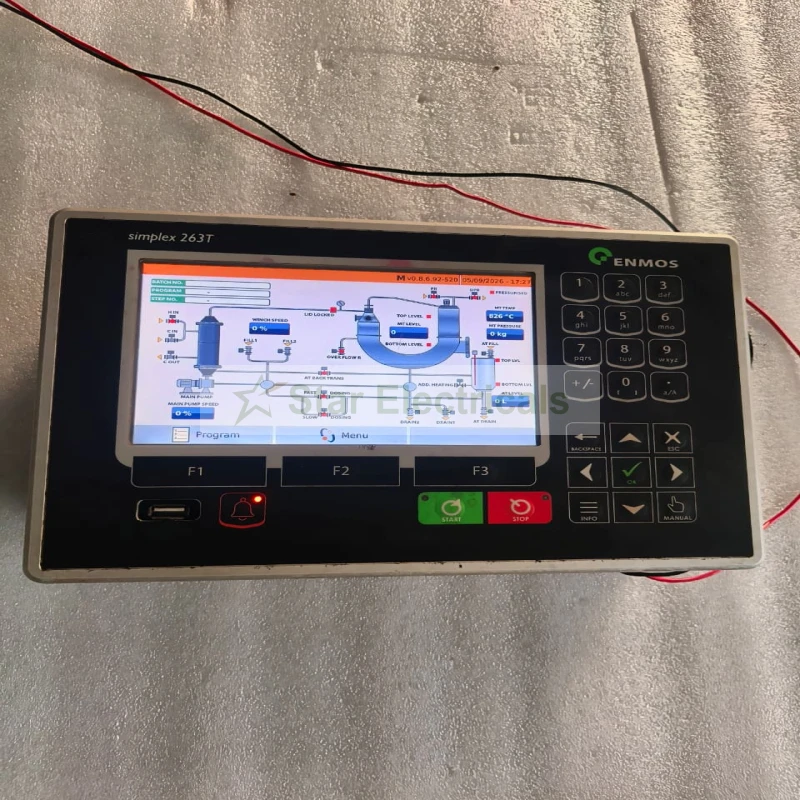

The SIMPLEX 263T features a dedicated operator interface with F1, F2 and F3 function keys, numeric keypad, navigation keys, OK/Enter, Backspace, ESC, Info and Manual controls, together with dedicated Start and Stop buttons. This makes it suitable for machine operators who require direct control and monitoring of industrial processes.
ENMOS SIMPLEX 263T units are associated with industrial and textile machinery control applications, and trade records also identify the SIMPLEX 263T as a control device and dyeing controller used in textile machinery.
