ERO Electronic LME496130000 Temperature Controller – 100/240 VAC, RTD/Thermocouple Input, SSR + Relay Output
Specification Details
Brand: ERO Electronic
Model: LME496130000
Product Type: Industrial Temperature Controller
Control Application: Temperature / Process Control
Supply Voltage: 100–240 VAC
Supply Frequency: 50/60 Hz
Maximum Supply Consumption: 9 VA
Input Type: RTD/Thermocouple configuration as marked

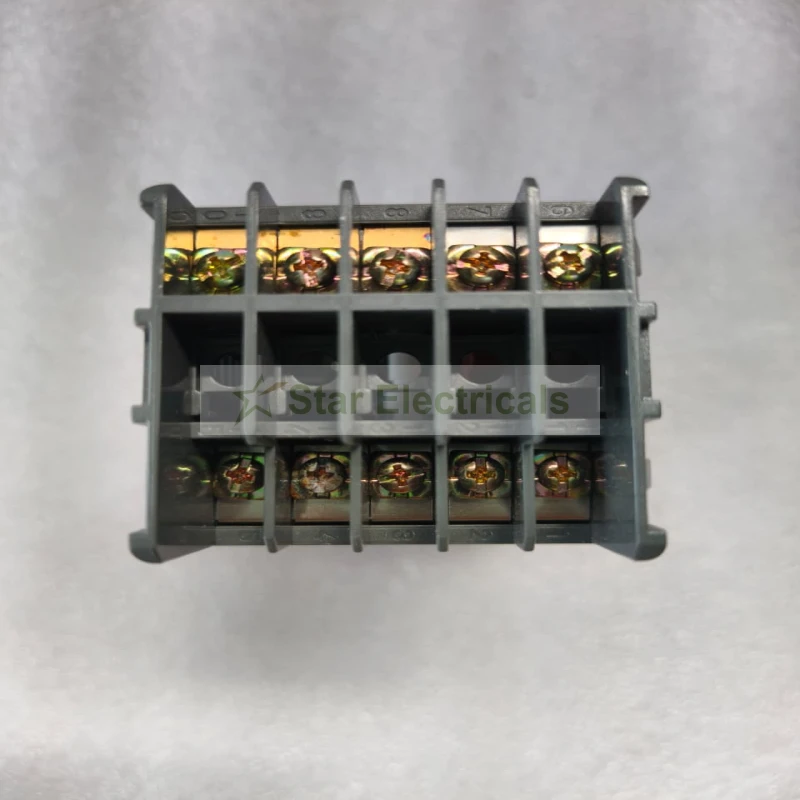

Input Terminals: 8, 9, 10
Output 1: SSR Class 2
Main SSR Terminals: 1, 2
Output 2: Relay
Relay Rating: 2A, 250 VAC
Relay Frequency: 50/60 Hz
Relay Load: Resistive Load
Relay Terminals: 6, 7
Power Line Terminals: 4, 5
Certifications/Marks: CE, UL Listed 2N66
Typical Applications: Industrial Heating, Process Control, Automation, Temperature Regulation
Country Of Origin: Made In ITALY

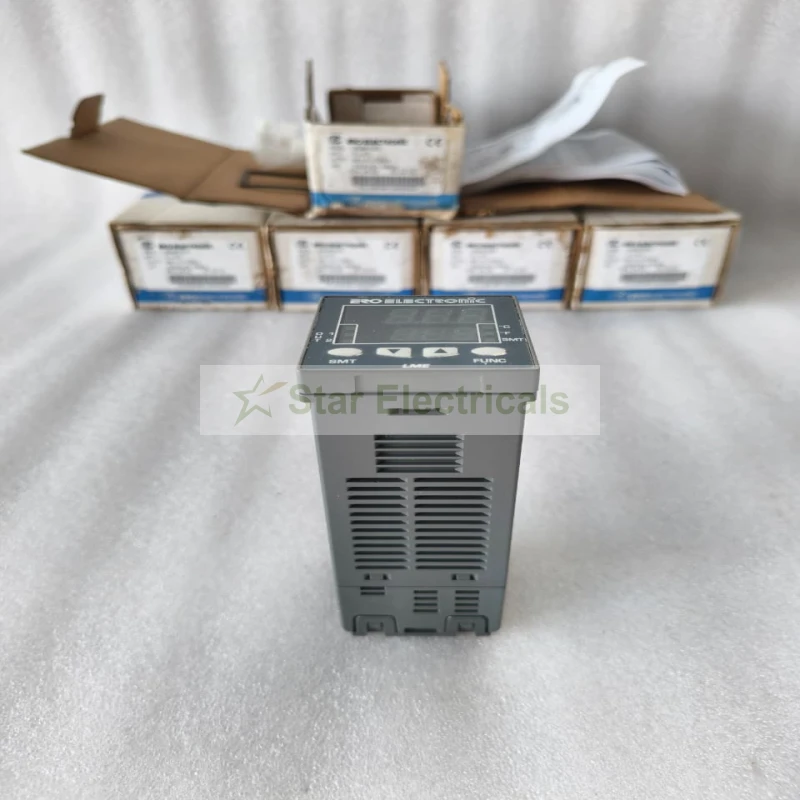

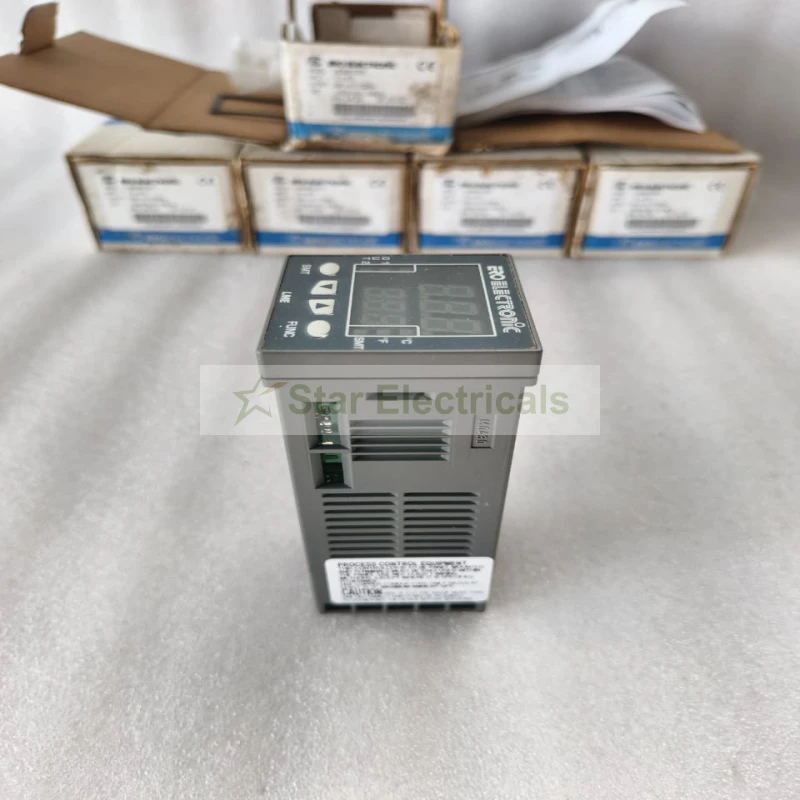

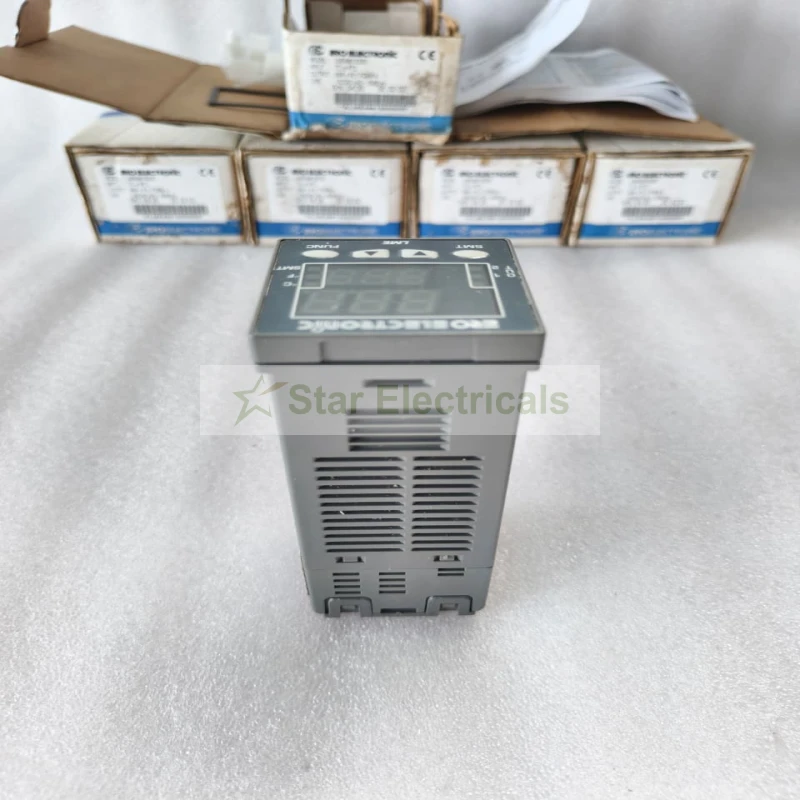

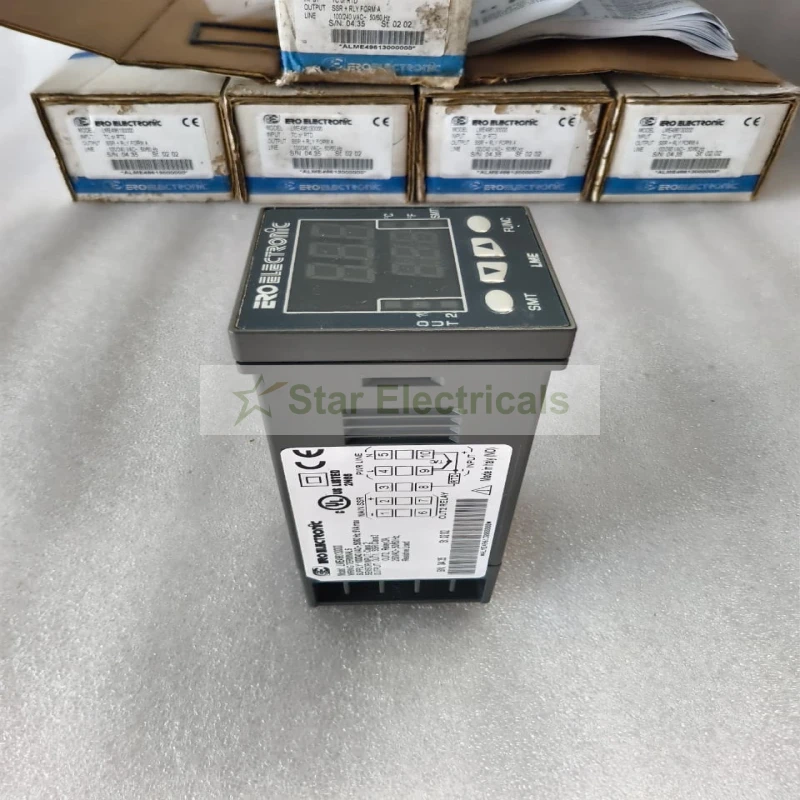

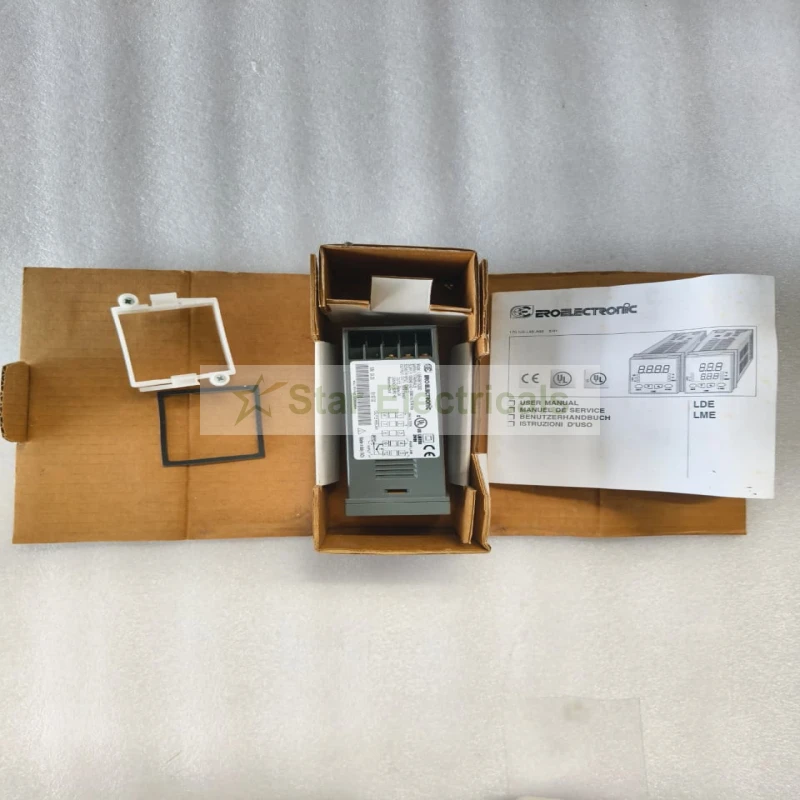

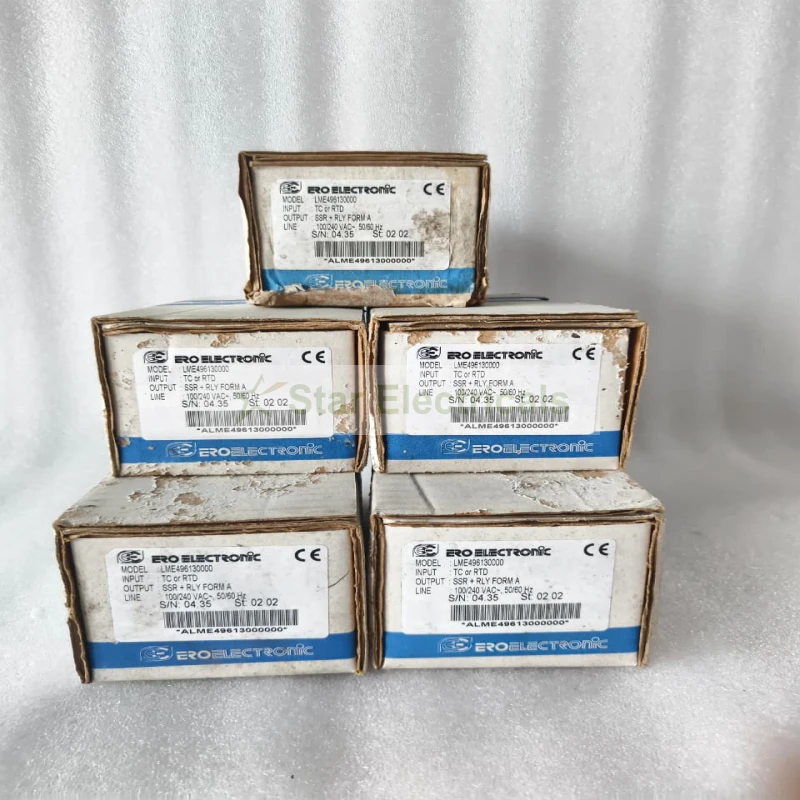

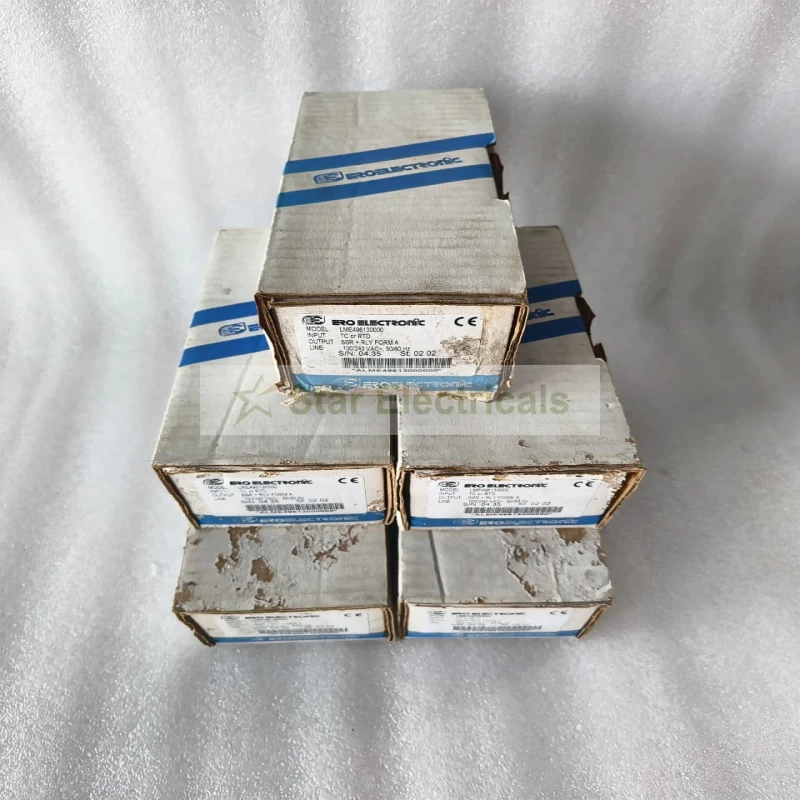

Condition: New With Box (As Per Photos)
Shipping: Fast & Safe Worldwide Shipping Available.
The ERO Electronic LME496130000 Temperature Controller is an industrial temperature control device designed for reliable monitoring and regulation of temperature in automation and process-control systems. The unit supports a 100–240 VAC power supply at 50/60 Hz with a maximum consumption of 9 VA.

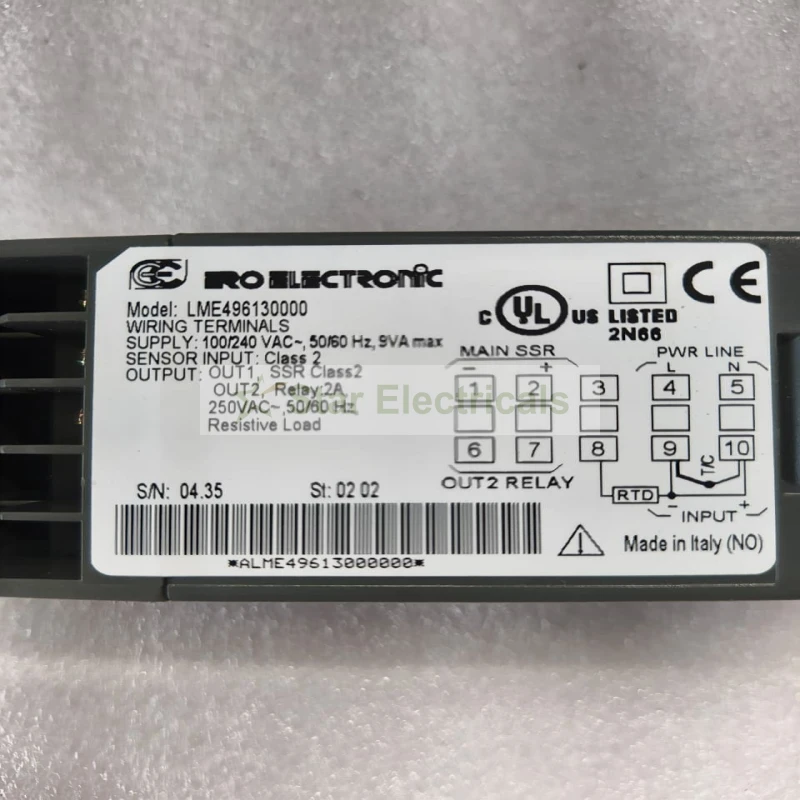

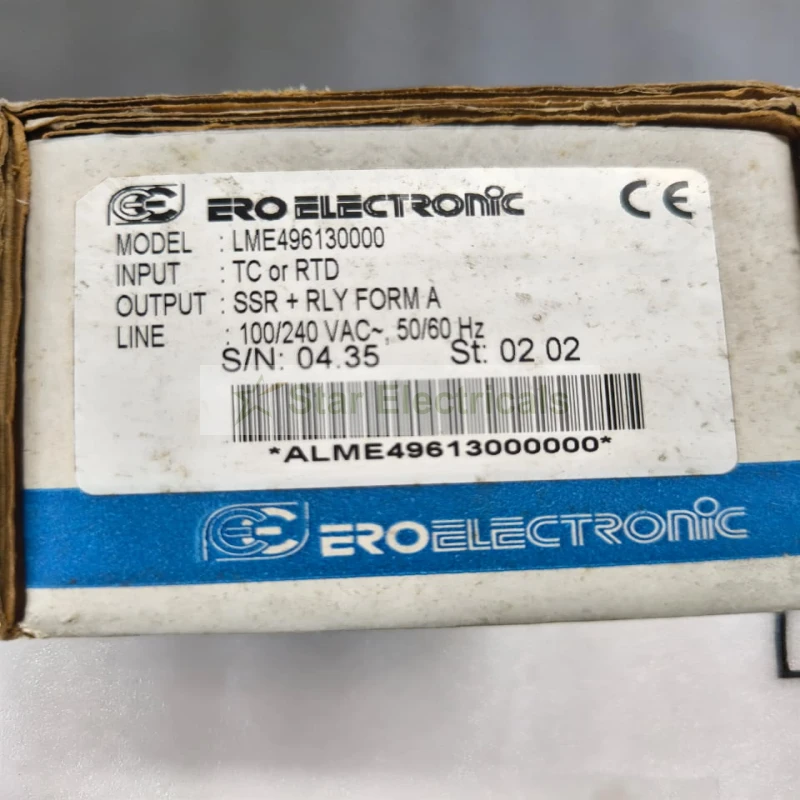

According to the manufacturer's wiring information shown on the unit, the controller provides an SSR Class 2 output (OUT1) for solid-state control and a 2A relay output (OUT2) rated at 250 VAC, 50/60 Hz for resistive loads. The sensor input terminals are provided for temperature sensing, including the RTD/TC connection configuration shown on the product label.
The LME496130000 is particularly suitable for industrial heating and temperature regulation equipment where dependable switching and temperature feedback are required. The product is marked CE and UL Listed 2N66 and carries a Made in Italy marking.
The exact model number LME496130000 is also independently listed by industrial automation distributors as an ERO Electronic temperature controller.
