FESTO CPV10-GE-MP-8 CPV10-VI Compact Performance Pneumatic Valve Terminal, 8-Position, 24V DC
Specification Details
Manufacturer: Festo
Product Family: CPV Compact Performance

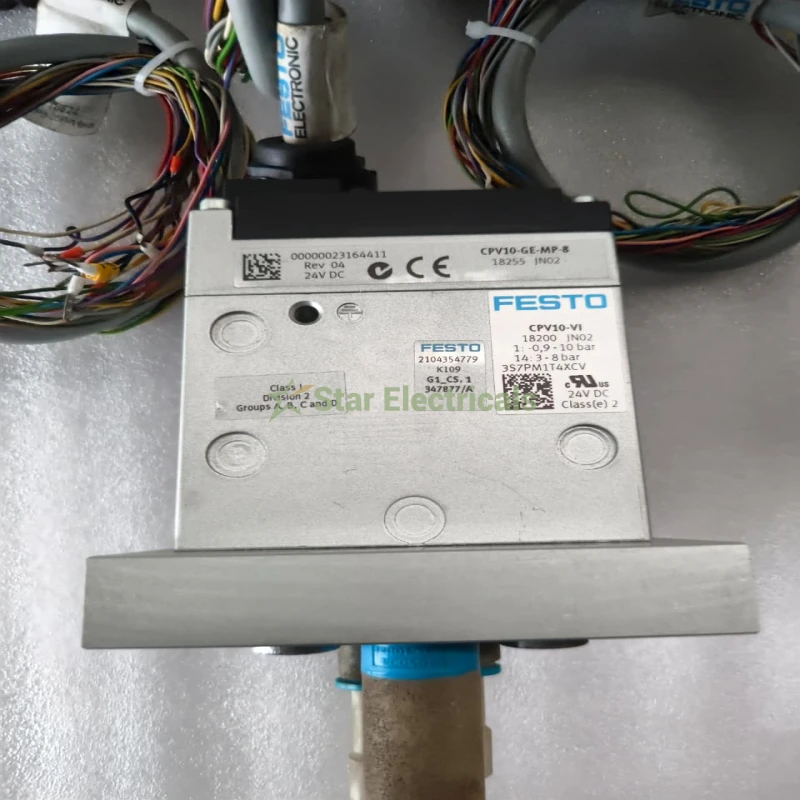

Model: CPV10-GE-MP-8
Valve Terminal Type: CPV10-VI
Part Number: 18200 – CPV10-VI
Configuration: CPV10-GE-MP-8
Electrical Voltage: 24 V DC
Electrical Control: Multi-pin / electrical interface

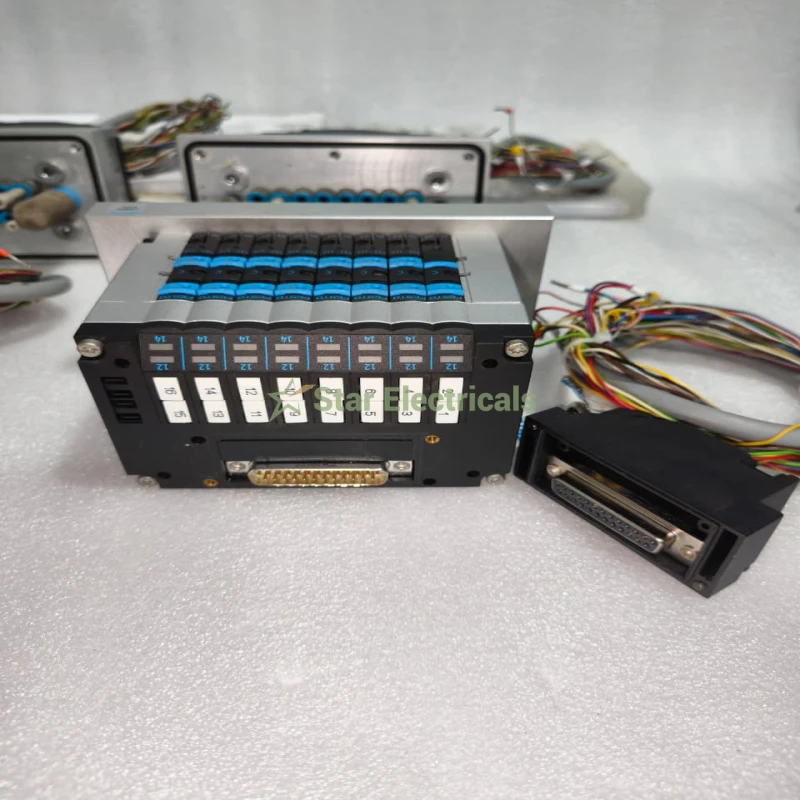

Valve Positions: Maximum 8
Maximum Valve Functions: 16
Valve Size : 10 mm
Nominal Size: 4 mm
Operating Pressure: -0.9 to 10 bar
External Pilot Air Range: 0 to 8 bar
Pilot Pressure: 3 to 8 bar
Standard Nominal Flow: Up to 400 l/min
Operating Medium: Compressed air
Ambient Temperature: -5°C to +50°C
Media Temperature: -5°C to +50°C
Storage Temperature: -20°C to +40°C
Protection Rating: IP65
Actuation: Electrical
Valve Construction: Piston gate valve
Sealing Principle: Soft
Mounting: Modular valve-terminal mounting

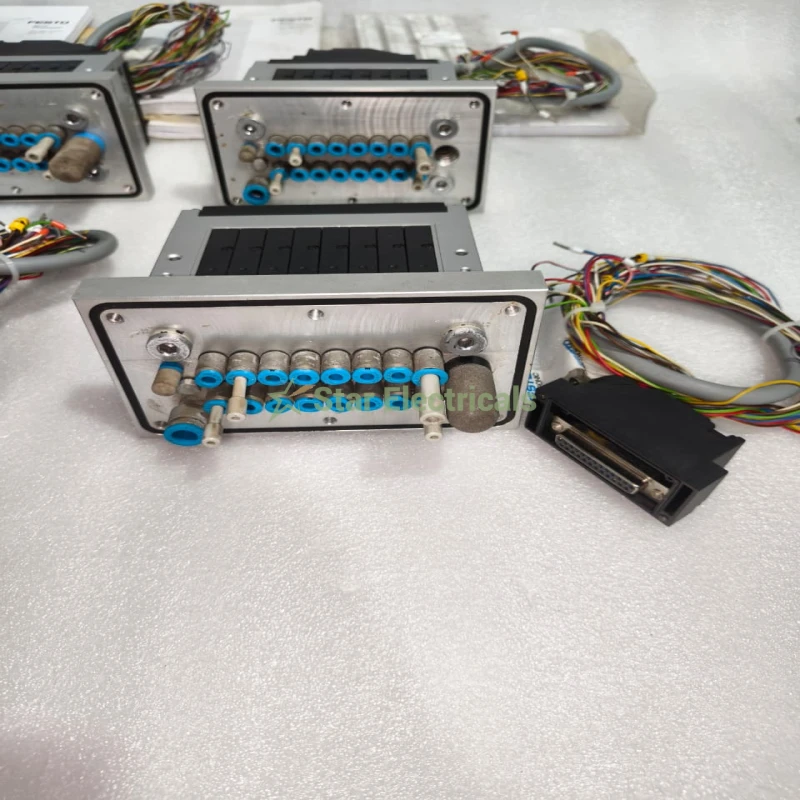

Pneumatic Connection Options: M7 / QS fittings depending on configuration
Vacuum Suitability: Yes
Certifications/Approvals: CE, UKCA, RCM, cULus; selected configurations also support hazardous-area approvals
Application: Industrial pneumatic automation
Country Of Origin: Made In GERMANY

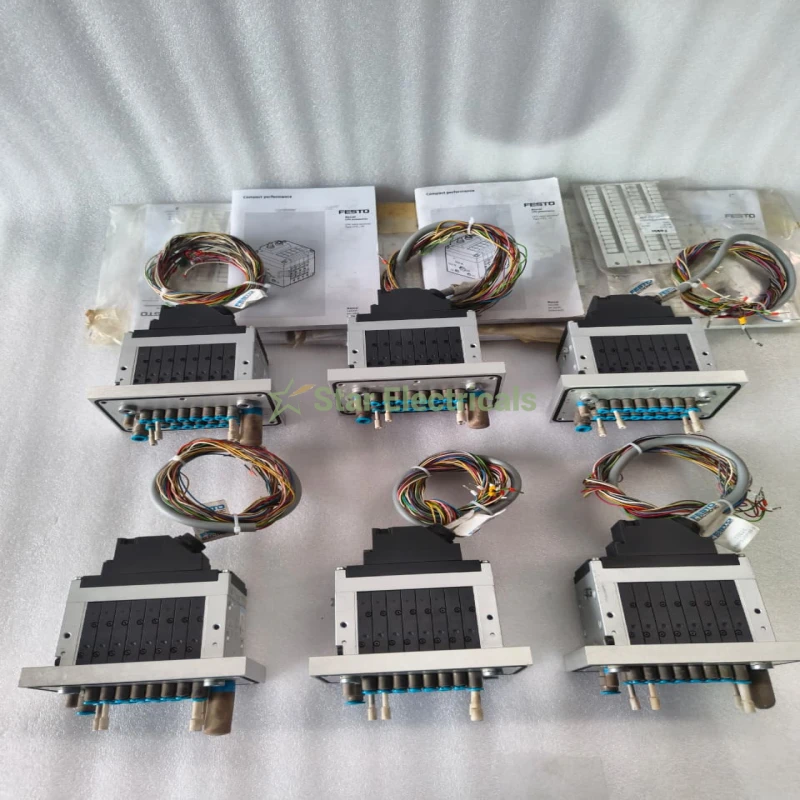

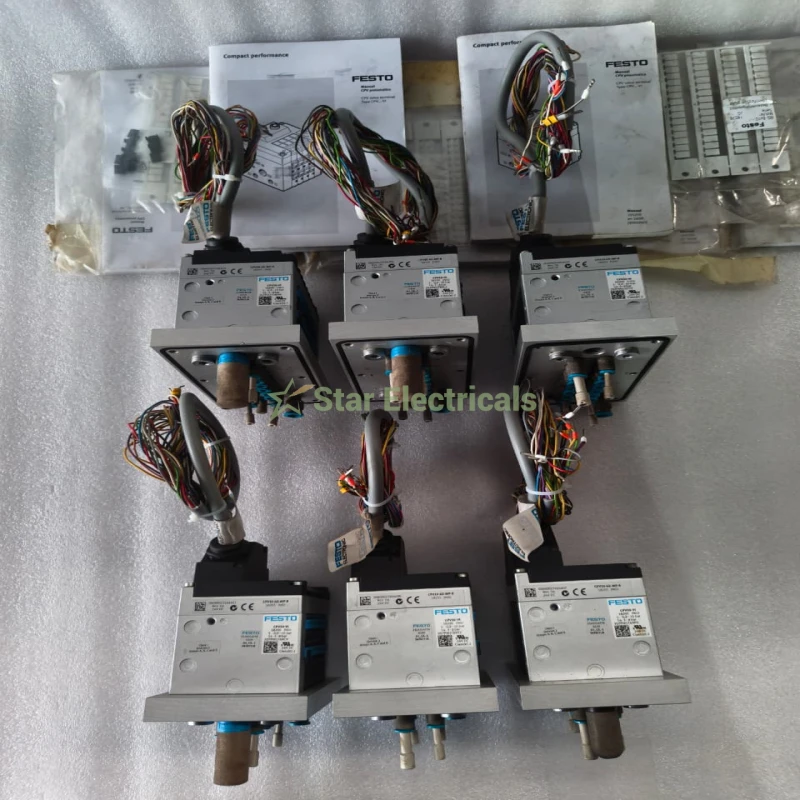

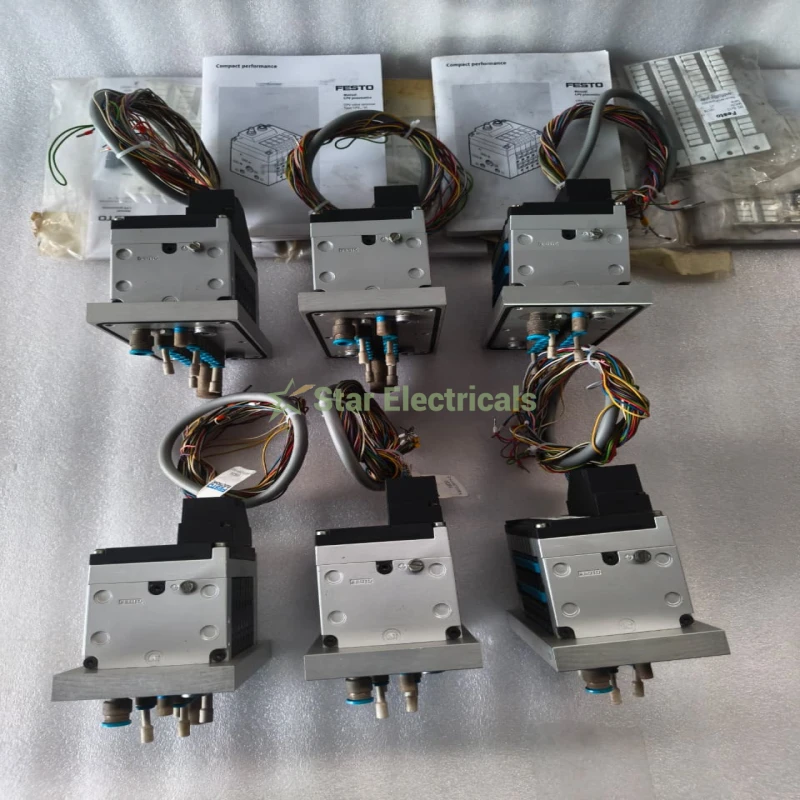

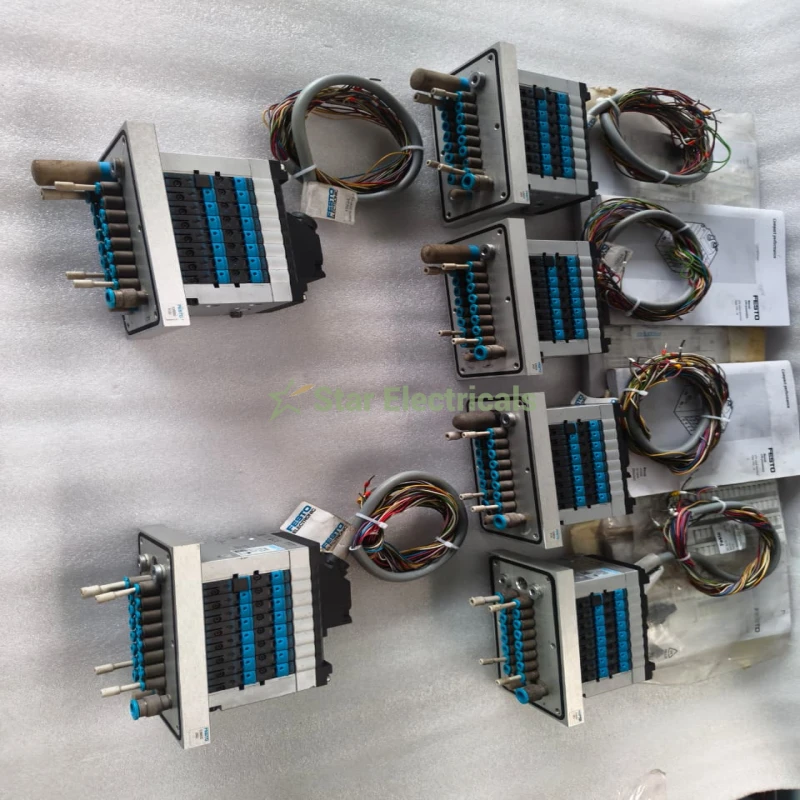

Condition: Used Excellent Working (As Per Photos)
Shipping: Fast & Safe Worldwide Shipping Available.
The Festo CPV10-GE-MP-8 CPV10-VI Compact Performance Valve Terminal is a compact modular pneumatic valve terminal designed for efficient control of pneumatic actuators and automation equipment. The CPV10-VI platform uses a space-saving 10 mm valve design and can accommodate up to 8 valve positions and 16 valve functions, depending on the selected configuration.
The pictured unit features a 24 V DC electrical interface and is designed for integration into industrial automation systems where multiple pneumatic valves need to be controlled from a centralized valve terminal. The CPV series is designed to reduce wiring, installation effort and overall pneumatic-system footprint.
The CPV10-VI supports compressed-air operation with an operating-pressure range of approximately -0.9 to 10 bar, while external pilot air can be used for operation within specified pressure conditions. Festo specifies a maximum standard nominal flow rate of 400 l/min for the 10 mm valve size.
Its compact construction makes it suitable for applications including factory automation, packaging machinery, material handling, assembly machines, production equipment, robotics and pneumatic actuator control.
