KEYENCE CA-DC30E LumiTrax™ Dedicated LED Illumination Controller, 2-Channel, 24VDC, 81W
Specification Details
Brand: KEYENCE
Model: CA-DC30E
Product Type: Dedicated LED Illumination Controller
Series: CA-D Series / LumiTrax™
Application: Industrial Machine Vision Lighting
Compatible Vision Systems: XG / CV-X200 / CV-X100 Series
Compatible Lights: CA-DRW□X Series
Control Method: Constant Current Control
Intensity Adjustment: 255-Level Digital
Number of Channels: 2 Channels
Connector Dedicated: 6-Pole Circular Connector
Lighting Capacity: Maximum 81 W
Power Supply: 24 VDC ±10%
Maximum Current Consumption: 5 A at maximum load
Controller Consumption: 1.6 A
Synchronization: Camera Trigger / Shutter Speed
Response Speed: 1 ms or less
Display: LED
Status Indication: Power and individual 2-channel lighting status
Operating Temperature: 0 to +50°C
Relative Humidity: 85% RH or less, non-condensing
Weight: Approx. 430 g
Manufacturer: KEYENCE Corporation
Country Of Origin: Made In Japan
Condition: Used Excellent Working (As Per Photos)
Shipping: Fast & Safe Worldwide Shipping Available.
The KEYENCE CA-DC30E is a dedicated LumiTrax™ LED illumination controller engineered for reliable lighting control in industrial machine vision systems. It provides stable constant-current control for compatible KEYENCE LED lighting and is designed for use with XG, CV-X200 and CV-X100 series vision systems.

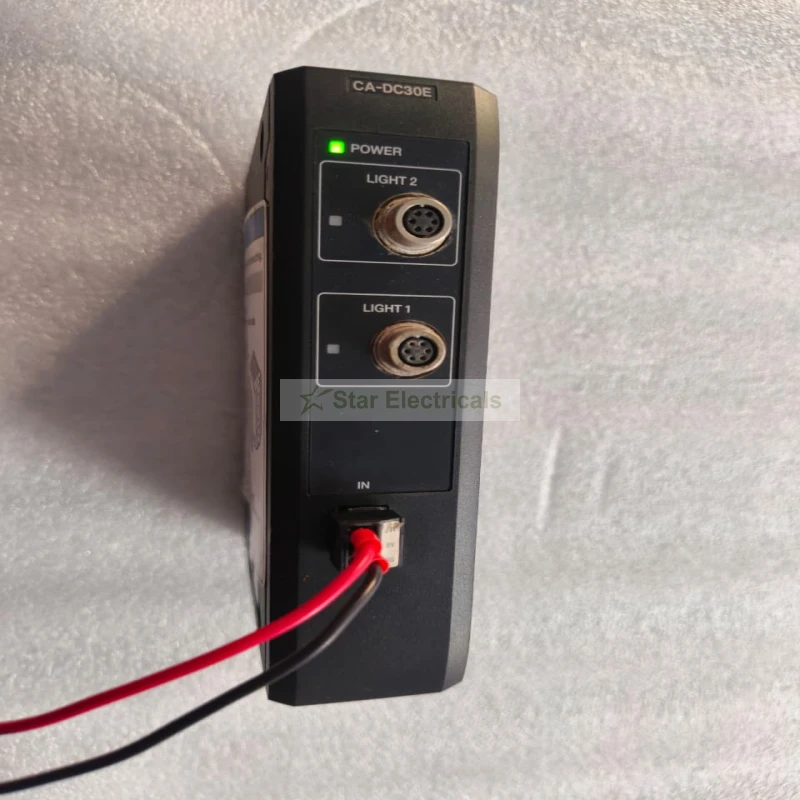

The CA-DC30E provides two lighting control channels using dedicated 6-pole circular connectors and supports up to 81 W of lighting capacity. Illumination intensity can be digitally adjusted across 255 levels, allowing precise control of lighting conditions for demanding inspection applications.
For high-speed machine vision operations, the controller supports synchronization with the camera's trigger and shutter speed, with a response time of 1 ms or less. The controller operates on 24 VDC ±10% and can draw up to 5 A at maximum load.
The KEYENCE CA-DC30E is particularly suitable for applications requiring repeatable, controlled illumination, including automated inspection, dimensional measurement, surface inspection, defect detection and other industrial vision processes.
