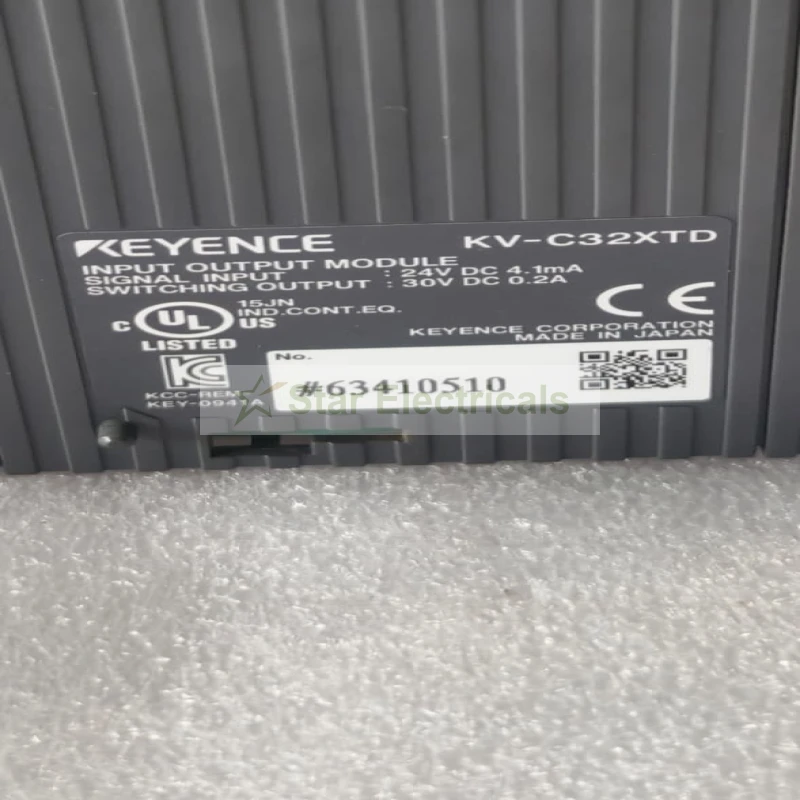

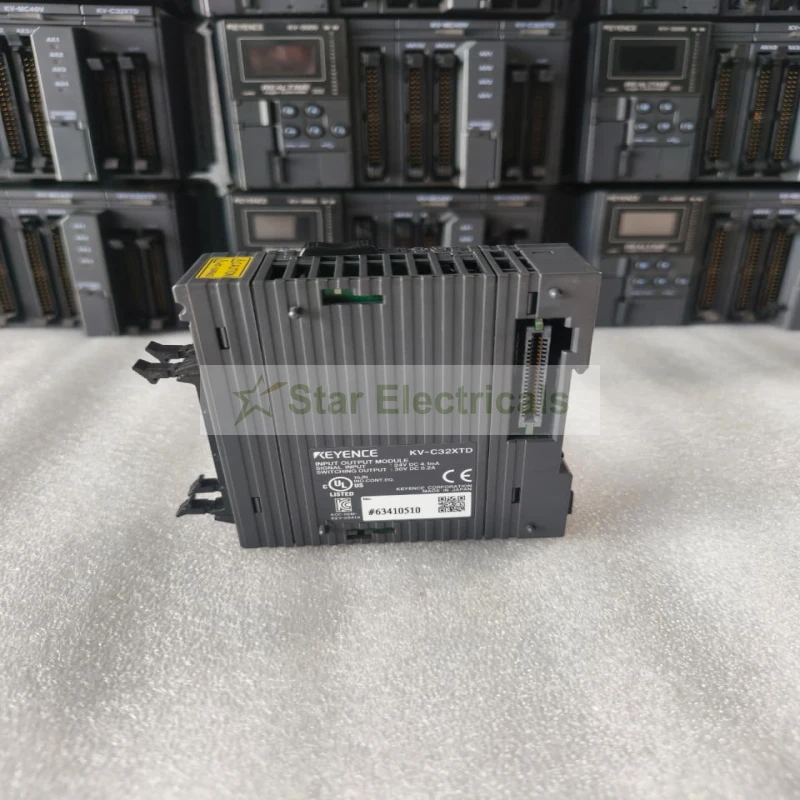

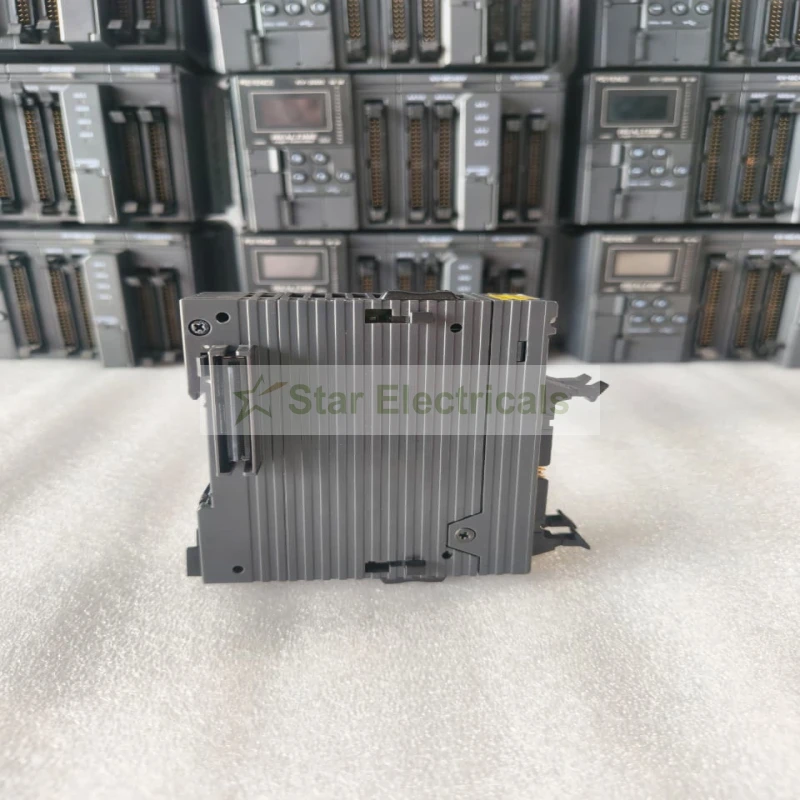

KEYENCE KV-C32XTD PLC I/O Module – 32-Point 24VDC Input / 32-Point MOSFET Sink Output Expansion Unit
Specification Details
Brand: KEYENCE
Model Number: KV-C32XTD
Product Category: PLC I/O Expansion Module
Unit Type: I/O Unit
Total I/O: 64 Points
Digital Inputs: 32 Points
Input Mode: 24 VDC
Rated Input Voltage: 24 VDC, 4.1 mA
Maximum Input Voltage: 26.4 VDC
Minimum ON Voltage: 19 V
Maximum OFF Current: 1.5 mA
Input Impedance: 5.6 kΩ
Digital Outputs: 32 Points
Output Technology: MOSFET, N-Channel, Sink
Output Protection: Overcurrent Protection
Rated Output Load: 30 VDC, 0.2 A
OFF Leakage Current: ≤100 µA
ON Residual Voltage: ≤0.5 V
Connection Method: MIL-Standard Connector
Input Time Constant: 25 µs / 300 µs / 1 ms / 10 ms
OFF → ON Response: ≤150 µs
ON → OFF Response: ≤300 µs
Internal Current Consumption: ≤65 mA
Approx. Weight: 130 g
Country Of Origin: Made In JAPAN
Condition:Used Excellent Working (As Per Photos)
Shipping: Fast & Safe Worldwide Shipping Available.
The KEYENCE KV-C32XTD is a high-density PLC digital I/O expansion unit designed for industrial automation and machine-control applications. It provides 32 digital inputs and 32 digital outputs in a compact I/O module, making it suitable for systems requiring a high number of field input and output points.
The module features 24 VDC input operation with a rated input voltage of 24 VDC and an input impedance of 5.6 kΩ. Its 32 outputs use N-channel MOSFET sink technology and include an overcurrent protection function, providing reliable switching for industrial control loads.
The KV-C32XTD uses a MIL-standard connector interface for external connections and supports fast I/O response, with an OFF-to-ON operating time of up to 150 µs and ON-to-OFF time of up to 300 µs. This makes it well suited for automated machinery, production equipment, material handling systems, sensor interfaces, actuator control and other PLC-based applications.
Its combination of 64 total I/O points, 24 VDC inputs, MOSFET sink outputs and overcurrent protection makes the KEYENCE KV-C32XTD a practical choice for expanding digital I/O capacity in compatible KEYENCE PLC control systems.
