KEYENCE XG-7701 Multi-Camera Imaging System / Machine Vision Controller, XG-7000 Series, 5 Megapixel Support
Specification Details
Brand: KEYENCE
Model: XG-7701
Series: XG-7000 Series
Product Type: Multi-Camera Imaging System / Controller
Application: Industrial Machine Vision / Image Processing
Camera Support: Color & Monochrome
Maximum Camera Configuration: Up to 4 cameras with XG-E700 expansion unit
Maximum Supported Resolution: Approx. 4.99 Megapixels with compatible XG-H500C/H500M
5 MP Resolution: 2432 × 2050 pixels, approx. 4.99 MP
2 MP Resolution: 1600 × 1200 pixels, approx. 1.92 MP
1 MP Resolution: 1024 × 960 pixels, approx. 980,000 pixels
Image Processor: High-Speed DSP
SD Card Slots: 2
Monitor Output: Analog RGB, SVGA 800 × 600
USB: Available
Serial Interface: RS-232C
Ethernet: Available
Power Supply: 24 VDC ±10%
Current Consumption: Approx. 2.4 A with 2 cameras / 3.2 A with 4 cameras
Operating Temperature: 0 to +50°C with 2 cameras; up to 0 to +45°C with 4 cameras
Operating Humidity: 35–85% RH, non-condensing
Approx. Weight: 1.25 kg
Display Languages: Japanese, English, Simplified Chinese, Traditional Chinese, German
Country Of Origin: Made In Japan
Condition: Used Excellent Working (As Per Photos)
Shipping: Fast & Safe Worldwide Shipping Available.
The KEYENCE XG-7701 is a high-speed, high-capacity multi-camera machine vision controller from the KEYENCE XG-7000 Series. It is designed for advanced industrial inspection applications requiring high-speed image acquisition, image processing, measurement and automated quality control.
The XG-7701 supports compatible color and monochrome cameras and can handle camera configurations up to four cameras with the appropriate expansion unit. The controller is specifically capable of supporting 5-megapixel camera operation, making it suitable for detailed inspection of components, surfaces, printed materials, assemblies and other industrial products.
The controller provides practical industrial connectivity through Ethernet, RS-232C and USB, along with monitor output and SD card storage. Ethernet functionality can be used for PLC communication, FTP/network applications and remote operation depending on system configuration.

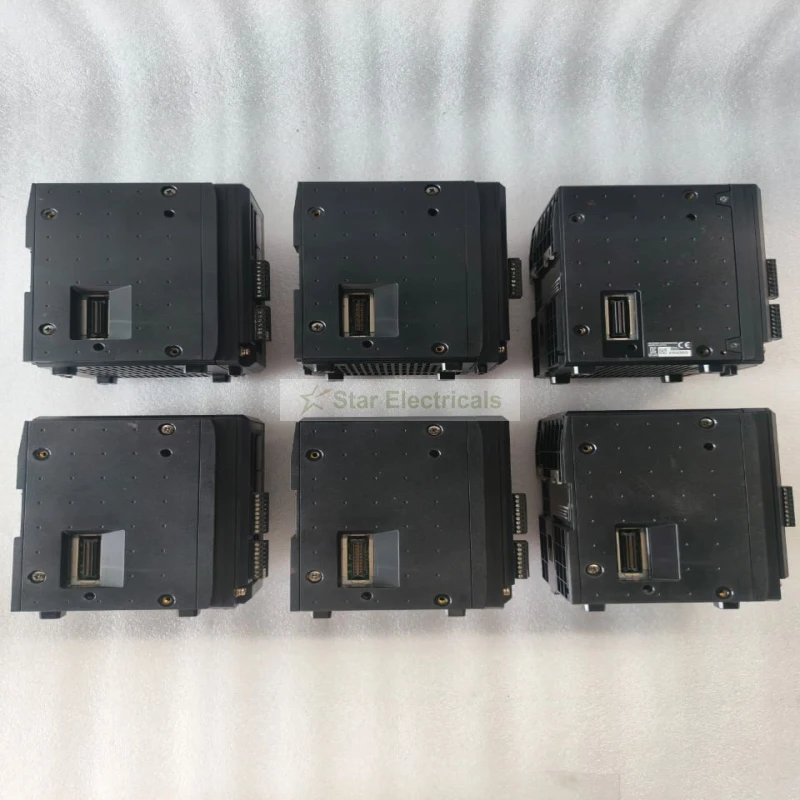

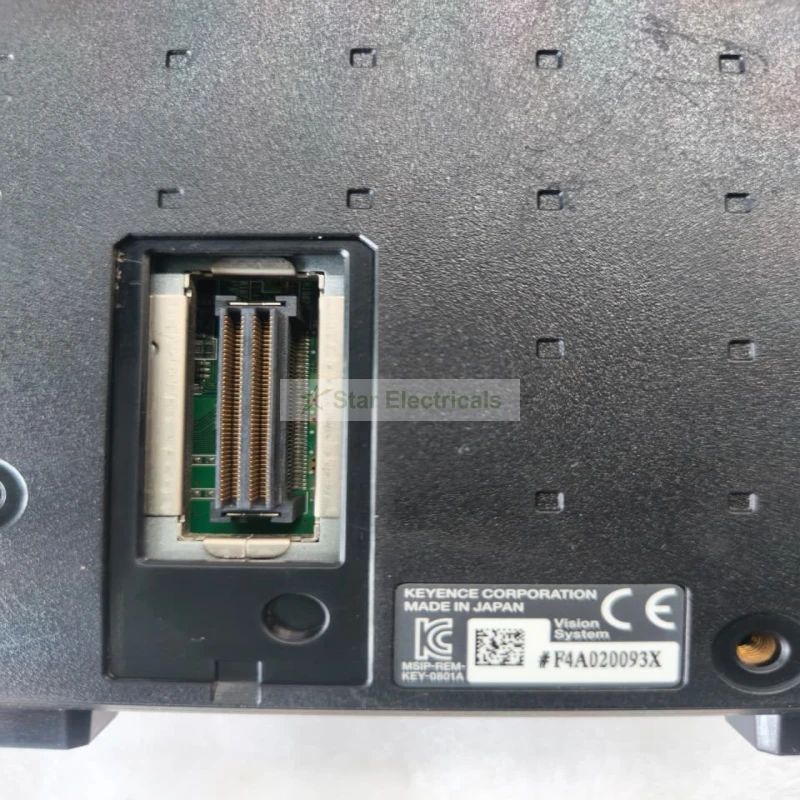

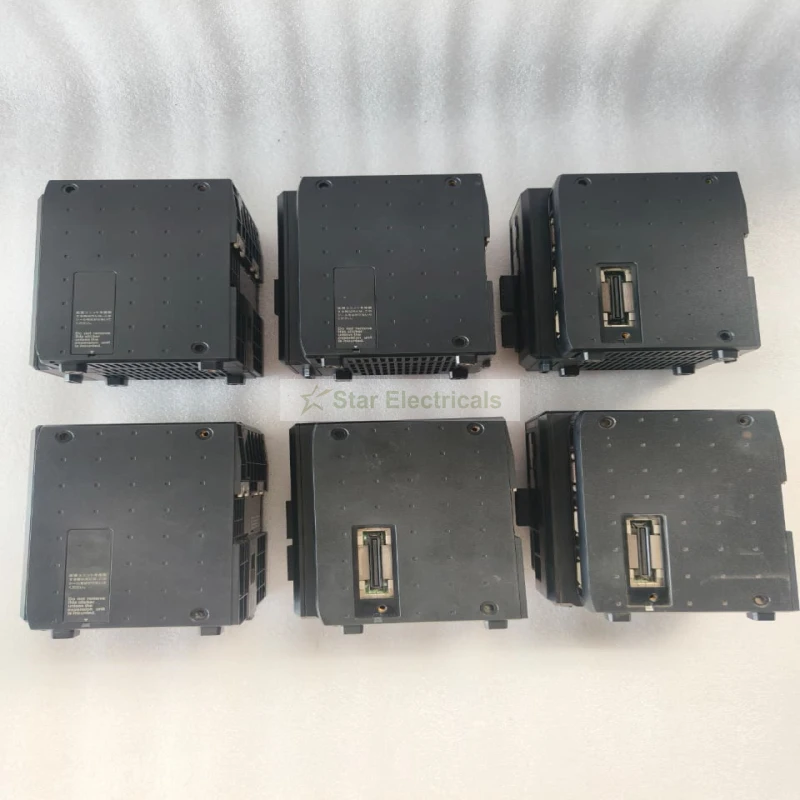

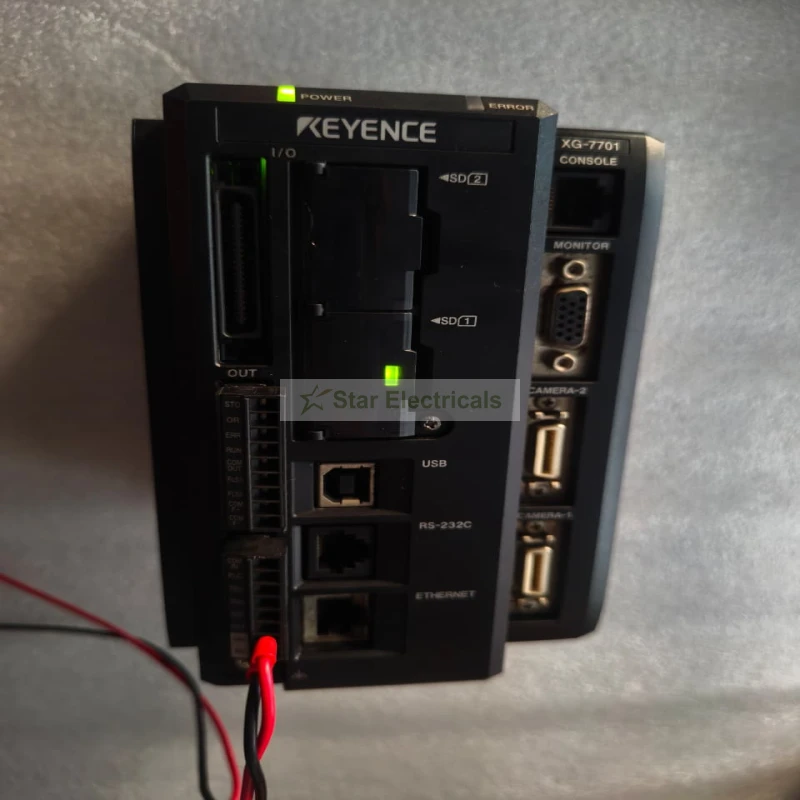

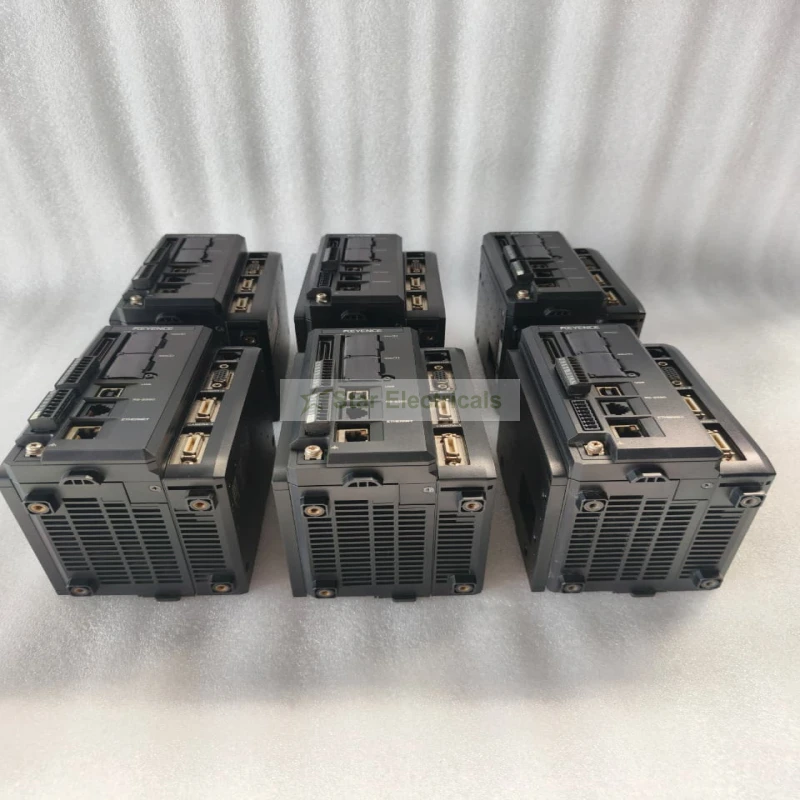

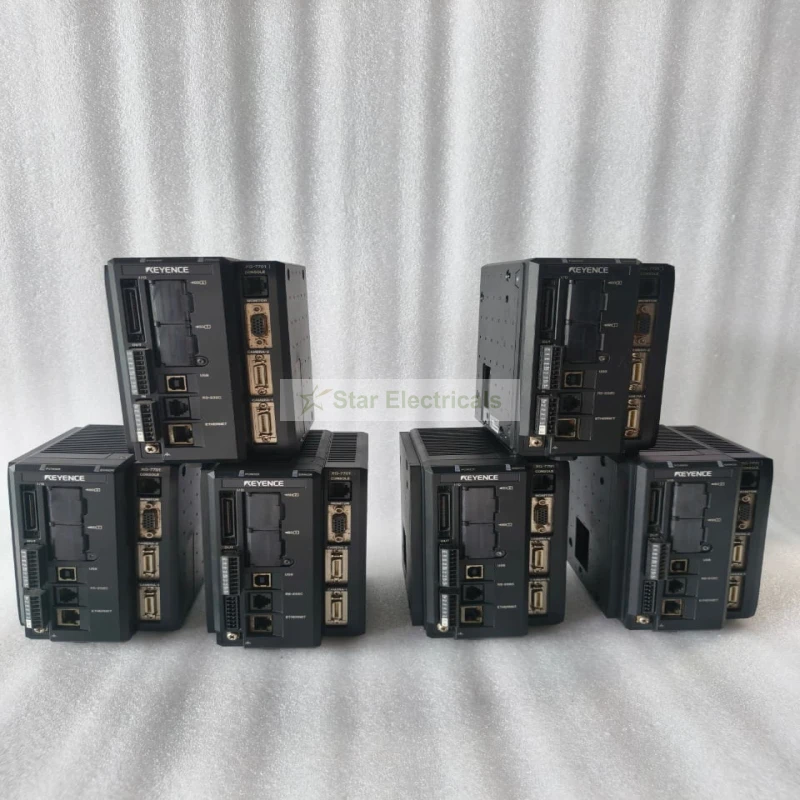

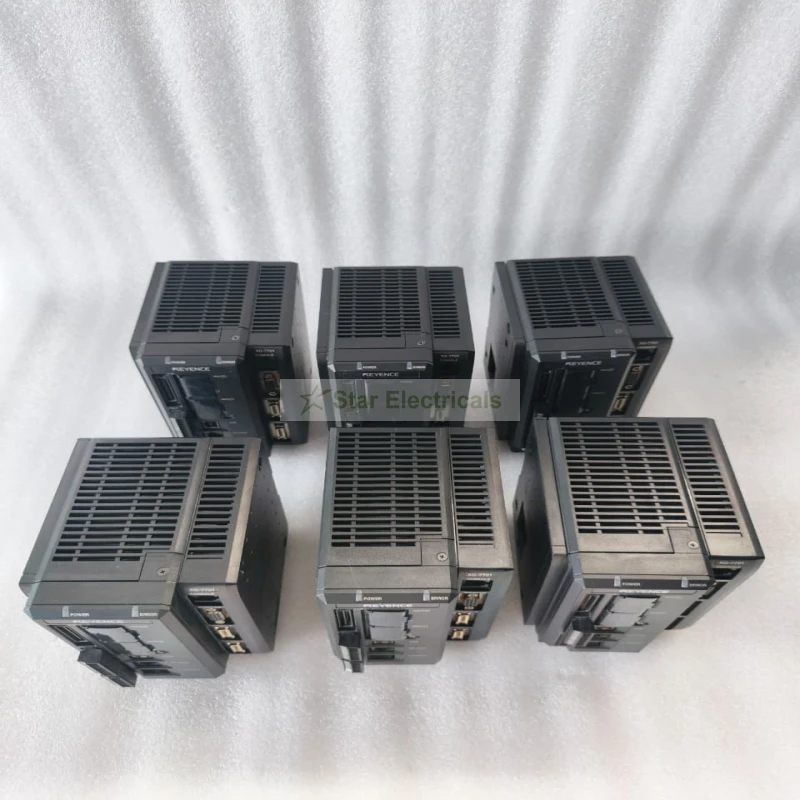

The unit shown in the supplied images is marked KEYENCE XG-7701 and has SD1/SD2 slots, USB, RS-232C, Ethernet and camera/I/O interfaces visible on the controller.
