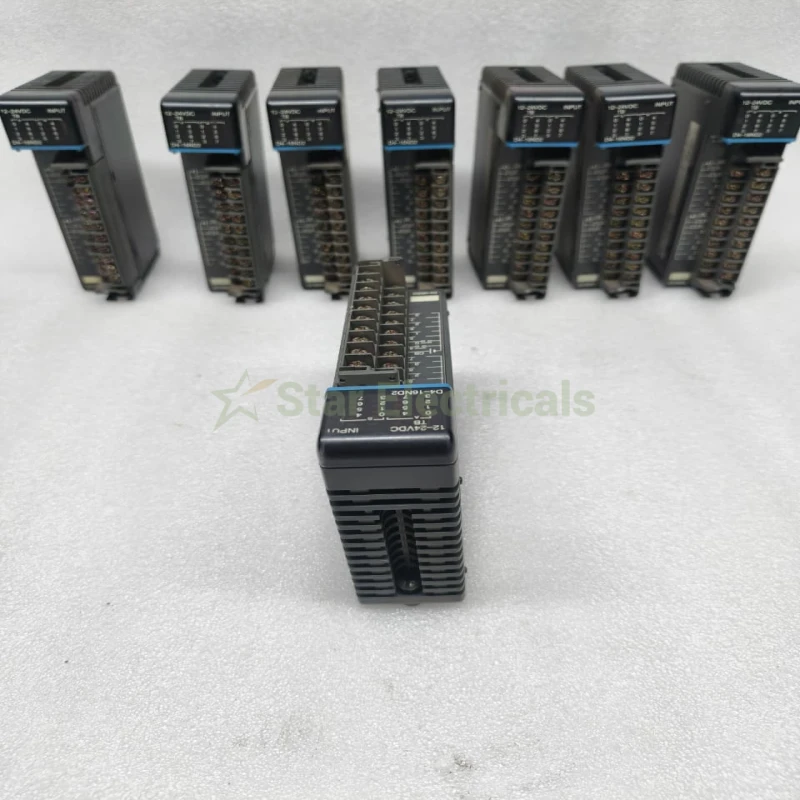

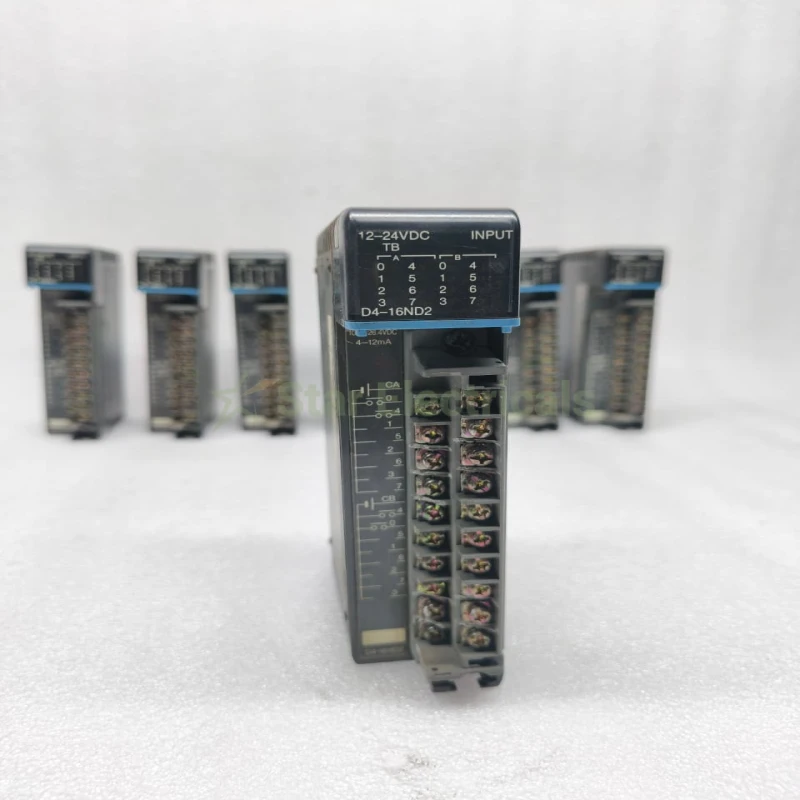

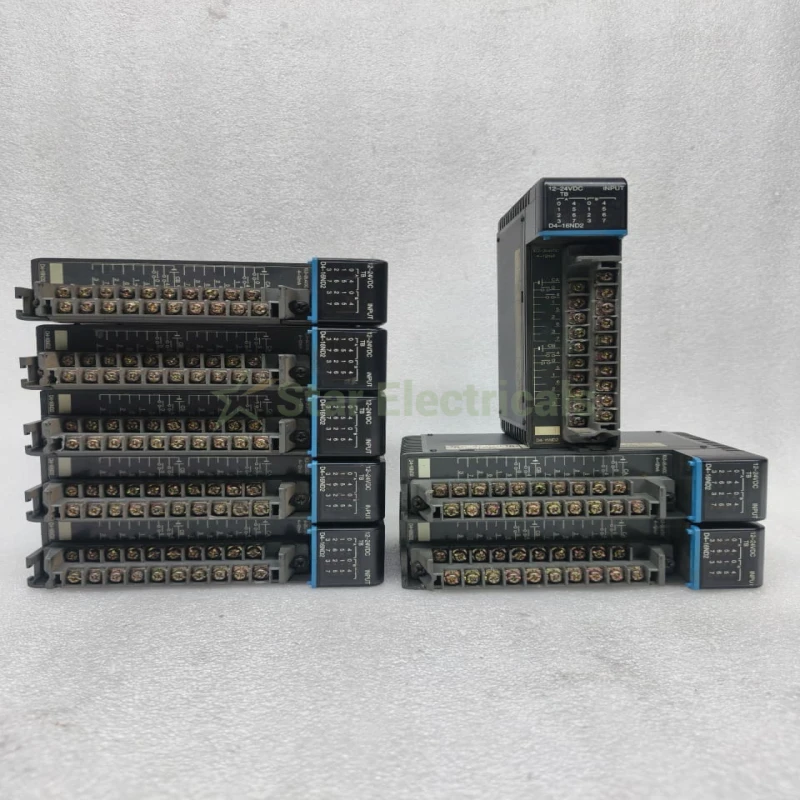

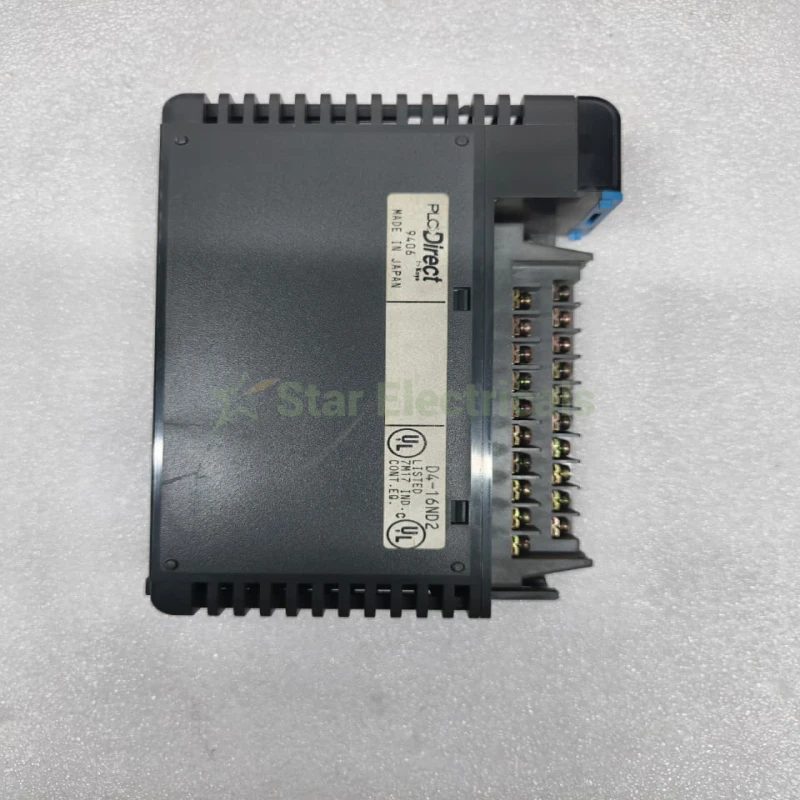

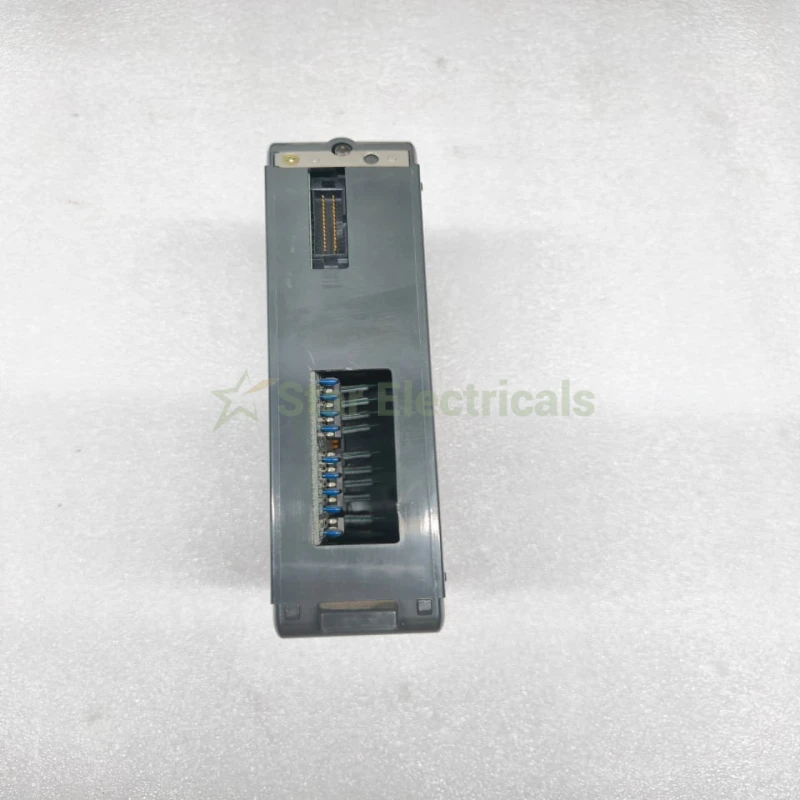

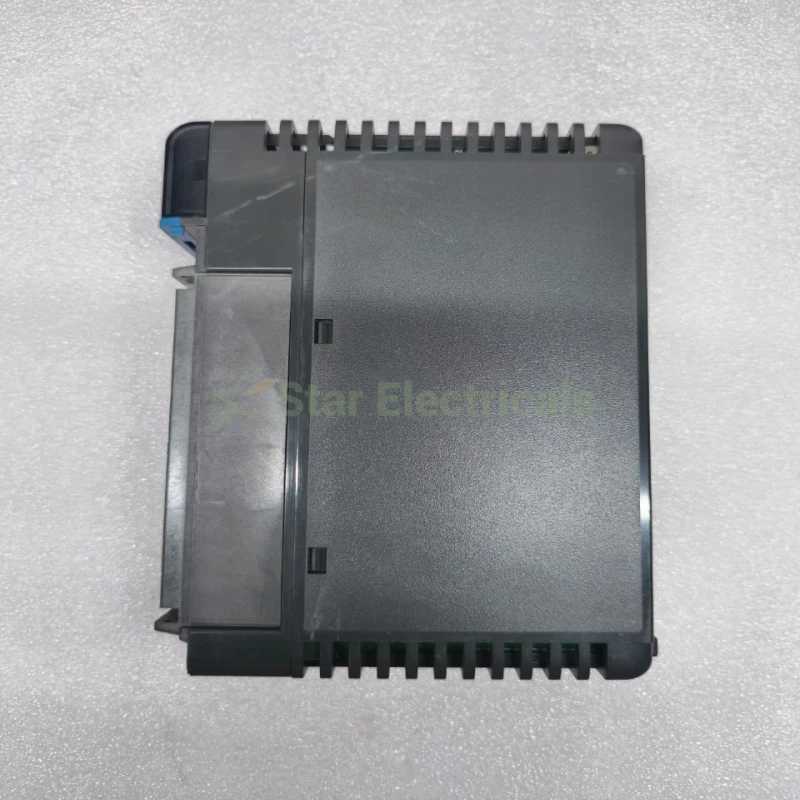

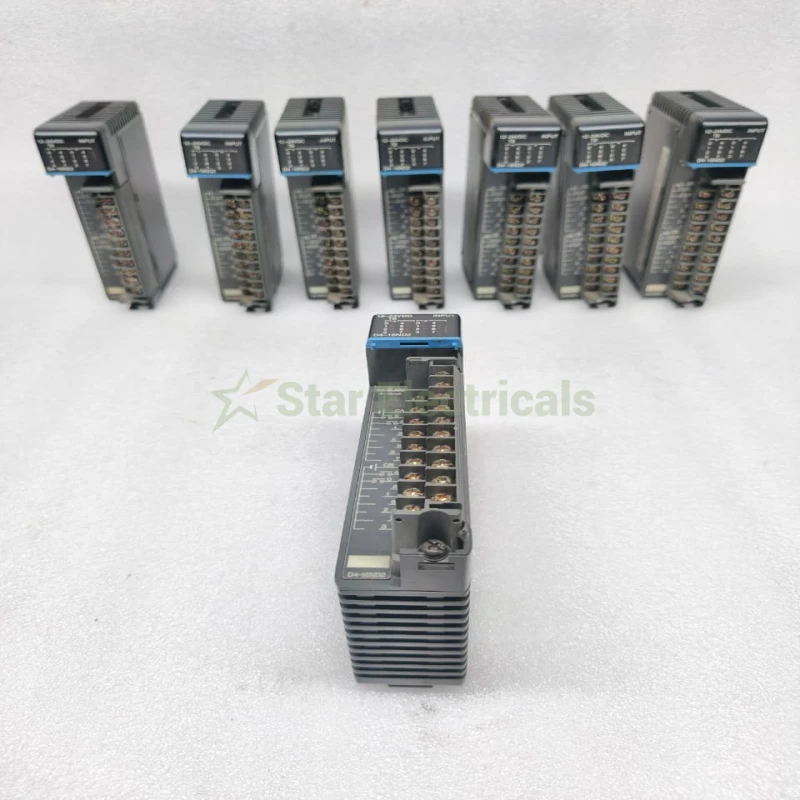

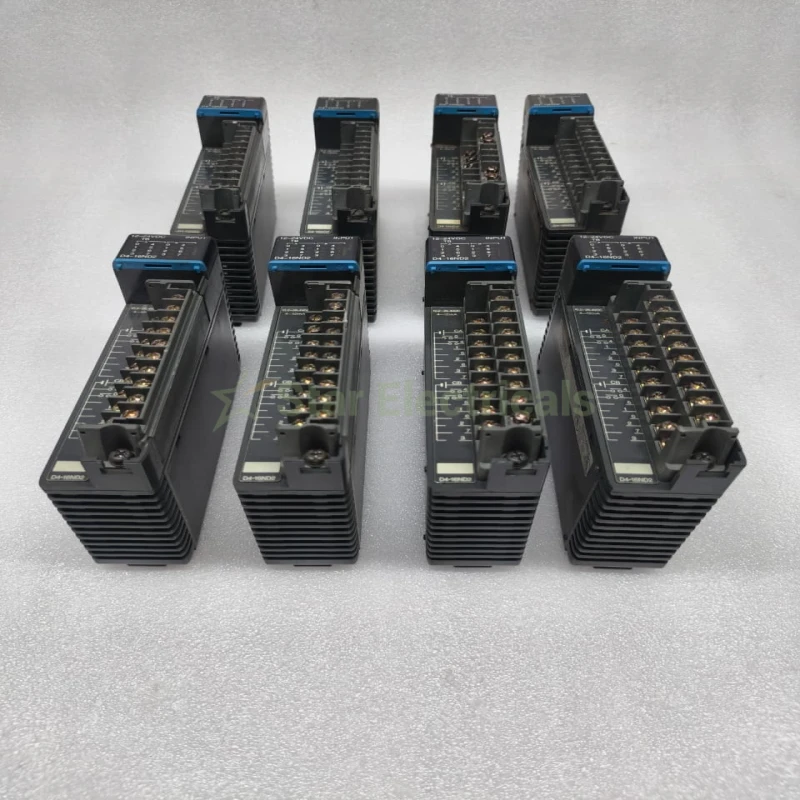

Koyo D4-16ND2 DirectLOGIC DL405 16-Point DC Discrete Input Module

Name: Koyo D4-16ND2 DirectLOGIC DL405 16-Point DC Discrete Input Module
Brand: OTHER
SKU: 1764
Availability: InStock

Pricing Status

USED

Specification Details
Brand: KOYO
Series: DirectLOGIC 405 (DL405)
Input Type: Current Sourcing / NPN
Part Number: D4-16ND2
Product Type: 16-Point DC Discrete Input Module
Input Current: 3.8 mA @ 12 VDC / 8.3 mA @ 24 VDC
Input Impedance: 3.2 KΩ @ 12 VDC / 2.9 KΩ @ 24 VDC
Base Power Consumed: 150 mA max at 5 VDC from base backplane
Response Speed: 1–7 ms (OFF to ON) | 2–12 ms (ON to OFF)
Module Weight: Approx. 8.8 oz (250 g)
Agency Compliance: UL Listed (File # E157382)
Status:- Used Excellent Working (As Per Photos)
Country of Origin:- Made In Japan
Shipping:- Fast & Safe Worldwide Shipping Available.

chat WhatsApp

verified_user

Free Shipping

For Indian customers

verified_user

Secure Payment

100% protected

verified_user

Export Quality

Authentic & Certified

verified_user

Fast Delivery

Worldwide shipping

The Automation Direct D4-16ND2 is a high-reliability, 16-point current-sourcing discrete input module designed exclusively for the legacy DirectLOGIC DL405 PLC series. Built by Koyo to deliver precision electrical logic tracking, this module serves as an essential bridge between external industrial hardware—such as field sensors, switches, and proximity devices—and your main processing unit. [1, 2, 3, 4]

Engineered with current-sourcing architectures, it ensures clear logic thresholds with an explicit ON voltage level greater than 9.5 VDC and an OFF voltage level below 4.0 VDC. Internal logic-side status indicators allow diagnostic technicians to visually verify input states instantly on the shop floor. Designed for high operational durability, this component ensures steady signal aggregation inside complex manufacturing and marine machinery setups.
