Phoenix Contact 2700630 IB IL PB MA-PAC Communication Module

Name: Phoenix Contact 2700630 IB IL PB MA-PAC Communication Module
Brand: Phoenix Contact
SKU: 1793
Availability: InStock

Pricing Status

USED

Specification Details
Brand: Phoenix Contact
Series: IB IL PB MA-PAC
Part Number: 2700630
Product Type: Communication Module
Interface Ports: 1 x 9-pin D-SUB female socket, Inline local data jumper
Address Configuration: Rotary encoding switch for addresses 1 to 125
Local Bus Supply Current: 98 mA typical at 7.5 VDC
Operating Ambient Temperature: -25°C to +55°C
Physical Dimensions: 48.8 mm (W) x 119.8 mm (H) x 71.5 mm (D)
Status:- Used Excellent Working (As Per Photos)
Country of Origin: Made in Germany
Shipping:- Fast & Safe Worldwide Shipping Available.

chat WhatsApp

verified_user

Free Shipping

For Indian customers

verified_user

Secure Payment

100% protected

verified_user

Export Quality

Authentic & Certified

verified_user

Fast Delivery

Worldwide shipping

The Phoenix Contact 2700630 (IB IL PB MA-PAC) is a high-performance Inline function terminal designed to seamlessly integrate lower-level PROFIBUS systems into standard Inline automation networks. Actively serving as a communication bridge, it can function interchangeably as a PROFIBUS DP master or DP slave.

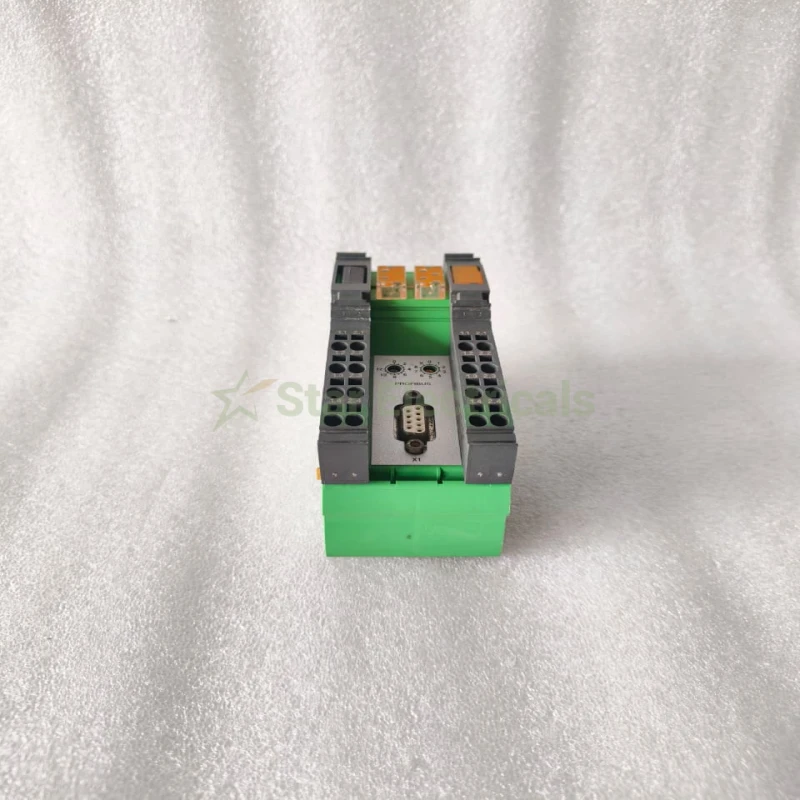

When acting as a Master, it allows clean integration of compliant slaves into INTERBUS or PROFINET architectures via Phoenix Contact controllers. When utilized as a Slave, it enables gateways into any standard higher-level PROFIBUS network. The front panel features a classic 9-position D-SUB socket connector for dependable data transmission alongside onboard rotary address mapping switches for effortless system initialization.
