Pizzato CS AR-01M024 Safety Relay Module 2NO+1NC Category 4, 24VAC/DC, PL e, SIL 3
Specification Details
Brand: Pizzato Elettrica
Model: CS AR-01M024
Product Type: Industrial Safety Module / Safety Relay
Series: CS AR-01
Safety Category: Category 4
Performance Level: PL e
Safety Integrity Level: SIL 3
Safety Functions: Emergency Stop & Guard Monitoring
Safety Outputs: 2NO
Auxiliary Output: 1NC
Output Configuration: 2NO + 1NC
Supply Voltage: 24 VAC/DC
Input Configuration: 1 or 2 Channel
Start Configuration: Automatic / Manual / Monitored
Terminal Type: Plug-in Connector with Screw Terminals
Number of Connectors: 4
Housing Width: 22.5 mm
Housing Material: Polyamide PA 66, self-extinguishing V0
Housing Protection: IP40
Terminal Protection: IP20
Ambient Temperature: -25°C to +55°C
Rated Insulation Voltage: 250 V
Rated Impulse Withstand Voltage: 4 kV
Output Contact Type: Forcibly Guided Relay Contacts
Max. Switching Voltage: 230/240 VAC; 300 VDC
AC-15 Rating: 230 V / 3 A
DC-13 Rating: 24 V / 4 A
Maximum Thermal Current per Branch: 6 A
Minimum Switching Current: 10 mA
Typical Input Current: 30 mA
Mounting: DIN Rail / Control Panel
Application: Industrial Machinery & Automation Safety
Country Of Origin: Made In ITALY

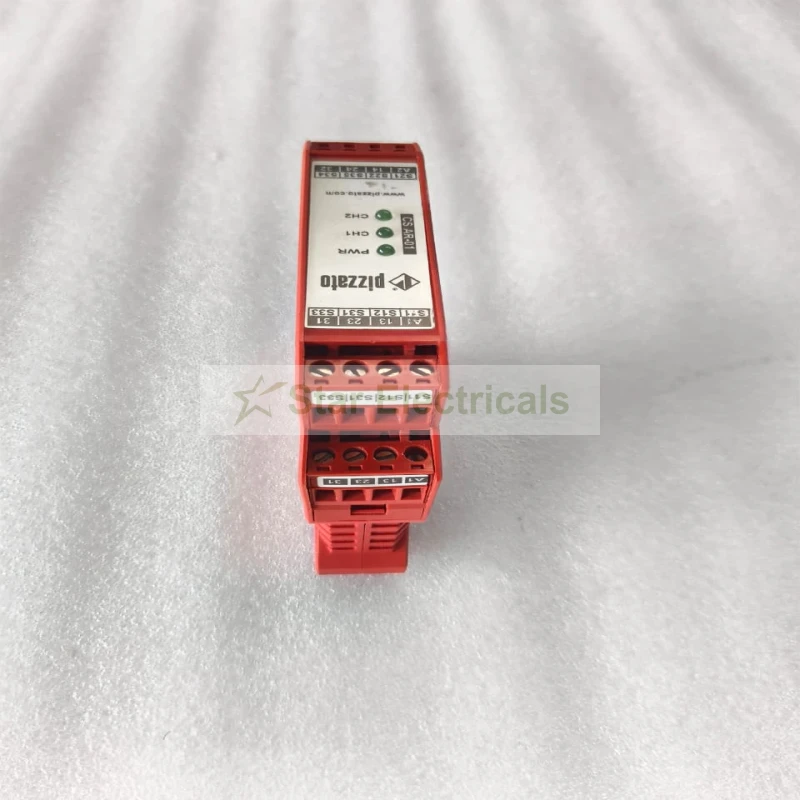

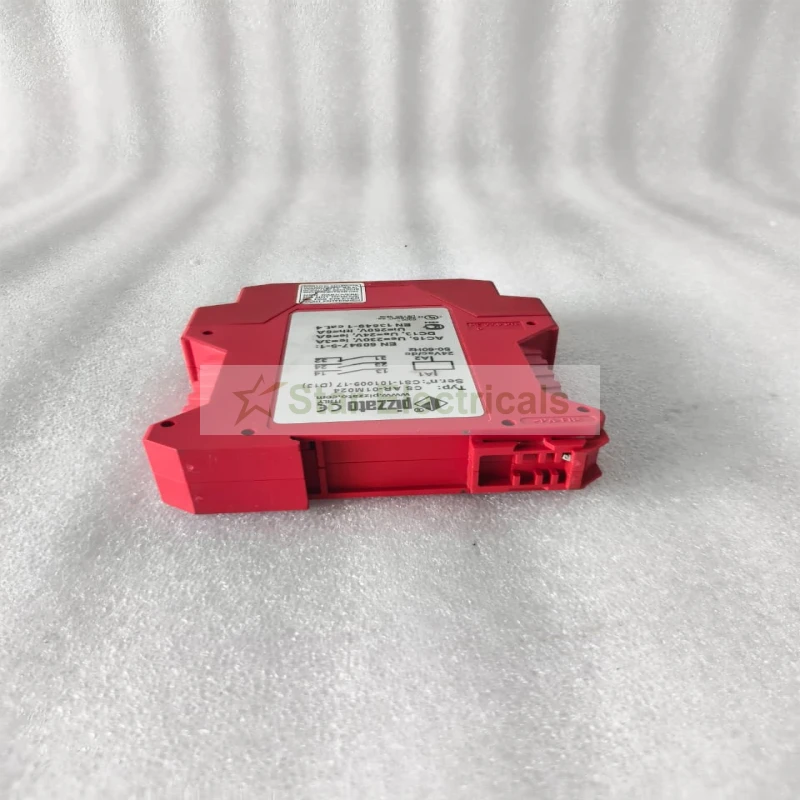

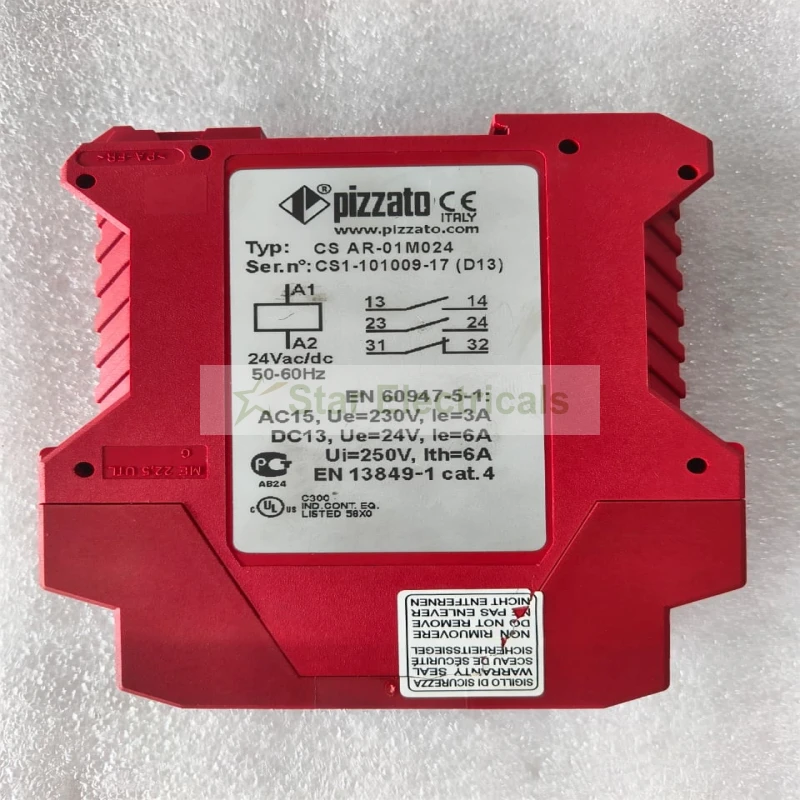

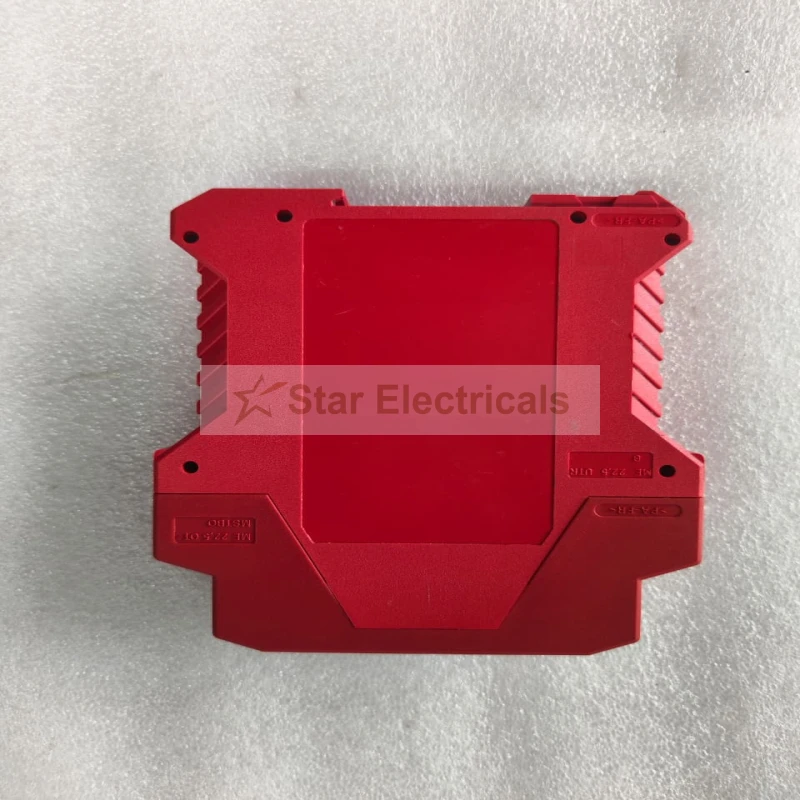

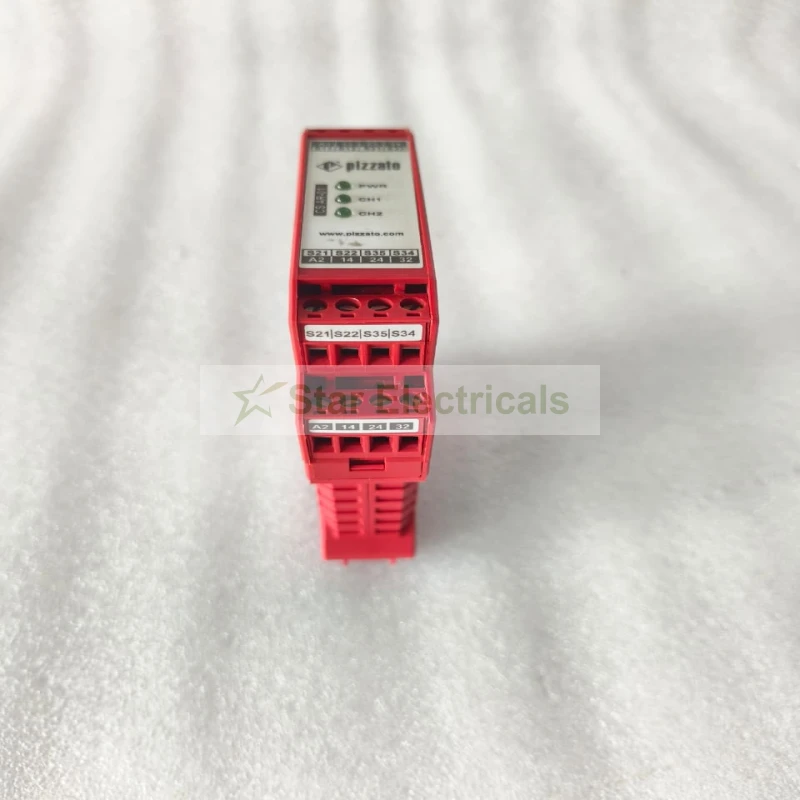

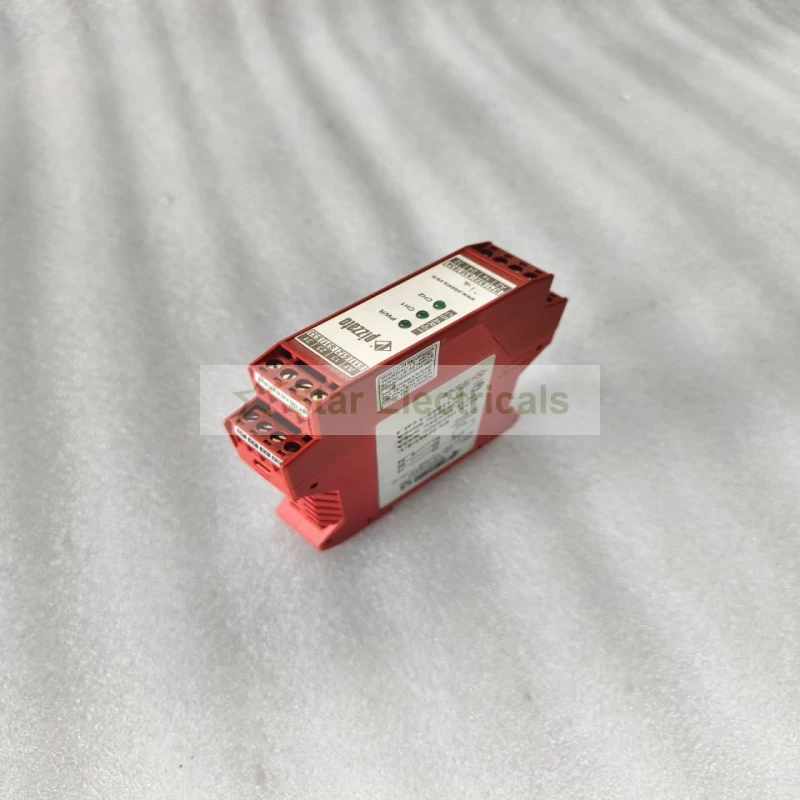

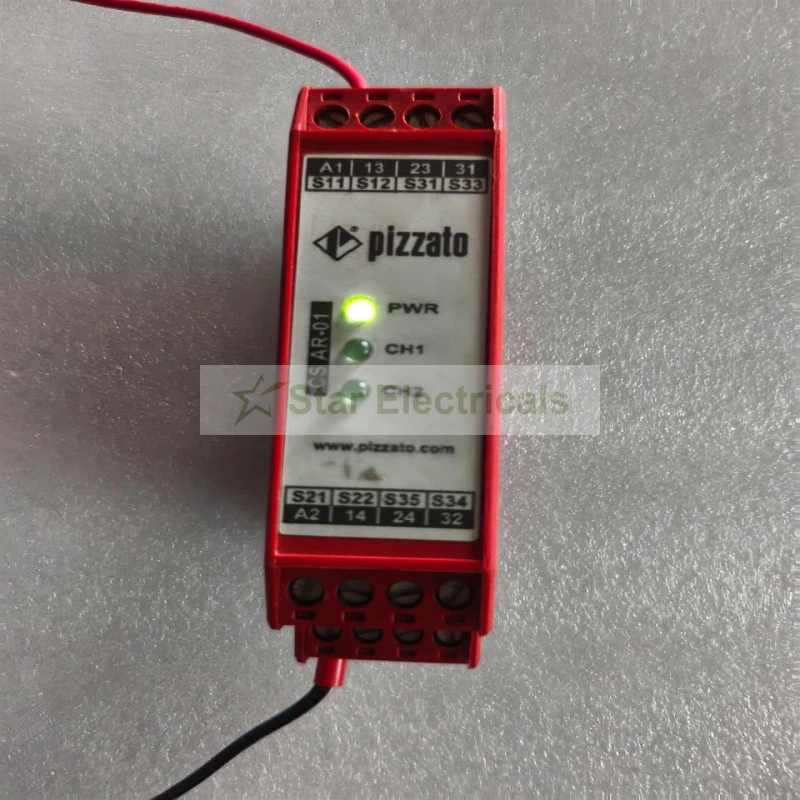

Condition:Used Excellent Working (As Per Photos)
Shipping: Fast & Safe Worldwide Shipping Available.
The Pizzato Elettrica CS AR-01M024 is a high-performance industrial safety relay module designed for reliable monitoring of emergency stop circuits and movable machine guards. It belongs to the Pizzato CS AR series of single-function safety modules and provides a Category 4 safety solution with PL e and SIL 3 capability.
The module operates from a 24 VAC/DC power supply and provides two normally open (2NO) safety relay outputs and one normally closed (1NC) auxiliary signalling output. The forcibly guided relay contacts help provide dependable switching and monitoring in safety-related control systems.
The CS AR-01M024 supports one-channel or two-channel safety inputs and can be configured for automatic, manual or monitored start operation. This flexibility makes it suitable for a wide range of industrial machinery, automation equipment, production lines, access guards and emergency-stop applications.
Its compact 22.5 mm housing is suitable for space-conscious control panels and DIN-rail installations. The module uses plug-in connectors with screw terminals, providing convenient electrical installation and maintenance.
With its combination of safety-rated relay outputs, compact construction and industrial safety functionality, the Pizzato CS AR-01M024 safety relay is an appropriate choice for machine safety circuits where dependable emergency-stop and protective-guard monitoring is required.
