SCHNEIDER ELECTRIC BMXP342020 MODICON M340 CPU340-20 MODBUS ETHERNET
- Brand: Schneider Electric
- Product Family: Modicon M340
- Product Reference: BMXP342020
- CPU Model: CPU340-20
- Product Type: Processor Module / PLC CPU
- Platform: Modicon M340 Automation Platform
- Communication: Modbus Ethernet
- Ethernet Interface: RJ45
- Ethernet Speed: 10/100 Mbit/s
- Ethernet Standard: 10BASE-T / 100BASE-TX
- Ethernet Protocol: TCP/IP
- Modbus Protocol: Modbus TCP
- Serial Communication: Modbus RTU / ASCII
- Serial Interface: RJ45
- USB Interface: USB, 12 Mbit/s
- Maximum Discrete I/O: 1,024 multi-rack
- Maximum Analog I/O: 256 multi-rack
- Discrete I/O Capacity: 704 single-rack
- Analog I/O Capacity: 66 single-rack
- Maximum Racks: 4
- Slots per Rack: 11
- Power Supply: Internal power supply via rack
- Current Consumption: 95 mA at 24 V DC
- Operating Temperature: 0°C to 60°C
- Ingress Protection: IP20
- Mounting: Modicon M340 Rack / Chassis
- Programming Software: EcoStruxure / Unity Pro-compatible M340 engineering environment
- Application: Industrial Automation, Machine Control, Process Automation
- Typical Use: PLC Control, Factory Automation, Modbus Communication, System Retrofit
- Weight: Approx. 0.205 kg
- Standards: IEC 61131-2, EN 61131-2, UL 508, CSA
- Product Status: Active product reference according to Schneider Electric product information
- Country of Origin: France

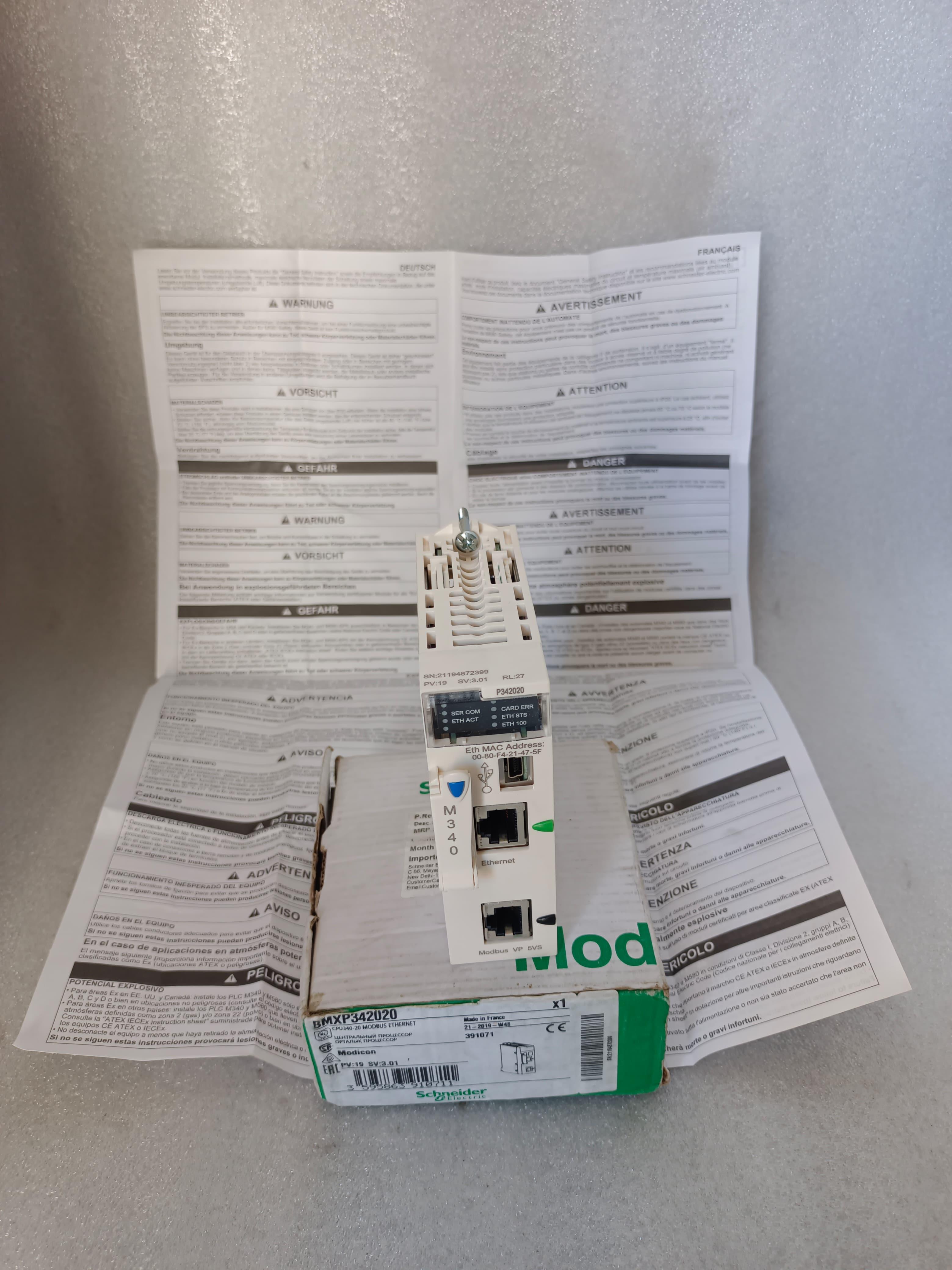

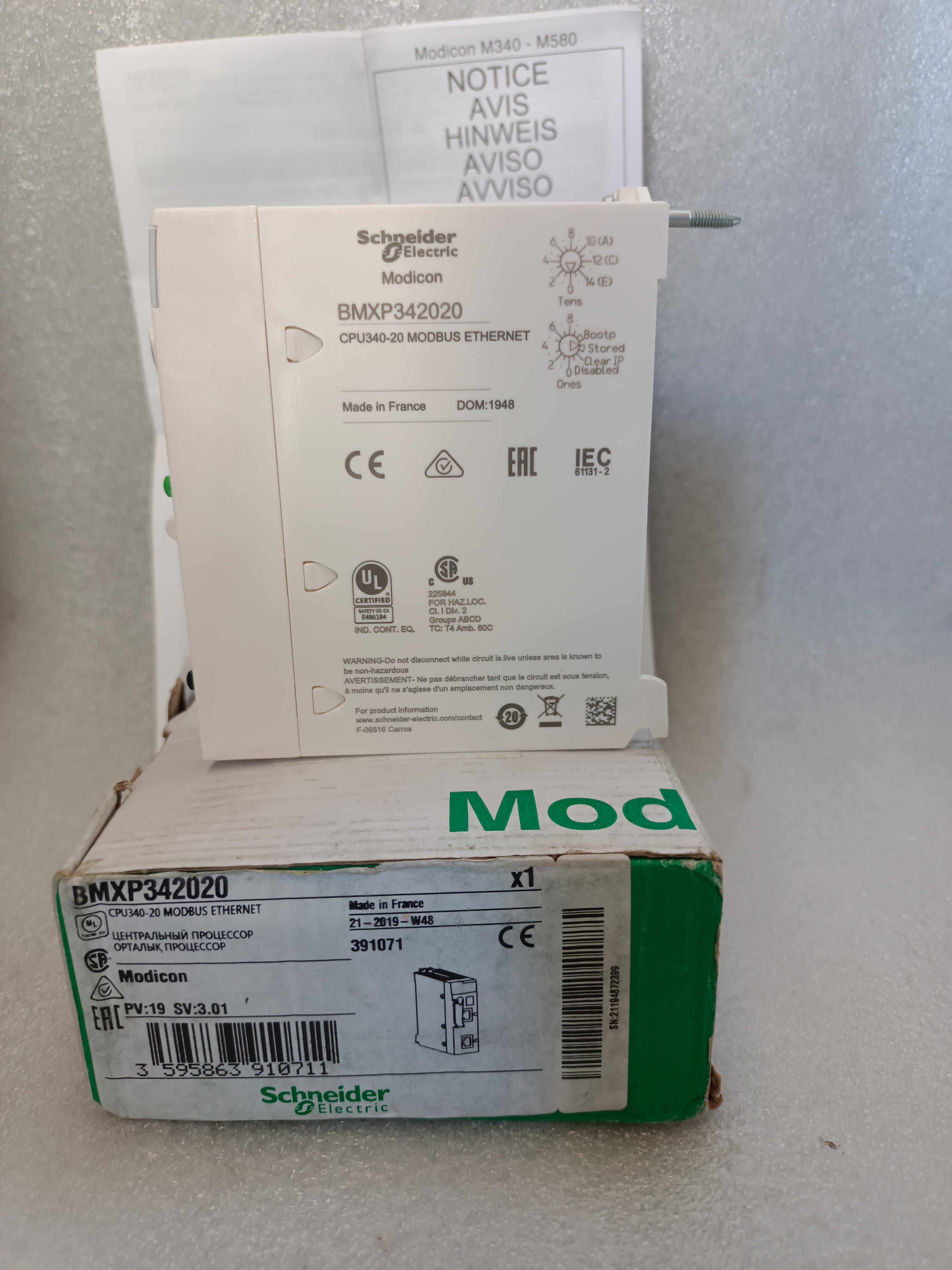

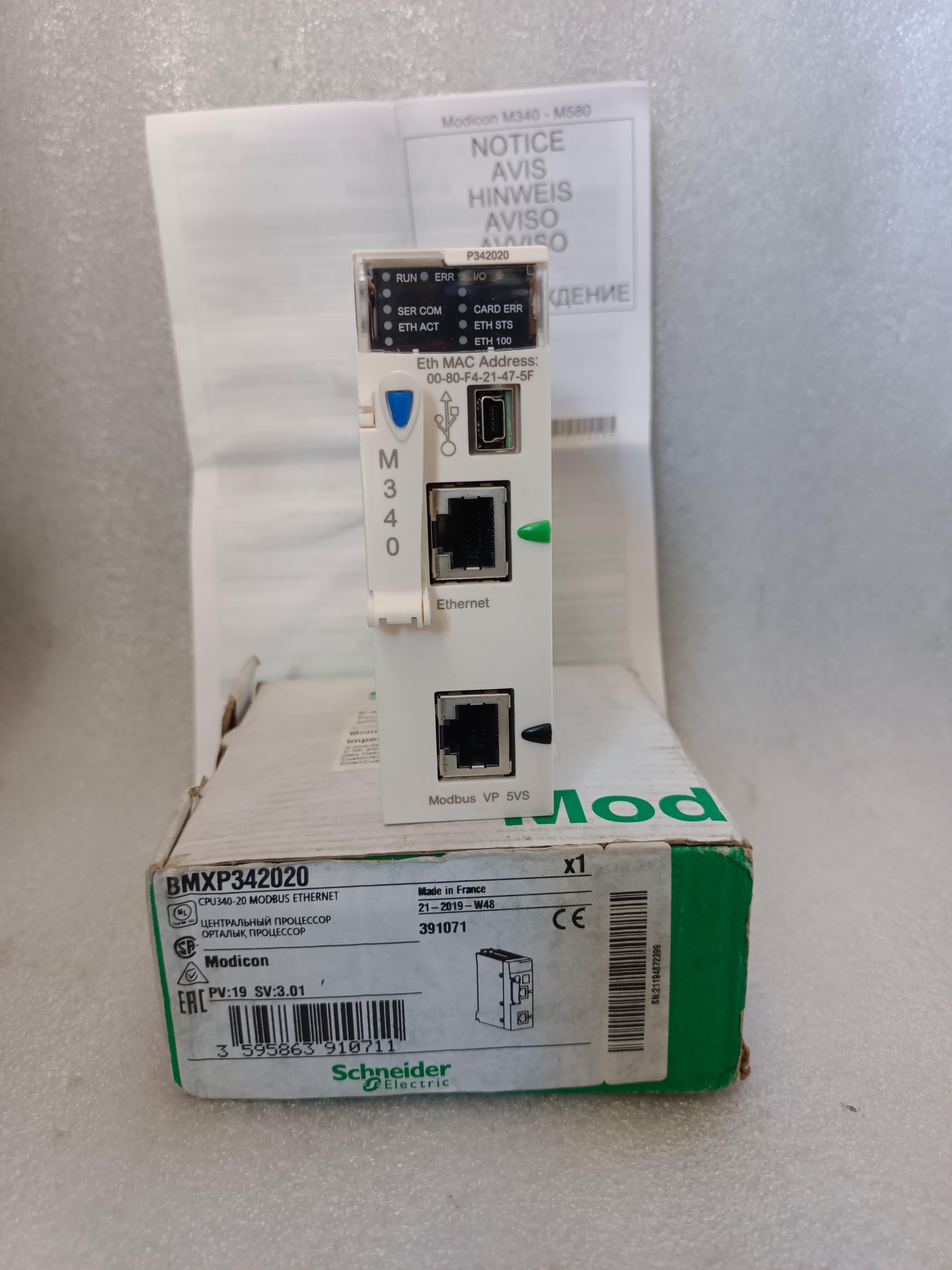

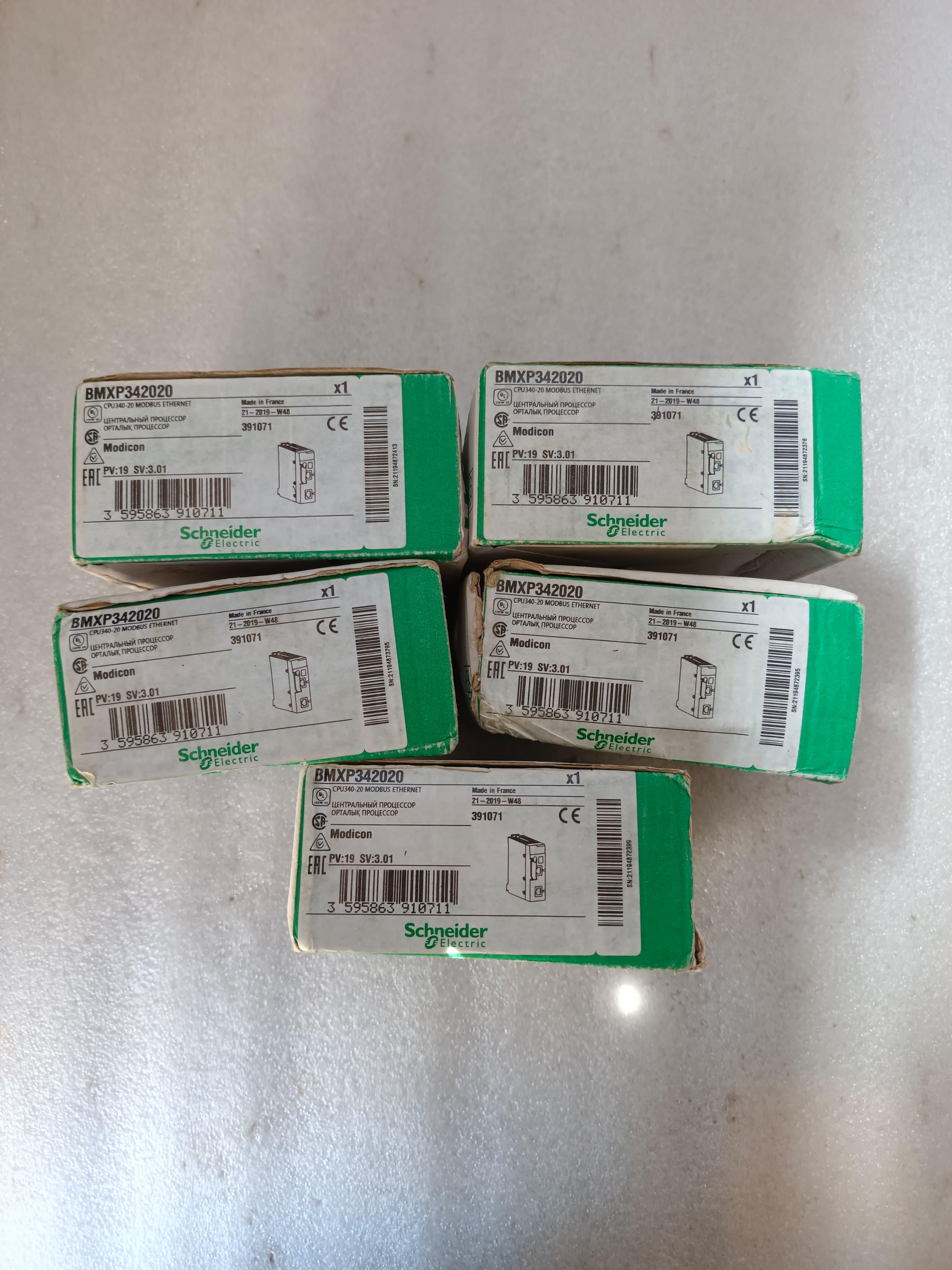

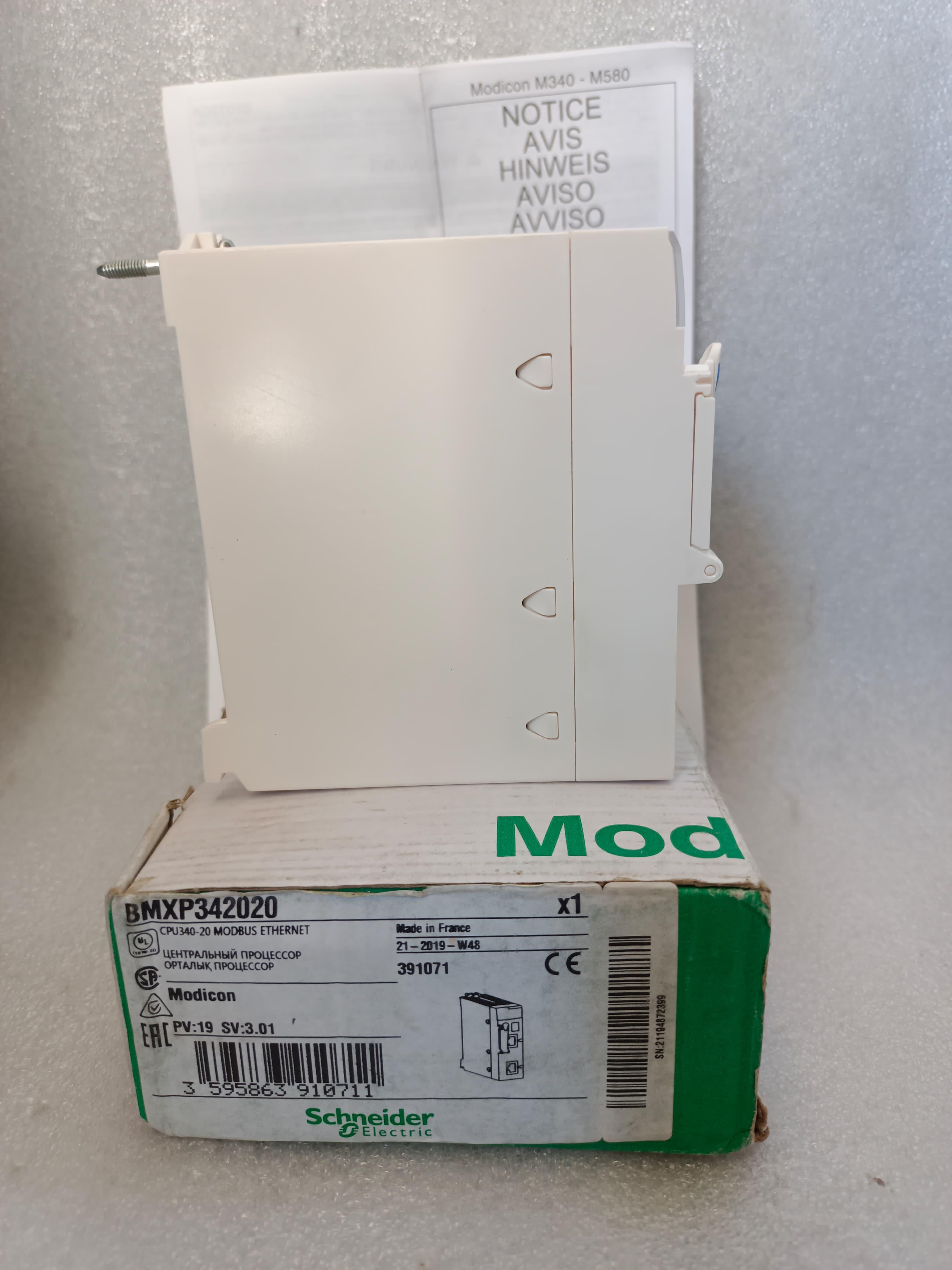

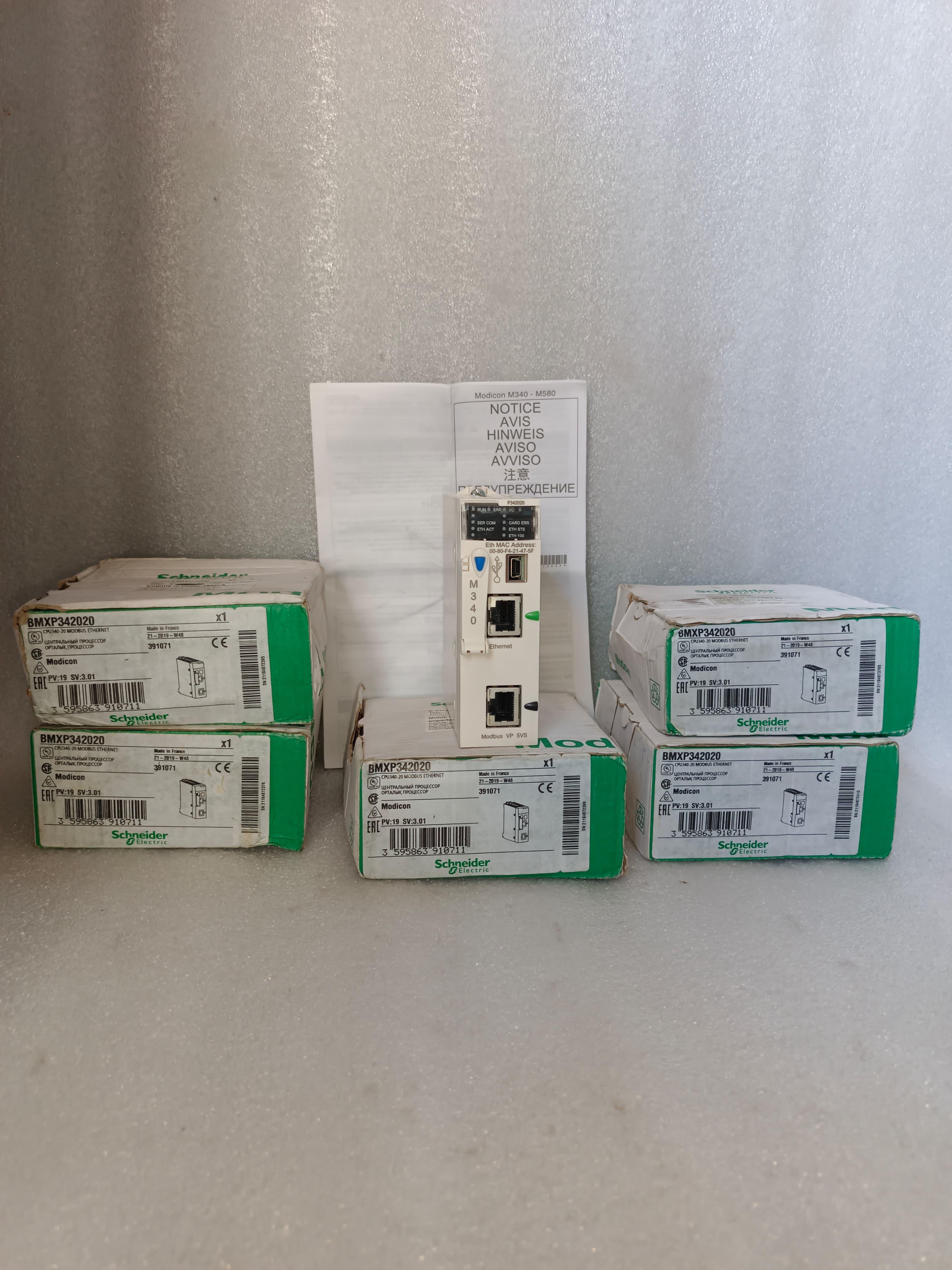

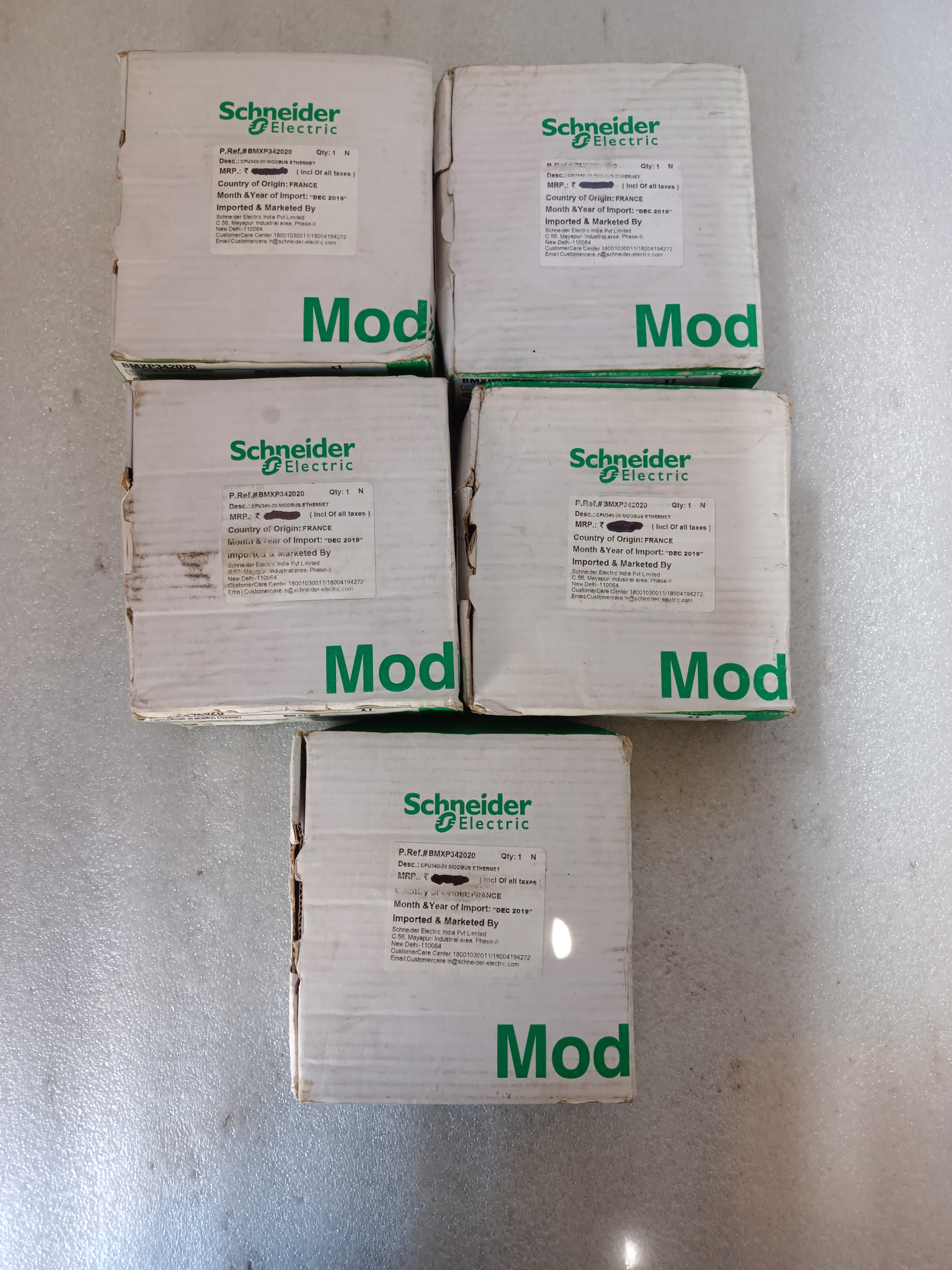

- Condition: New With Box (As Per Photos)
- Shipping: Fast & Safe Worldwide shipping available
The SCHNEIDER ELECTRIC BMXP342020 Modicon M340 CPU340-20 Modbus Ethernet Processor Module is a high-performance PLC processor designed for the Modicon M340 automation platform. It provides integrated processing and communication capabilities for industrial automation, machine control and distributed I/O applications.
The BMXP342020 features an integrated Ethernet TCP/IP RJ45 interface supporting 10BASE-T/100BASE-TX, with services including Modbus TCP messaging, SNMP network management, Rack Viewer and Data Editor. Schneider Electric specifies support for up to 1,024 discrete I/O and 256 analog I/O in a multi-rack configuration.
The processor also provides an integrated serial connection supporting Modbus master/slave RTU and ASCII communication, making it suitable for connecting industrial devices such as drives, meters, sensors and other Modbus-compatible equipment.
The BMXP342020 is well suited for factory automation, process automation, machine control, production lines, industrial communication systems and PLC modernization projects. Its integrated Ethernet capability helps simplify communication between the M340 controller and supervisory or networked industrial equipment.
Important: The native Ethernet interface supports Modbus TCP, not Ethernet/IP. Schneider Electric specifically states that an additional BMXNOC module is required when Ethernet/IP communication is needed.
