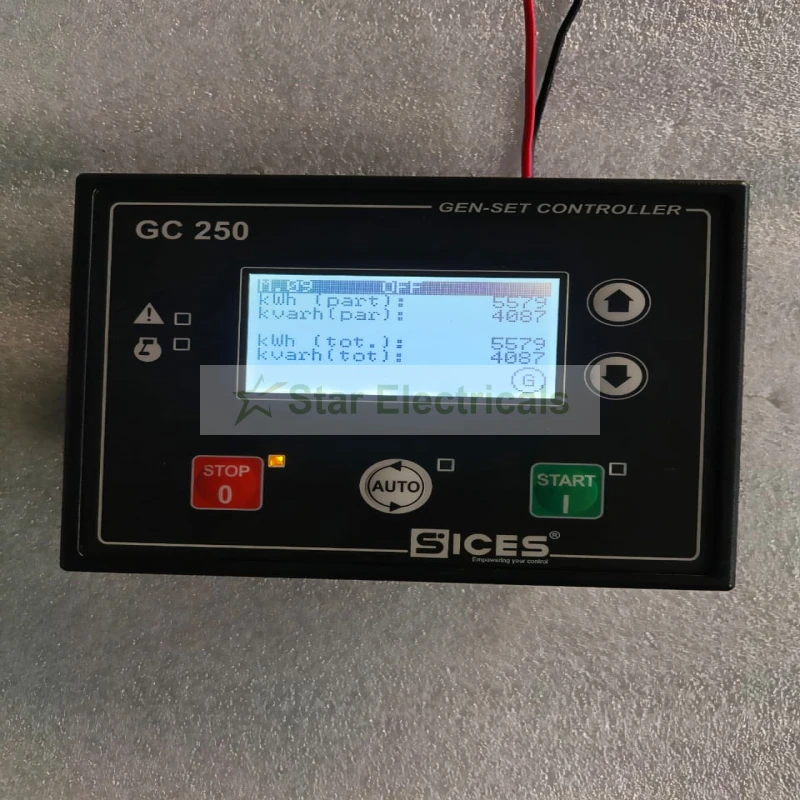

SICES GC250 Automatic Mains Failure (AMF) Genset Controller Module | P/N E6112156100 | Auto-Start Generator Controller
Specification Details
Brand: SICES
Model: GC250

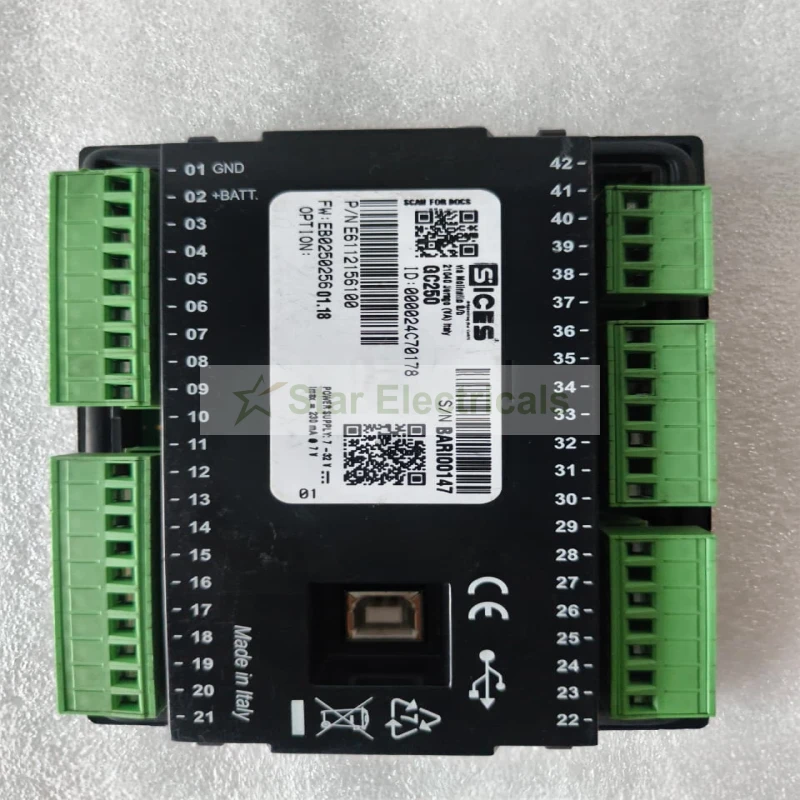

Part Number: E6112156100
Controller Type: AMF / Auto-Start Genset Controller
Application: Single Standby Genset
Mains Sensing: 3-Phase Utility/Mains
Generator Sensing: 3-Phase
Current Inputs: 3 × CT Inputs
Digital Inputs: 4 Configurable
Analogue Inputs: 3 Configurable + additional configurable input functions
Digital Outputs: 4 Configurable
Engine Interface: MPU / CAN J1939
Display: 128 × 64 Pixel LCD with LED Backlight
Communication/Service: USB
Measurements: kW, kVA, kVAr, PF, kWh, Voltage, Current, Frequency
Protection Functions: Engine & Alternator Monitoring/Protection
Data Logging: Event and Periodical Data Logging
Remote Control: Remote Start/Stop
Alarm: Integrated Alarm Horn
Protection Rating: IP65
Dimensions: Approx. 144 × 108 × 40 mm
Power Supply: 7–32 VDC
Installation: Panel Mount
Country of Origin: Made In ITALY
Condition: Used Excellent Working (As Per Photos)
Shipping: Fast & Safe Worldwide Shipping Available.
The SICES GC250 Automatic Mains Failure (AMF) Genset Controller, Part Number E6112156100, is a compact and versatile generator controller designed for single standby gensets and automatic start applications. It provides automatic monitoring of the utility mains and generator supply and can initiate generator operation when a mains failure condition is detected.
The GC250 combines engine monitoring, alternator protection, electrical measurement and automatic generator control in a compact controller. It supports three-phase mains and generator voltage sensing together with three current-transformer inputs and True RMS measurements for parameters such as kW, kVA, kVAr, power factor and energy.
For engine integration, the SICES GC250 can interface with conventional engines using an MPU as well as electronic engines through CAN J1939 communication. Configurable digital and analogue inputs and outputs allow the controller to be adapted to different genset configurations and monitoring requirements.

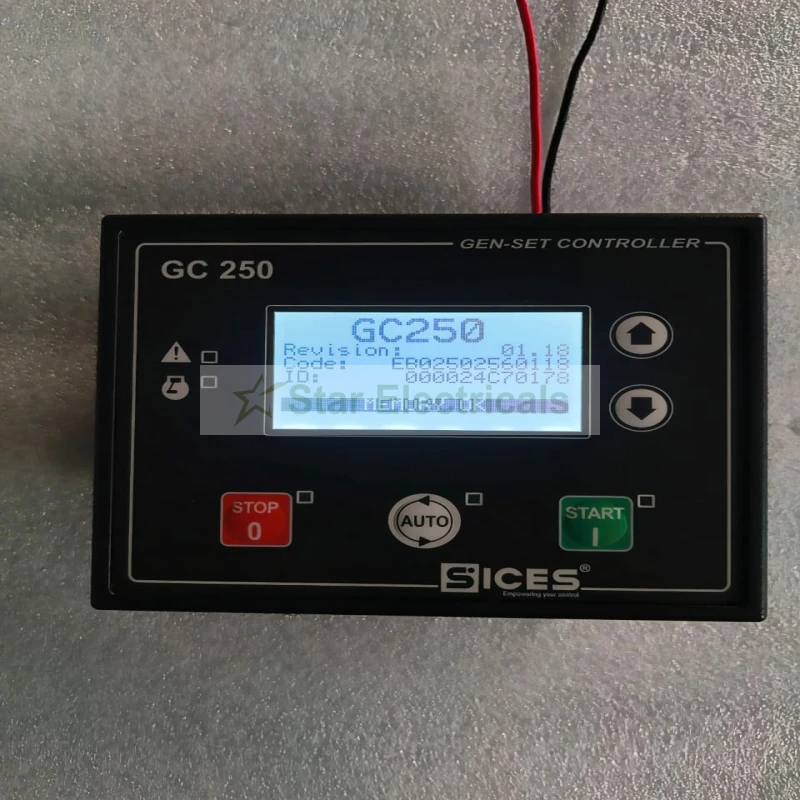

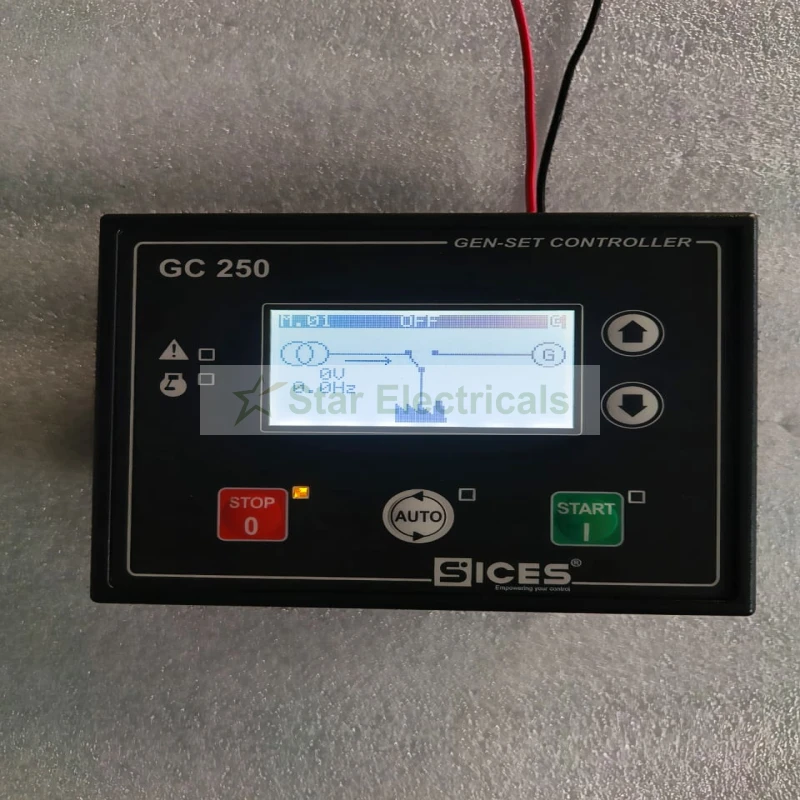

The integrated 128 × 64 LCD display provides clear visual indication of operating status, warnings and alarms. USB connectivity allows configuration and firmware updating, while the controller's event/data logging capability helps with troubleshooting and generator maintenance.
With its compact construction, IP65 protection, automatic mains failure functionality and comprehensive engine/alternator protection features, the SICES GC250 GC250 AMF Controller is suitable for industrial generator panels, standby power systems, emergency power applications and genset automation projects.
