Siemens 6DL4320-0AA00 VIB320 Processing Module

Name: Siemens 6DL4320-0AA00 VIB320 Processing Module
Brand: Siemens
SKU: 1896
Availability: InStock

Pricing Status

USED

Specification Details
Brand: Siemens AG
Model: VIB320
Part Number: 6DL4320-0AA00
Product Type: Processing Module
Serial Notation Group: LBLN525864

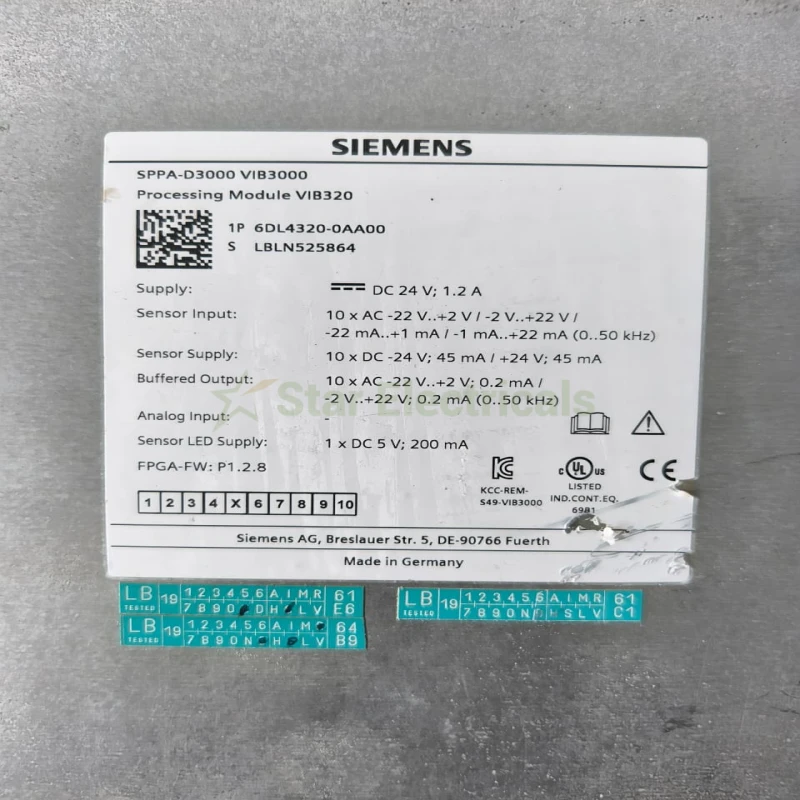

Power Supply Rating: DC 24 V; 1.2 A
Sensor LED Supply: 1 x DC 5 V; 200 mA
FPGA Firmware Version: P1.2.8
Hardware Standardization: SIL 1 Certified safety compliance
Harmonized System Code: 85389091
Status:- Used Good Working (As Per Photos)
Country of Origin: Made in Germany
Shipping:- Fast & Safe Worldwide Shipping Available.

chat WhatsApp

verified_user

Free Shipping

For Indian customers

verified_user

Secure Payment

100% protected

verified_user

Export Quality

Authentic & Certified

verified_user

Fast Delivery

Worldwide shipping

The Siemens SPPA-D3000 VIB320 (Part Number: 6DL4320-0AA00) is a highly advanced, industrial-grade 10-channel measured value data acquisition and processing module engineered for the robust VIB3000 Machinery Protection & Analysis system. Designed specifically for high-stakes power generation and heavy process automated plants, this module functions seamlessly to read, measure, and analyze mechanical conditions in real-time.

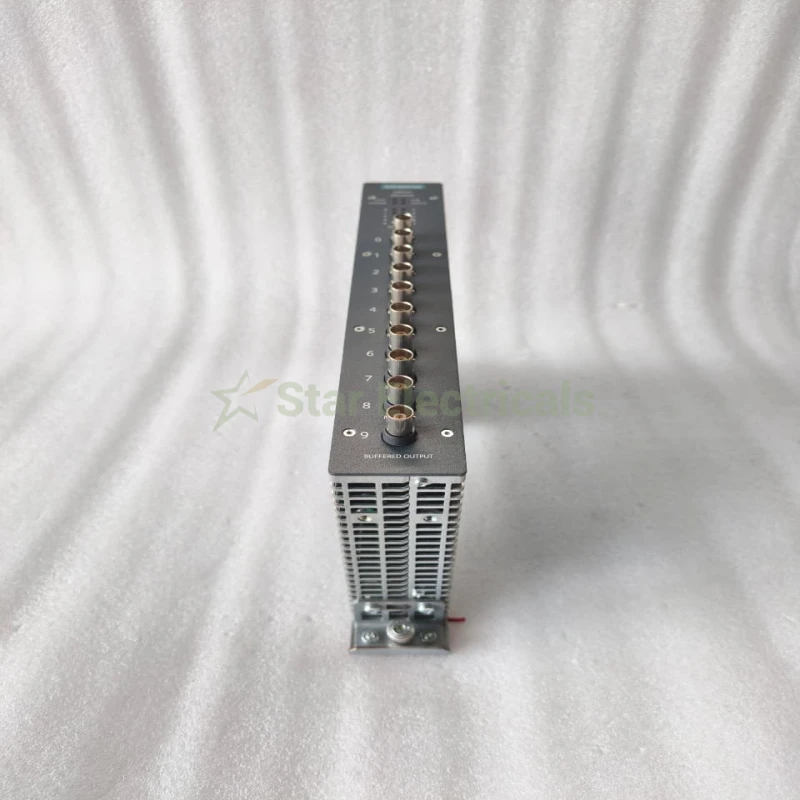

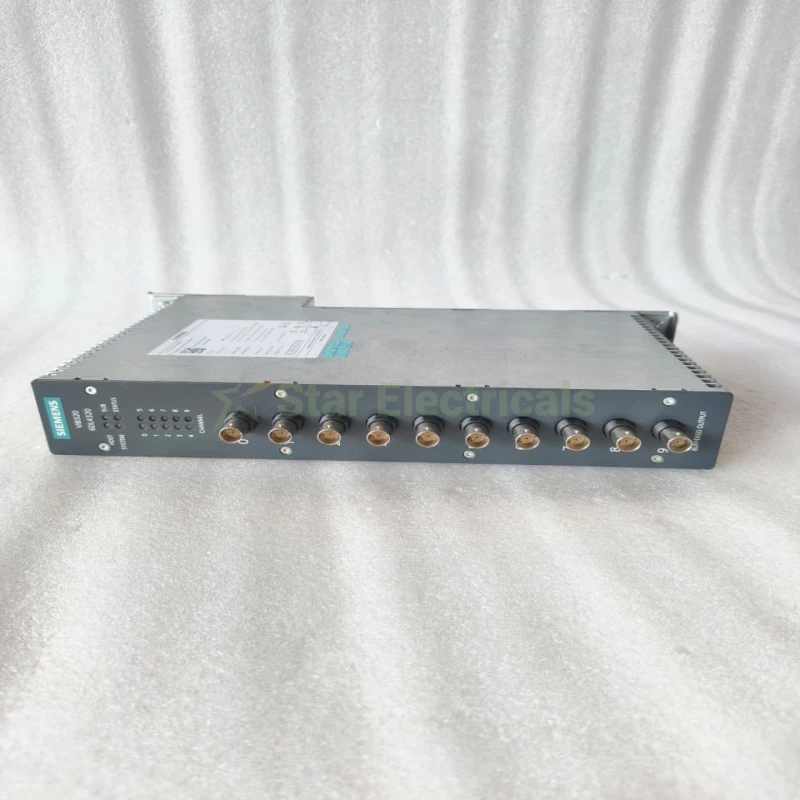

Equipped with a powerful integrated Digital Signal Processor (DSP), it ensures continuous, high-speed processing of dynamic analog inputs like absolute case vibrations, relative shaft vibrations, axial thrust tracking, and combustion chamber humming. Its prominent front panel is structured with 10 labeled BNC ports (0–9) that output isolated, buffered raw sensor signals directly to testing equipment without disrupting active DCS operations. By continuously tracking critical parameters, the VIB320 helps prevent unexpected equipment failures, reduces unplanned asset downtimes, and triggers rapid machine shutdowns under hazardous states.
