Siemens 6ES7214-1HG40-0XB0 SIMATIC S7-1200 CPU 1214C Compact PLC

Name: Siemens 6ES7214-1HG40-0XB0 SIMATIC S7-1200 CPU 1214C Compact PLC
Brand: Siemens
SKU: 1331
Availability: InStock

Pricing Status

NEW

Specification Details
Brand: Siemens AG
Product Series: SIMATIC S7-1200 (CPU 1214C)
Article Number (MLFB): 6ES7214-1HG40-0XB0
Input Supply Voltage: 20.4 V DC to 28.8 V DC (Reverse Polarity Protected)
Power Dissipation (Typical): 12 W
Degree of Protection: IP20 Enclosure
Ambient Operating Temperature: -20 °C to +60 °C (Horizontal Mounting)
Dimensions (W x H x D): 110 mm x 100 mm x 75 mm
Net Weight: ~384 grams
Standards & Certifications: CE, cULus, FM, ATEX, RCM, KC

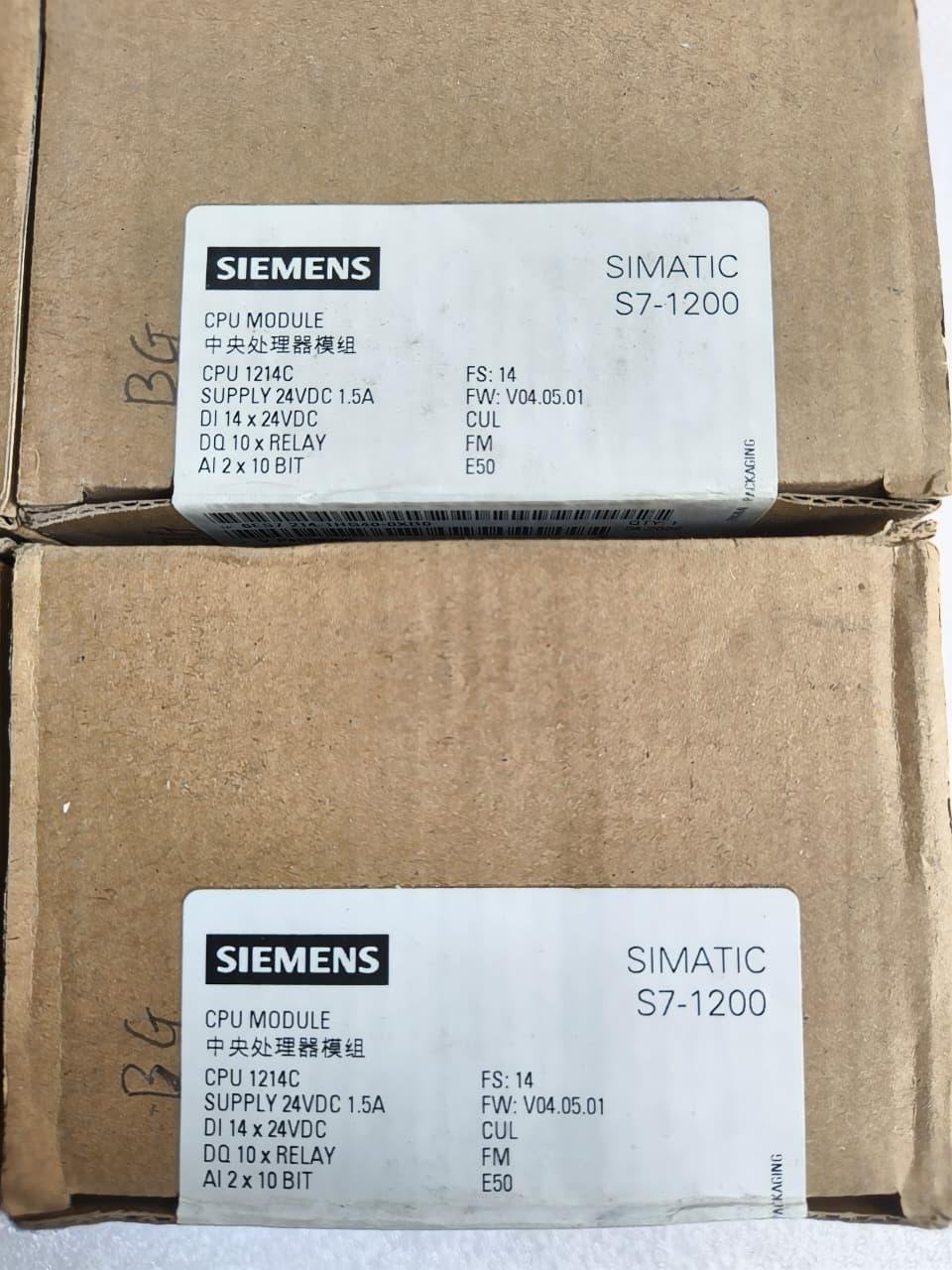

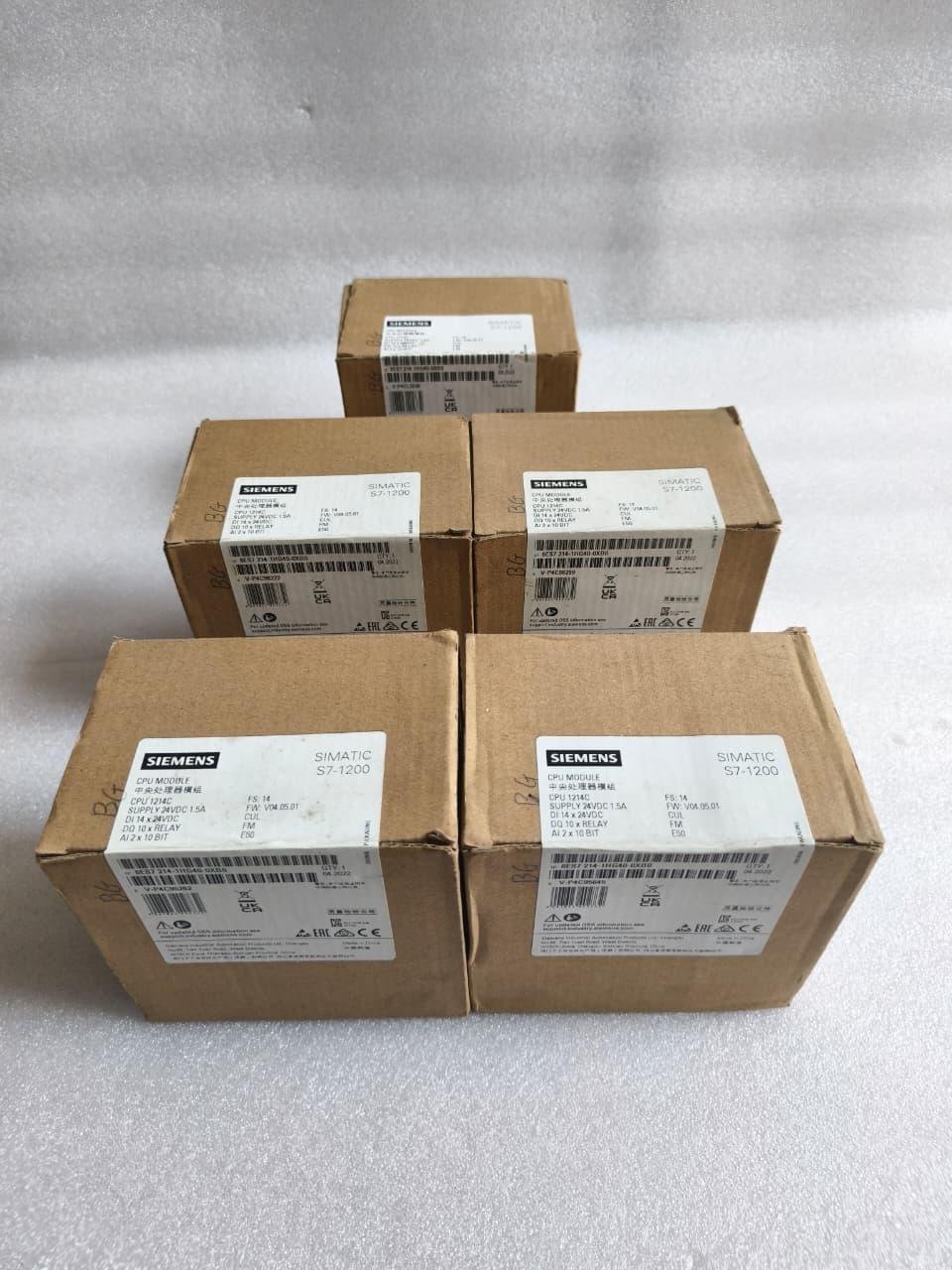

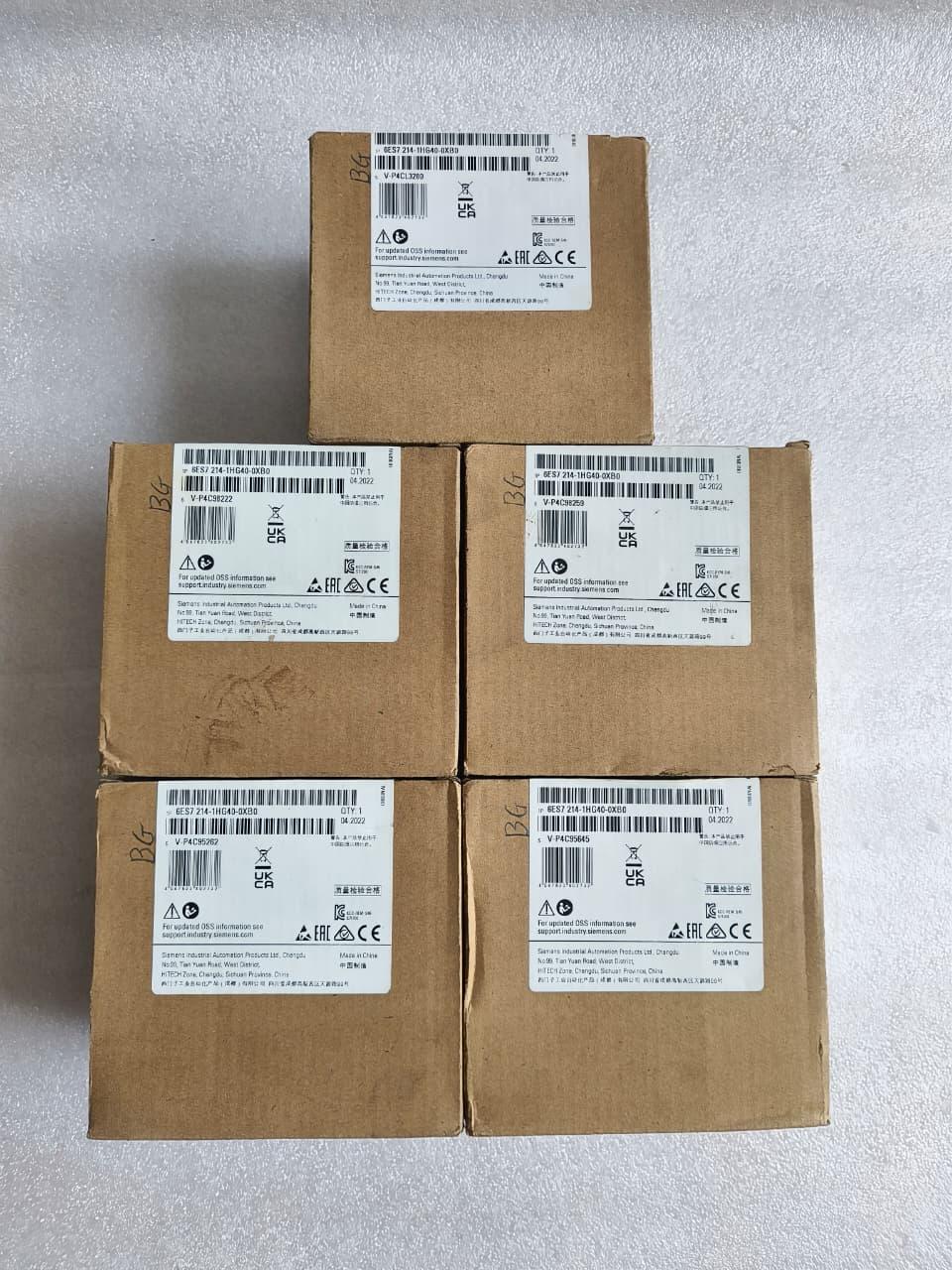

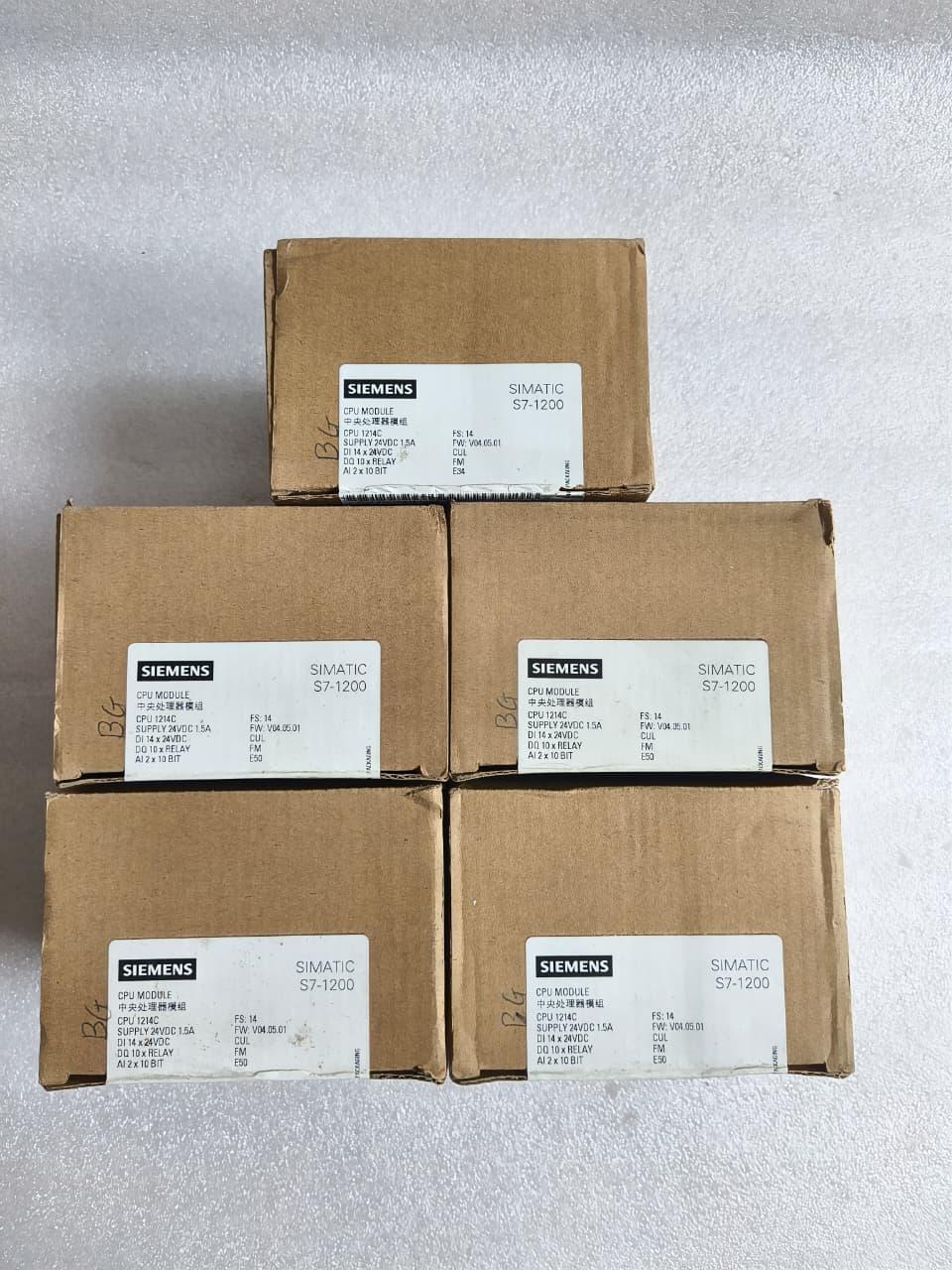

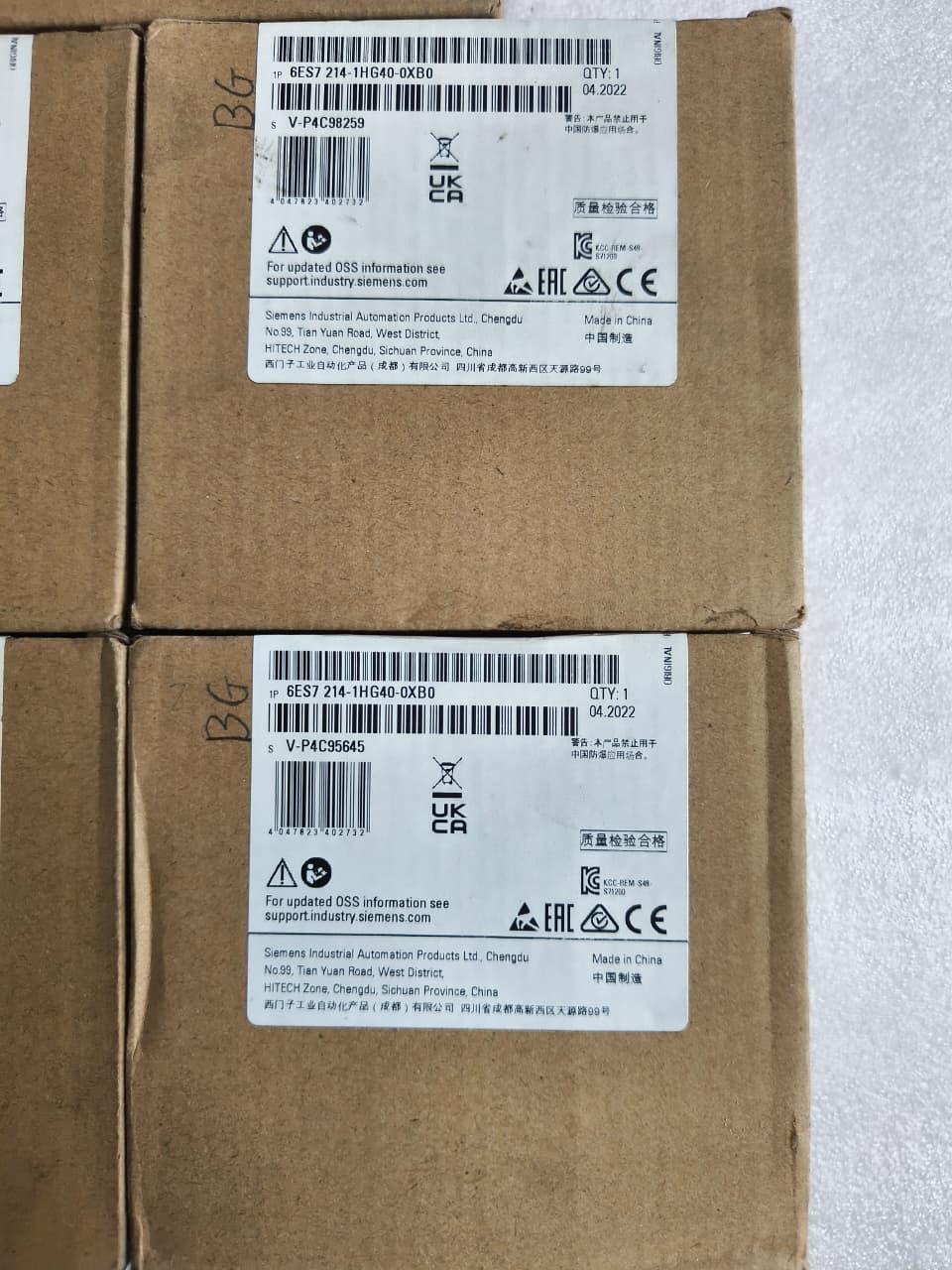

Status:- New Factory Sealed (As Per Photos)
Country of Origin: Made in China
Shipping:- Fast & Safe Worldwide Shipping Available.

chat WhatsApp

verified_user

Free Shipping

For Indian customers

verified_user

Secure Payment

100% protected

verified_user

Export Quality

Authentic & Certified

verified_user

Fast Delivery

Worldwide shipping

The Siemens SIMATIC S7-1200 CPU 1214C (6ES7214-1HG40-0XB0) is an advanced, high-performance compact programmable logic controller (PLC) designed to handle small to medium-scale industrial automation tasks with maximum flexibility. As a central processing unit within the Siemens Basic Controller line, this micro-PLC manages complex mathematical calculations, data logging, and process control logic using a highly responsive processing engine (0.08 µs bit operation time).

Engineered with a versatile DC/DC/Relay topology, the controller runs on a stable 24V DC power supply while providing high-capacity 2-amp relay outputs capable of direct switching without intermediate components. The module comes complete with 14 onboard digital inputs—including 6 high-speed channels for precision counting functions—alongside 2 integrated analog inputs for reliable 0-10V signal monitoring.

With native PROFINET networking built directly into the front interface, the CPU 1214C ensures rapid data exchanges with HMI control panels, distributed I/O systems, and SCADA architectures. Fully configurable within the Siemens TIA Portal environment via STEP 7 software, this PLC reduces engineering time and speeds up field commissioning across packaging, HVAC, water treatment, and OEM machinery setups.
