Toshiba GDI633S DI633 Digital Input Module

Name: Toshiba GDI633S DI633 Digital Input Module
Brand: Toshiba
SKU: 1811
Availability: InStock

Pricing Status

USED

Specification Details
Brand: Toshiba
Part Number: GDI633**S
Product Type: Digital Input Module
Input Configuration: Sink
Number of Inputs: 16 points per common
Input Voltage Rating: 12V to 24V AC/DC (+10% / -15%)
Minimum ON Voltage: 9.6 V
Maximum OFF Voltage: 3.6 V
Input Current: 8 mA typical at 24VDC
ON/OFF Delay Time: ≤ 10 ms (DC) / ≤ 20 ms (AC)
Certifications: cULus Listed, KC Mark
Status:- Used Good Working (As Per Photos)
Country of Origin: Made in Japan
Shipping:- Fast & Safe Worldwide Shipping Available.

chat WhatsApp

verified_user

Free Shipping

For Indian customers

verified_user

Secure Payment

100% protected

verified_user

Export Quality

Authentic & Certified

verified_user

Fast Delivery

Worldwide shipping

The Toshiba DI633 (Type GDI633**S) is a heavy-duty, high-performance 16-point digital input module built for advanced industrial automation and process control systems. Operating on a versatile 12-24Vac/dc input range, this module acts as a reliable bridge between field sensory devices (switches, proximity sensors, relays) and the central PLC processor.

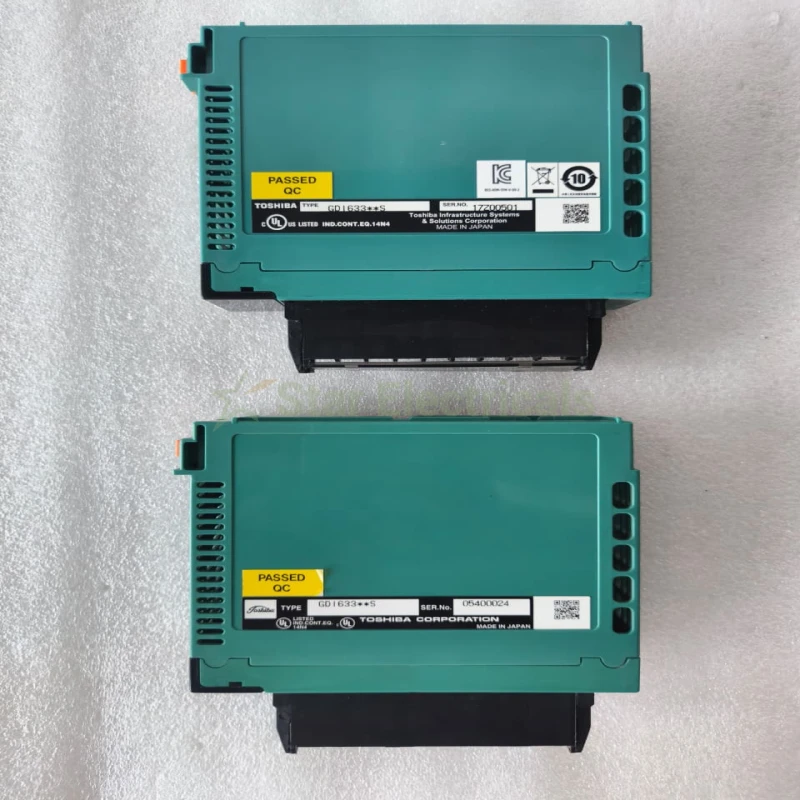

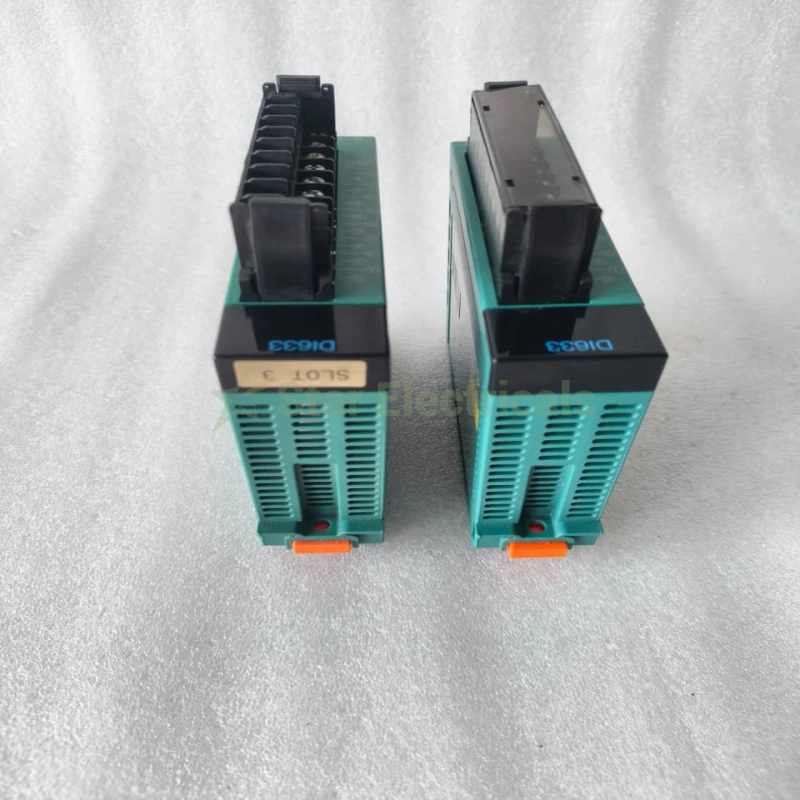

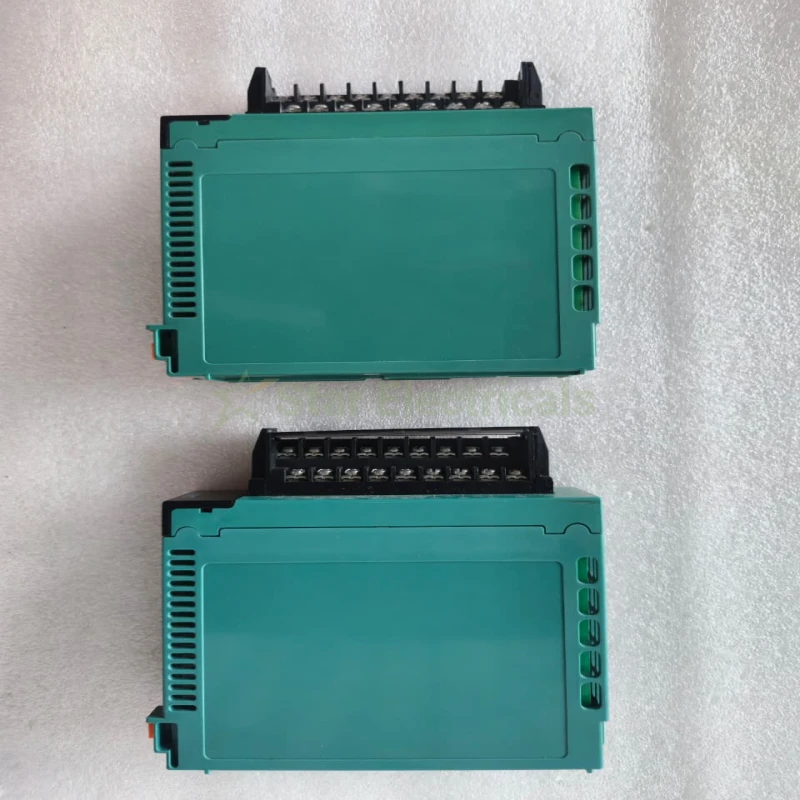

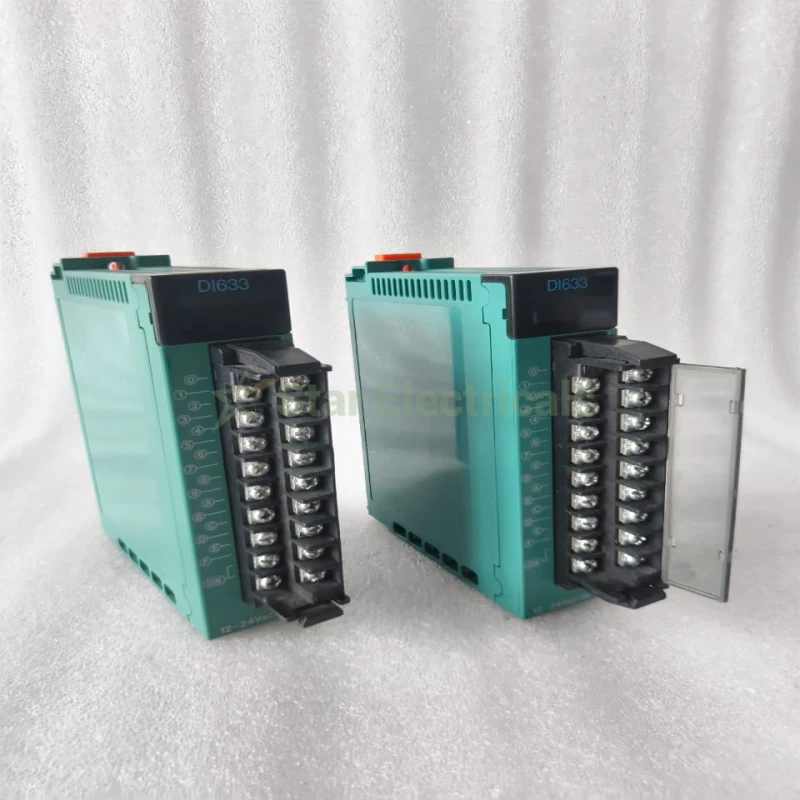

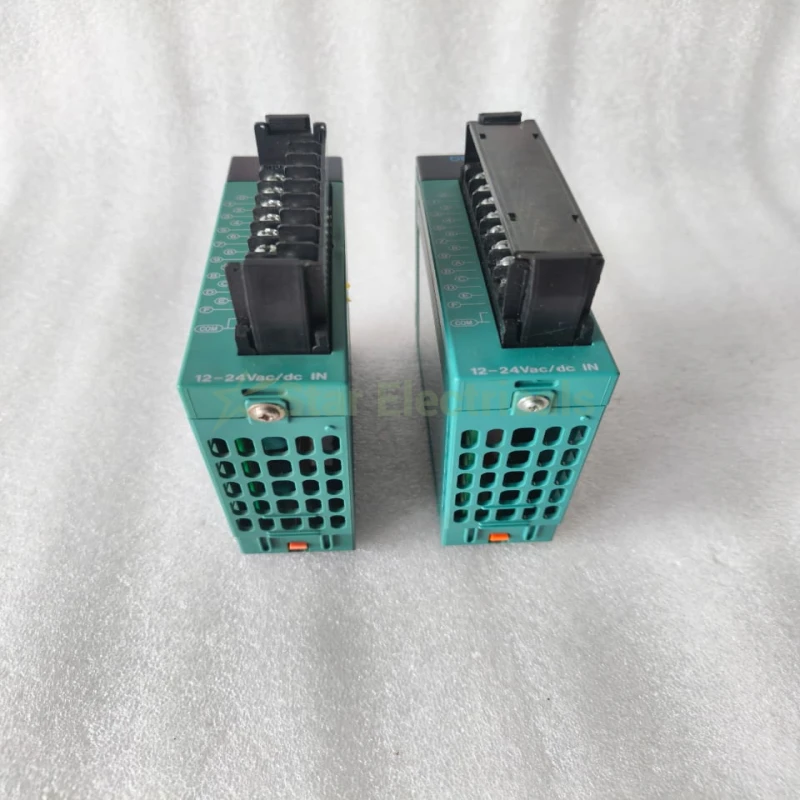

Equipped with a compact green-faced chassis housing, a clearly labeled 16-point terminal block (0-F plus common lines), and a sturdy protective front cover, the DI633 provides long-term terminal security and streamlined physical channel tracking. It integrates into Toshiba Parallel I/O system platforms, delivering exceptionally fast signal-response processing with excellent electrical noise filtering to maintain operational uptime in challenging manufacturing environments.
