Woodward 9907-175 Load Sharing Module
Specification Details
Brand: Woodward
Part Number: 9907-175
Product Type: Load Sharing Module
Application: Generator Load Sharing Controller
Function: Generator Synchronization & Load Distribution
Input Voltage: 100–240 VAC
Frequency: 50–400 Hz
Output Type: PWM Output
Control Adjustment: Droop & Load Gain
Communication: Load Sharing Lines
Governor Interface: PWM Speed Control
Mounting Type: Panel Mount
Phase Compatibility: Multi-Generator Systems
Industrial Use: Power Plants, Marine, Oil & Gas, Industrial Automation

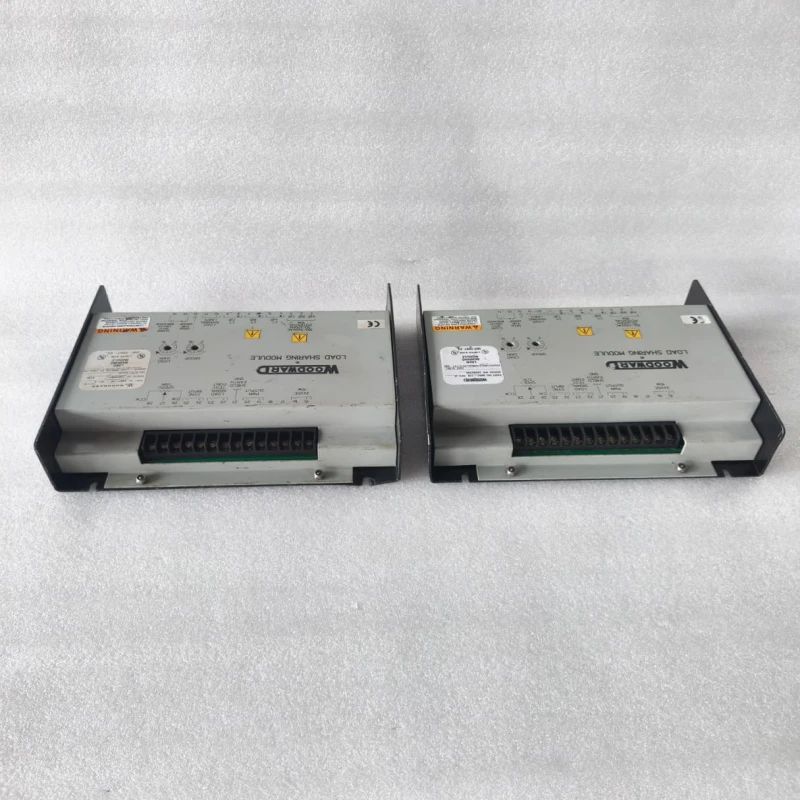

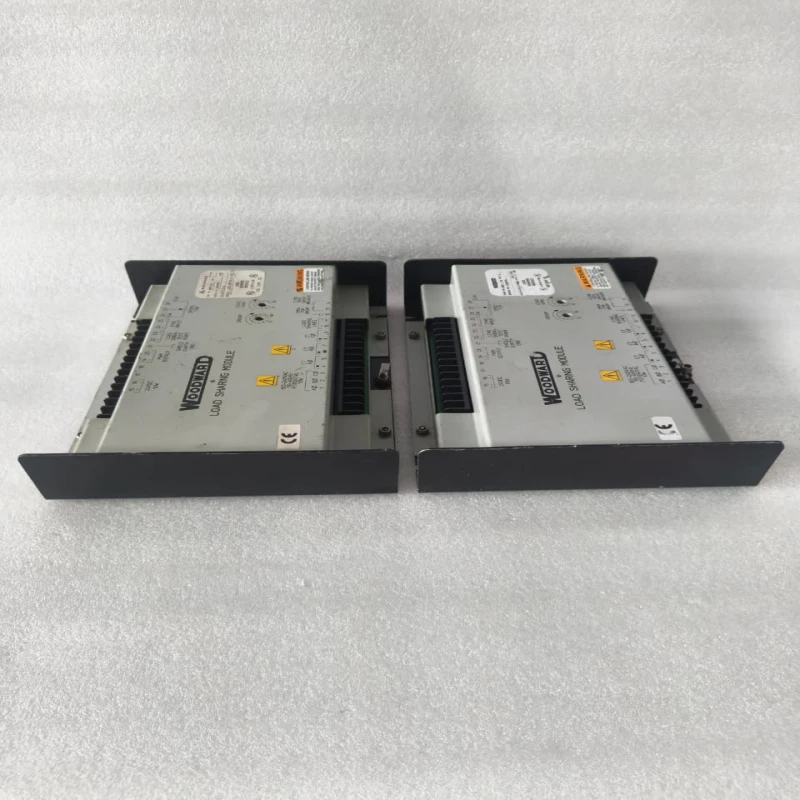

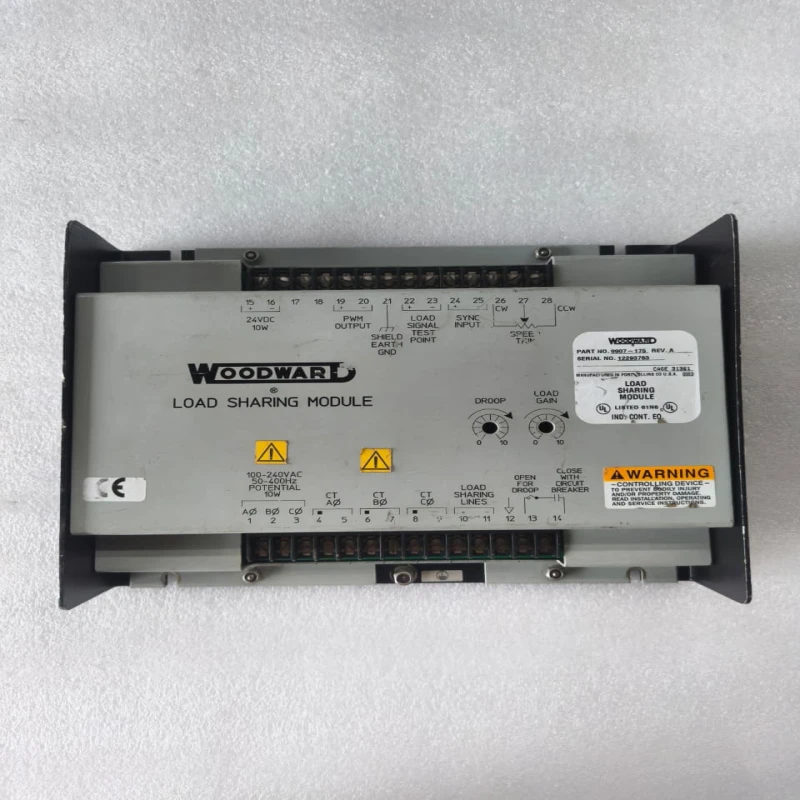

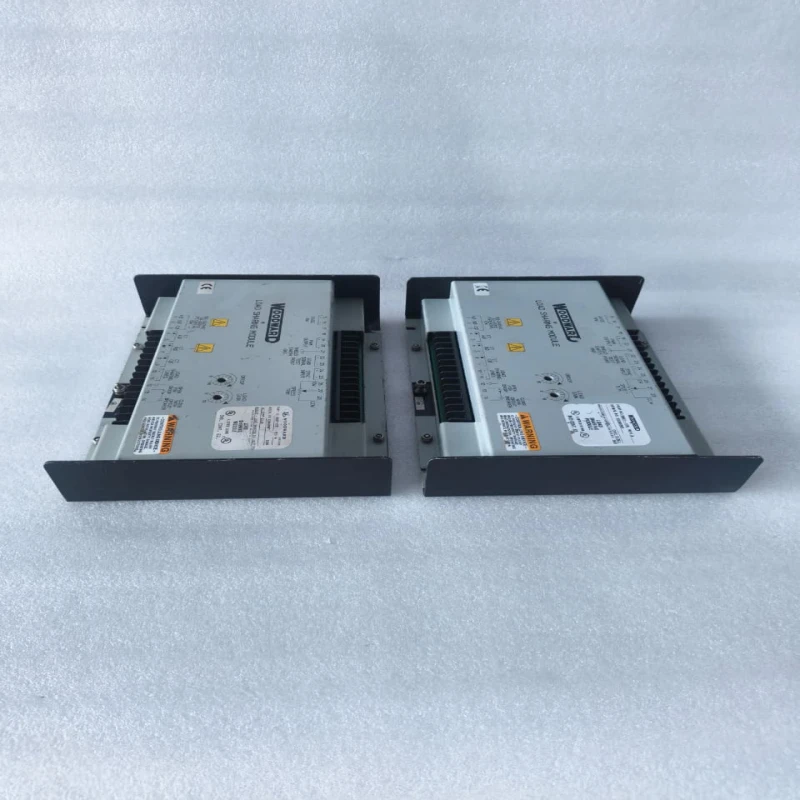

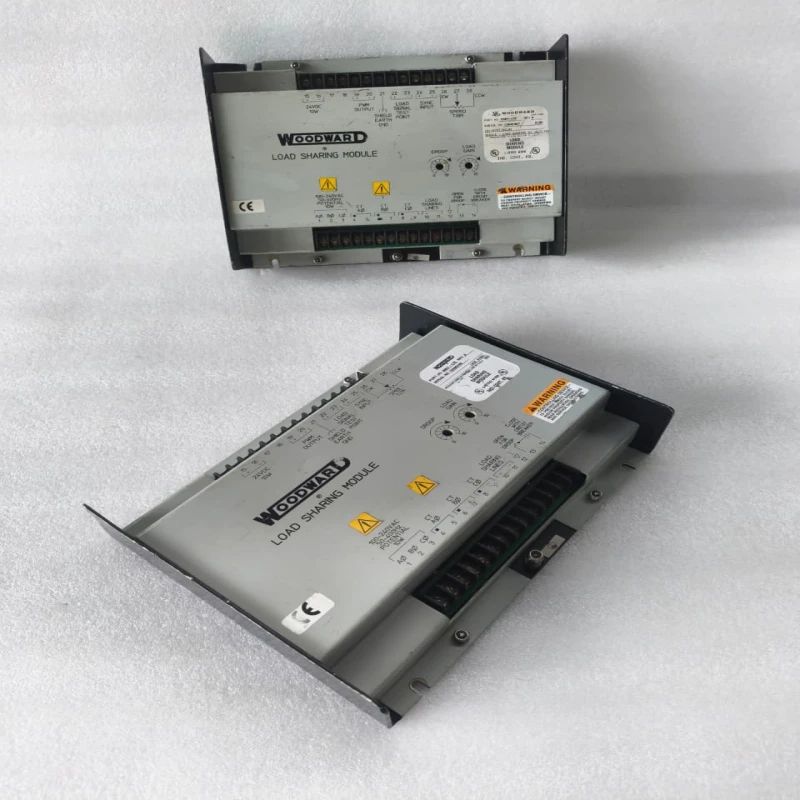

Status: Used Excellent Working (As per photos)
Country Of Origin: Made In USA
Shipping: Fast & Safe Dispatch Across India & Worldwide Available.
The Woodward 9907-175 Load Sharing Module is a high-performance generator control module designed to provide precise load sharing and synchronization between multiple generator sets operating in parallel. It continuously monitors generator load and automatically adjusts engine governor control signals to ensure balanced real power (kW) distribution.
This industrial-grade module is widely used in power generation, marine propulsion systems, oil & gas facilities, manufacturing plants, hospitals, data centers, and commercial buildings where uninterrupted power and efficient generator management are critical.
Equipped with adjustable Droop and Load Gain controls, the Woodward 9907-175 enables fine-tuning of generator performance for optimum stability and reliability. Its robust construction and proven Woodward engineering make it a trusted solution for demanding industrial environments.
Whether replacing an existing controller or upgrading a generator control system, the Woodward 9907-175 offers dependable operation, accurate load control, and improved overall generator efficiency.
