Yokogawa F3AD08-5R FA-M3 Series 8-Channel 16-Bit Analog Input Module A/D Converter, 0-5V / 1-5V / 0-10V / ±10V DC
Specification Details
Brand: Yokogawa
Product Series: FA-M3
Model: F3AD08-5R
Product Type: Analog Input Module / A/D Converter
Input Channels: 8
Input Configuration: Differential
A/D Resolution: 16-bit
Input Signal Type: DC Voltage
Input Range 1: 0–5 VDC
Input Range 2: 1–5 VDC
Input Range 3: 0–10 VDC
Input Range 4: -10 to +10 VDC
Sampling Period: 50 μs/point
Supply Voltage: 5 VDC
Current Consumption: 210 mA
Terminal Connection: 18-point terminal block
Terminal Screw: M3.5
Dimensions: 28.9 × 100 × 106.1 mm
Approx. Weight: 200 g
Features: Scaling, Offset, Filtering, Data Hold, Self-Diagnosis
Mounting: FA-M3 system/module mounting
Manufacturer: Yokogawa Electric Corporation
Image Model/Suffix: F3AD08 / -5R
Country Of Origin: Made In Korea
Condition: Used Excellent Working (As Per Photos)
Shipping: Fast & Safe Worldwide Shipping Available.
The Yokogawa F3AD08-5R is a high-resolution 8-channel analog input module and A/D converter designed for Yokogawa FA-M3 industrial control systems. It converts external analog voltage signals into digital data that can be processed by the PLC/controller.
The module provides 8 differential analog input channels and uses a 16-bit A/D converter, making it suitable for applications requiring accurate and reliable analog signal acquisition. Supported input ranges include 0–5 VDC, 1–5 VDC, 0–10 VDC and -10 to +10 VDC.
With a reported sampling period of approximately 50 μs, the F3AD08-5R is suitable for relatively high-speed industrial measurement and control applications. The module also supports functions such as input scaling, offset adjustment, filtering, peak/trough data holding and hardware self-diagnosis.

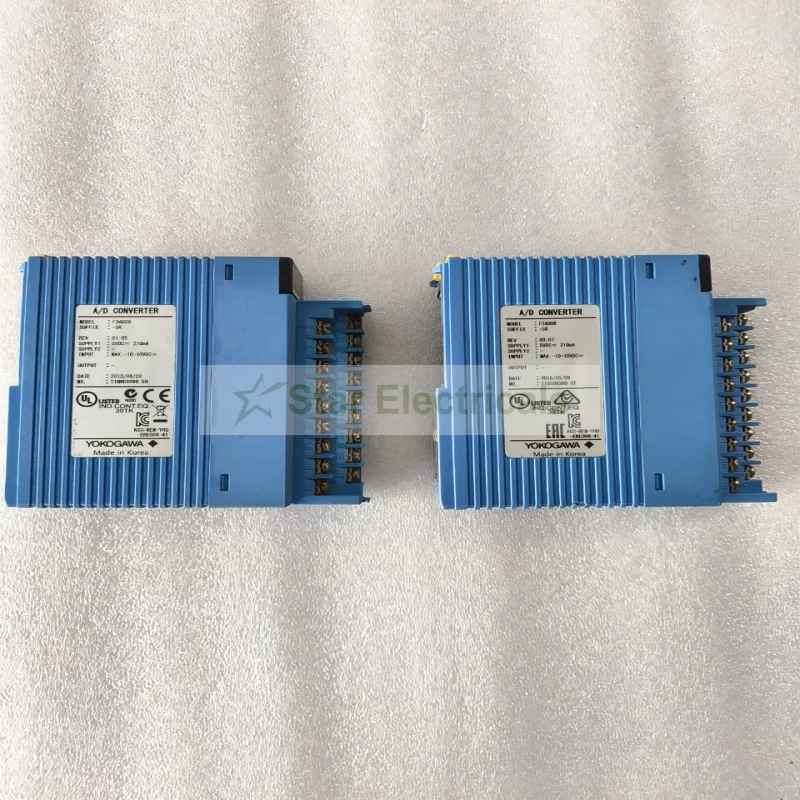

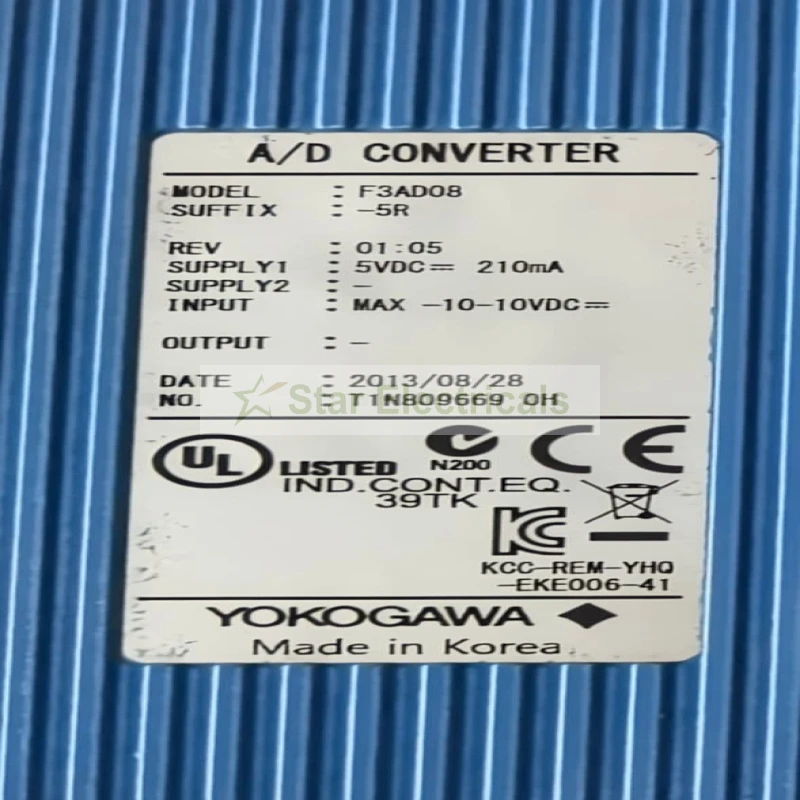

The unit shown in the supplied image is marked MODEL: F3AD08, SUFFIX: -5R, with 5 VDC / 210 mA supply information and a manufacturing date of 2013/08/28.
