Yokogawa F3BU09-0N 9-Slot Base Module | FA-M3 PLC CPU I/O Backplane | Made in Japan
Specification Details
Brand: Yokogawa
Part Number: F3BU09-0N
Series: FA-M3
Product Type: Base Module / PLC Backplane
Number of Slots: 9
Number of I/O Slots: 8
Compatible Power Supplies: F3PU20 / F3PU30 / F3PU26 / F3PU36
Current Consumption: 50 mA at 5 V DC
Full Width: 322 mm
Mounting Width: 313 mm
Mounting: Panel mounting, M4-size screws
Cooling: Natural-air cooled
Weight: Approx. 340 g
Style: S1
Revision: A4
Applications: Industrial Automation, PLC Control, Machine Control, Process Control
Country Of Origin: Made In Korea
Condition: Used Excellent Working (As Per Photos)
Shipping: Fast & Safe Worldwide Shipping Available.

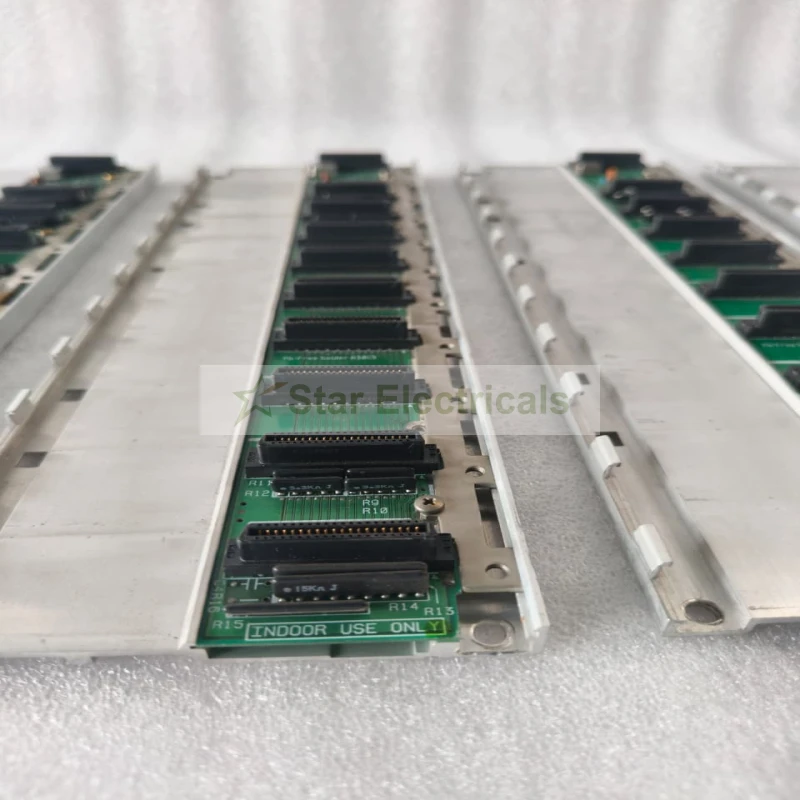

The Yokogawa F3BU09-0N is a 9-slot base module designed for the Yokogawa FA-M3 PLC system. It functions as the physical backplane for assembling a modular PLC controller, providing slots for the power supply, CPU and I/O or special-function modules.
The F3BU09-0N accommodates 9 total module positions, with 8 usable CPU/I/O positions when one CPU module is installed. It is compatible with Yokogawa F3PU20, F3PU30, F3PU26 and F3PU36 power supply modules, making it suitable for larger FA-M3 control configurations.

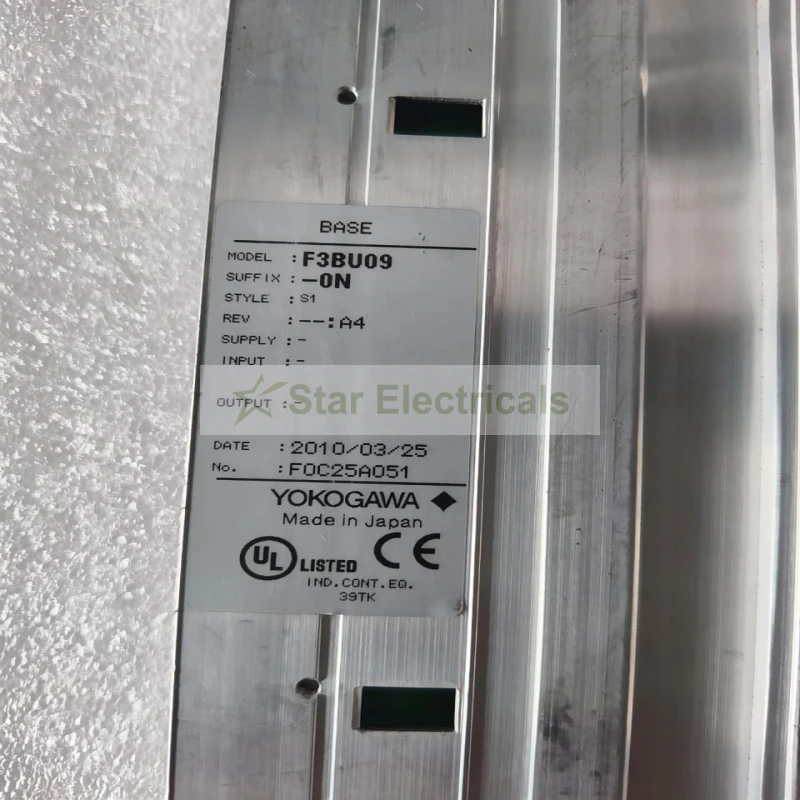

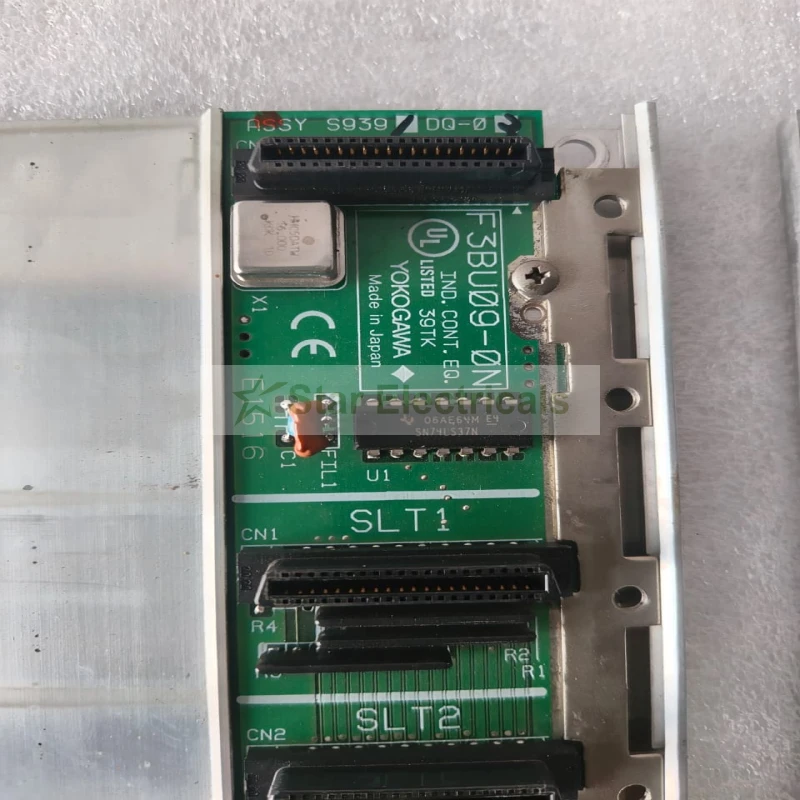

The photographed unit is marked F3BU09-0N, Style S1, Revision A4, and carries Yokogawa, UL and CE markings. The nameplate also indicates Made in Japan.
This base module is suitable for industrial automation systems requiring a reliable modular PLC platform for machine control, process automation, production equipment and other FA-M3 applications.
