MTL Instruments MTL3041 4/20mA Repeater Power Supply for 2-Wire Transmitters | MTL 3000 Series | Intrinsically Safe Ex ia IIC
Specification Details
Brand: MTL Instruments
Model: MTL3041
Series: MTL 3000 Series
Product Type: 4/20mA Repeater Power Supply
Application: 2-Wire Transmitters
Signal Range: 4–20mA
Full-Range Signal: 0–20mA
Supply Voltage: 20–35V DC
Transmitter Voltage: 17.5V minimum at 20mA
Maximum Open-Circuit Output: 28V
Maximum Output Current: 93mA
Safe-Area Load Resistance: 0–800Ω
Safe-Area Output Resistance: >1MΩ
Maximum Ambient Temperature: 60°C
Safety Description: 28V, 300Ω, 93mA, Um = 250V
Hazardous Area: Zone 0, IIC, T4–T6 when suitably certified
Certification Marking: EEx ia IIC / Baseefa Ex 86B2031
Power Requirement: 100mA typical at 24V with 20mA signal
Typical Power Dissipation: 2.0W at 24V with 20mA signal
Maximum Power Dissipation: 2.5W at 35V with 20mA signal
Transfer Accuracy: Better than 20µA at 20°C
Temperature Drift: <1µA/°C
Response Time: Typically 60ms to settle within 10%
Weight: Approx. 160g
Mounting: MTL 3000 Series module
Country of Origin: Made In INDIA
Condition: Used Excellent Working (As Per Photos)
Shipping: Fast & Safe Worldwide Shipping Available.
The MTL Instruments MTL3041 4/20mA Repeater Power Supply is an industrial signal-conditioning and transmitter power-supply module from the MTL 3000 Series. It is designed to provide a DC supply to a 2-wire 4–20mA transmitter located in a hazardous area while accurately repeating the transmitter's current signal to a separate safe-area circuit.
The MTL3041 uses a fully floating circuit arrangement, making it suitable for applications where field wiring may be grounded intentionally or accidentally. Its isolated safe-area circuit helps interface field transmitters with control systems, monitoring equipment and other instrumentation while minimizing measurement problems associated with shared cable voltage drops.
According to the manufacturer's technical documentation, the unit provides 17.5V minimum at 20mA for the transmitter and supports a safe-area load resistance of up to 800Ω. The repeater offers high transfer stability, with published transfer accuracy better than 20µA at 20°C.

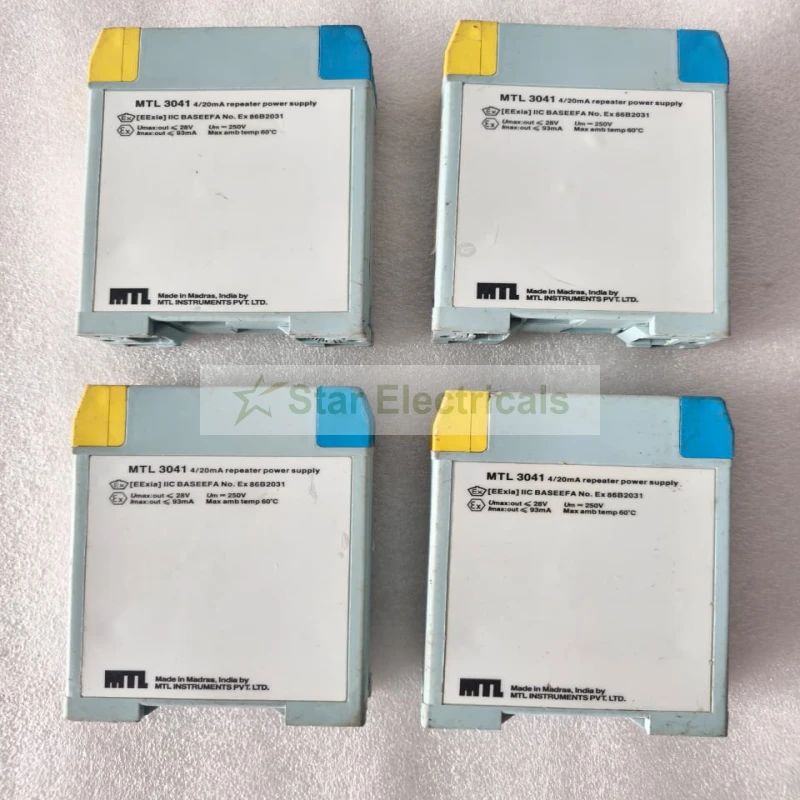

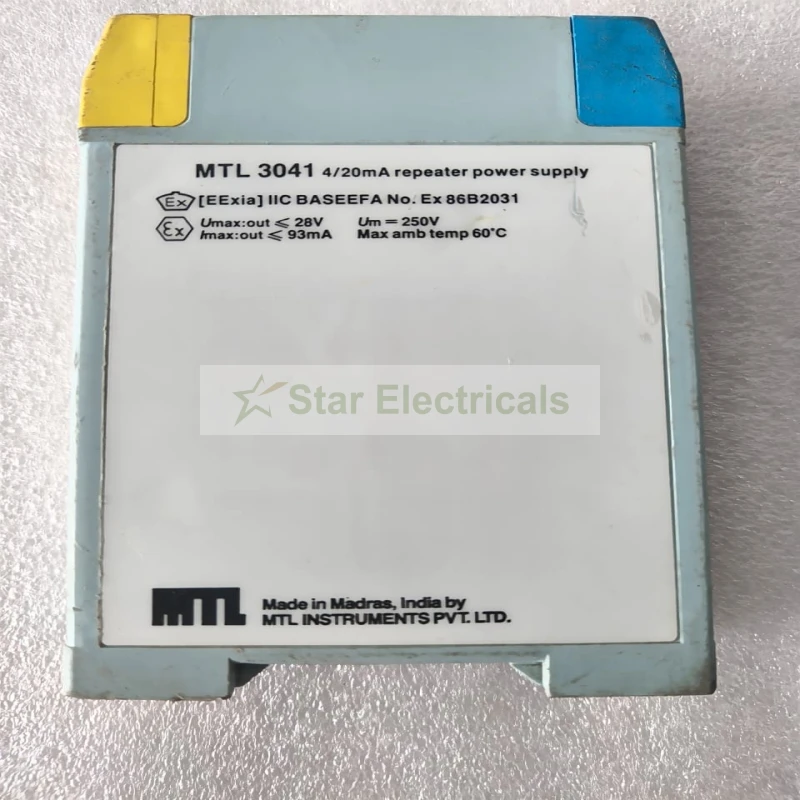

The product label shown in the supplied image identifies the unit as MTL 3041 4/20mA Repeater Power Supply, with Umax out ≤28V, Imax out ≤93mA, Um = 250V and maximum ambient temperature of 60°C.
