R. STAHL 9143/10-124-150-10 Ex i Power Supply | ISpac Intrinsically Safe Power Supply | 24V AC/DC, 150mA
Specification Details
Brand: R. STAHL
Model: 9143/10-124-150-10
Series: ISpac 9143
Type: Ex i Power Supply
Function: Intrinsically Safe Field Circuit Power Supply
Auxiliary Supply: 24V AC/DC
Supply Voltage Range: 20–28V AC / 18–35V DC
Maximum Output Voltage Uo: 12.4V
Maximum Output Current Io: 150mA
Maximum Output Power Po: 1.86W
Nominal Output Voltage: Approximately 9.5–11.8V
Nominal Output Current: 130mA
Output Type: Intrinsically Safe Ex i
Isolation: Galvanically isolated output
Application: Transmitters, controllers, solenoid valves, light barriers
Mounting: DIN rail / ISpac mounting system
Weight: Approx. 200g
Country of Origin: Made In Germany

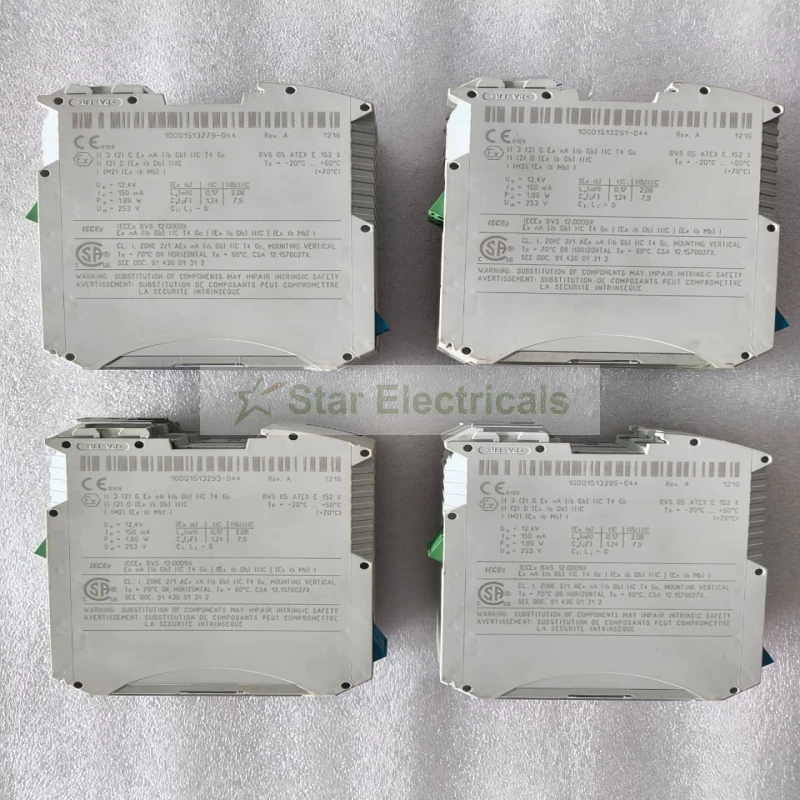

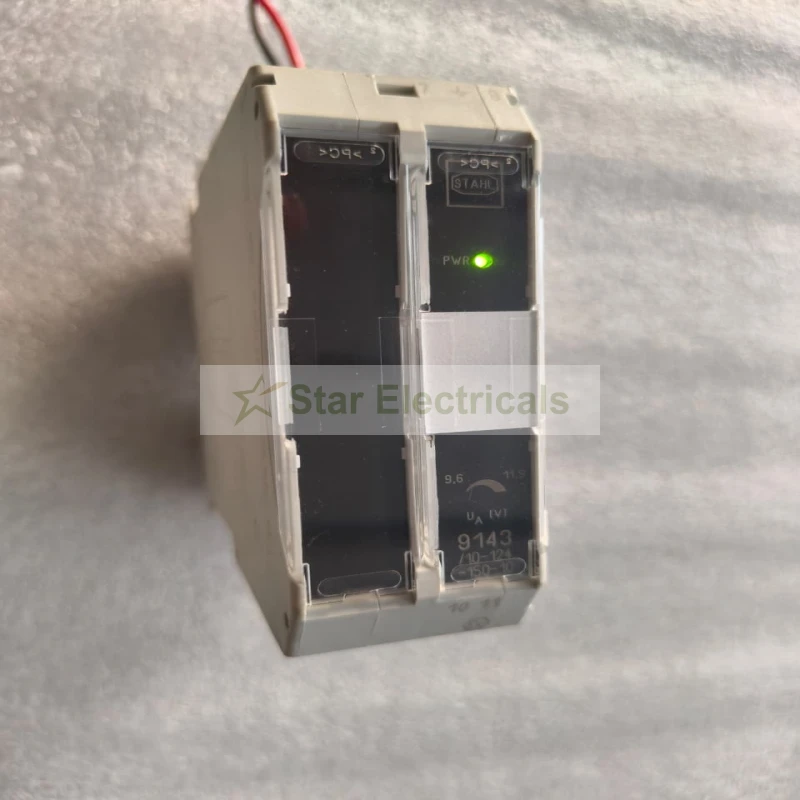

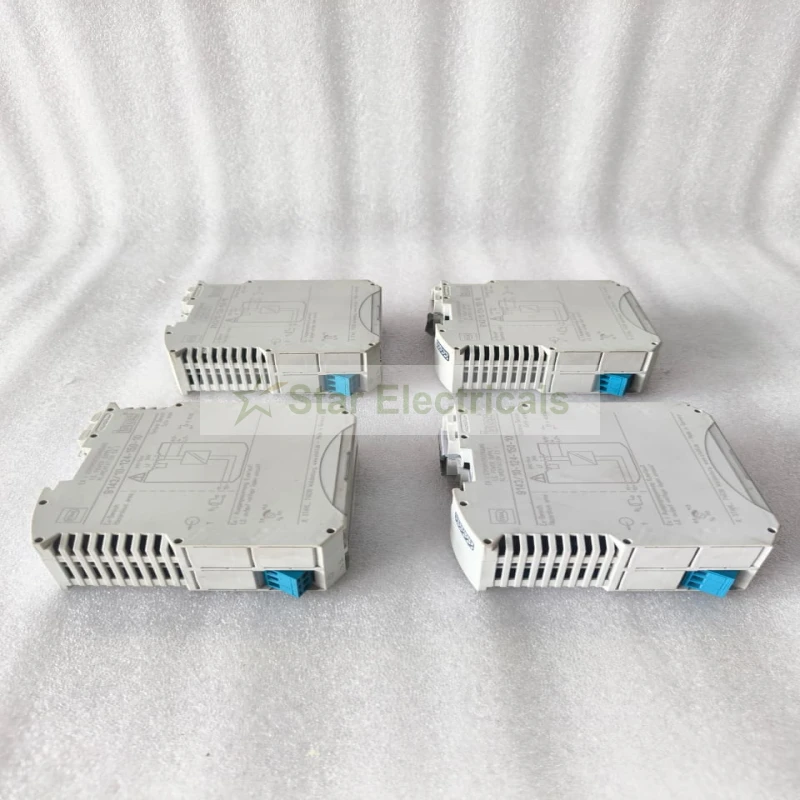

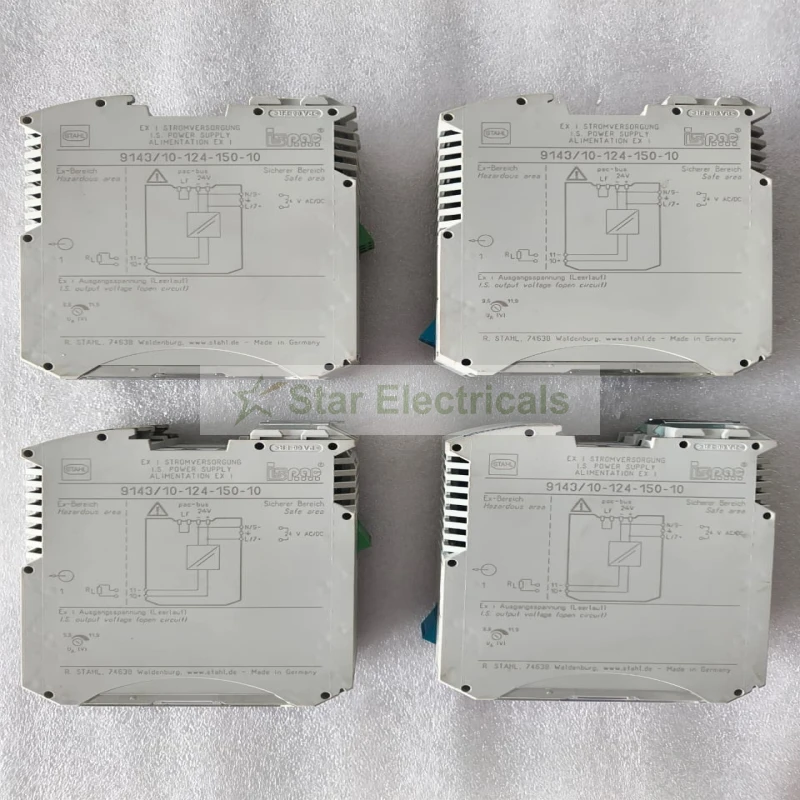

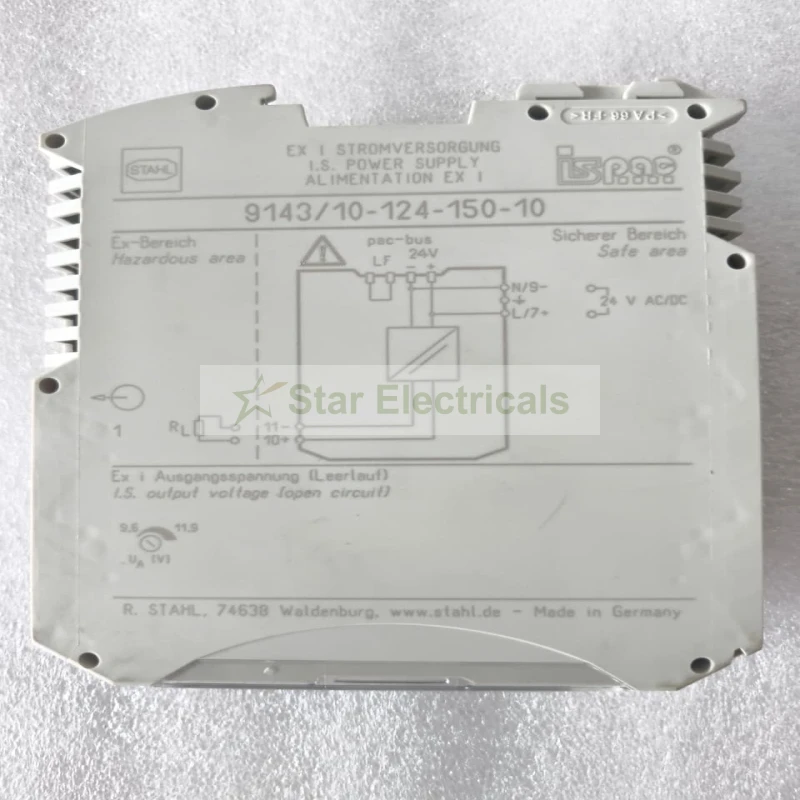

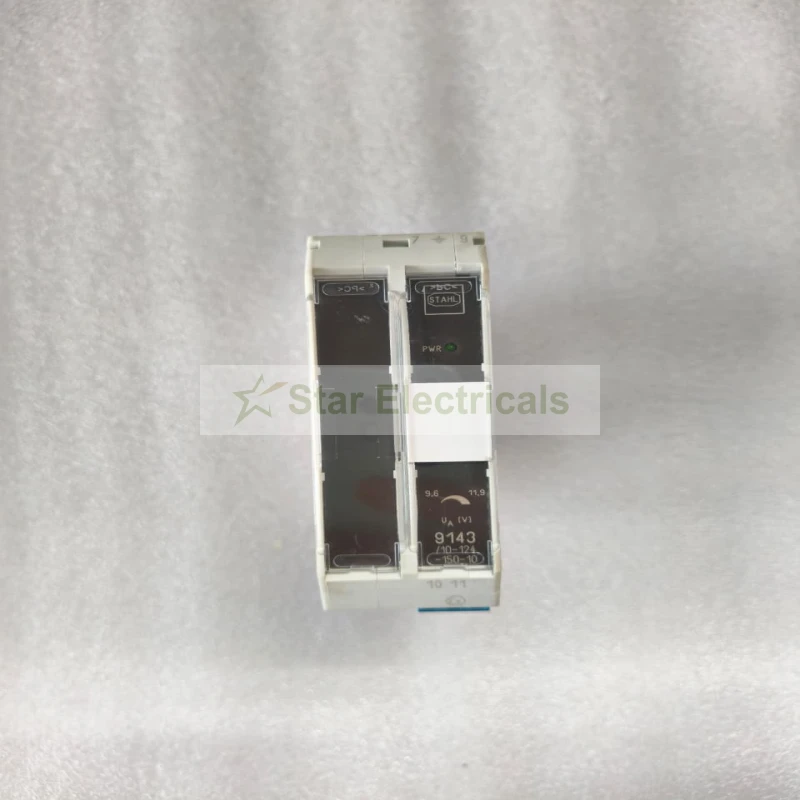

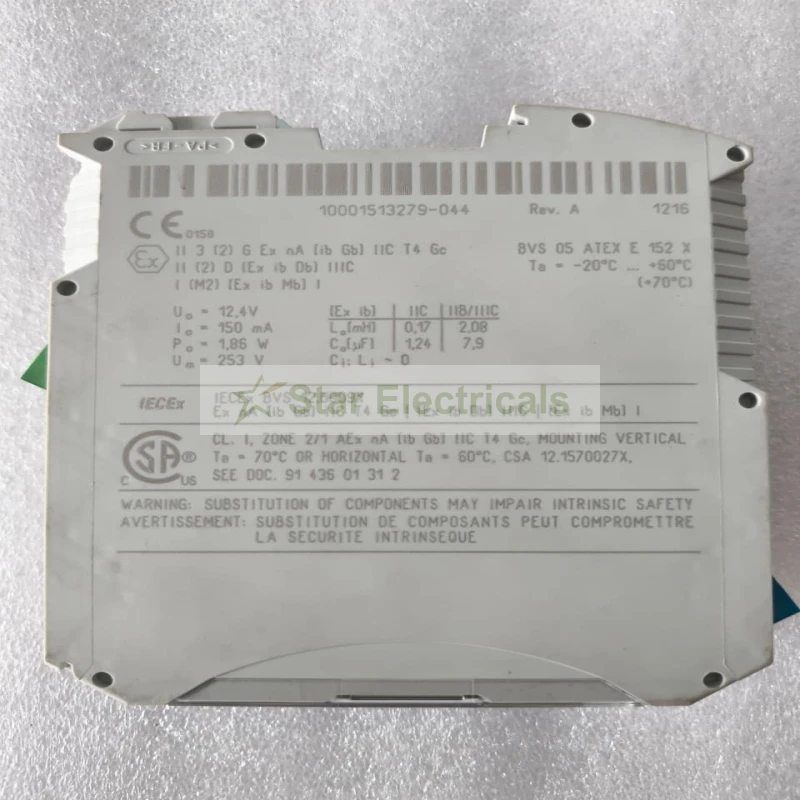

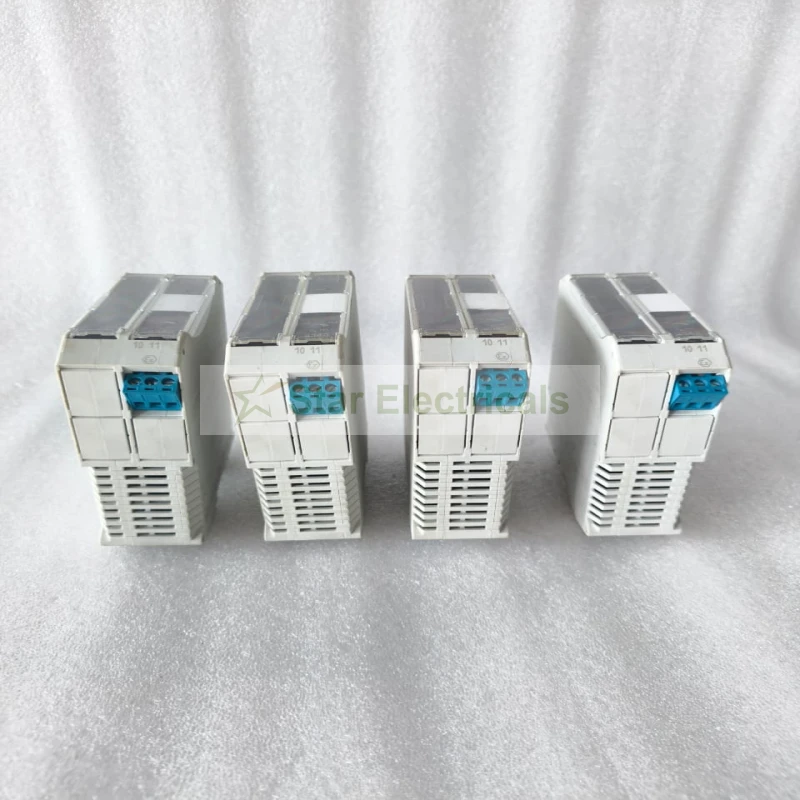

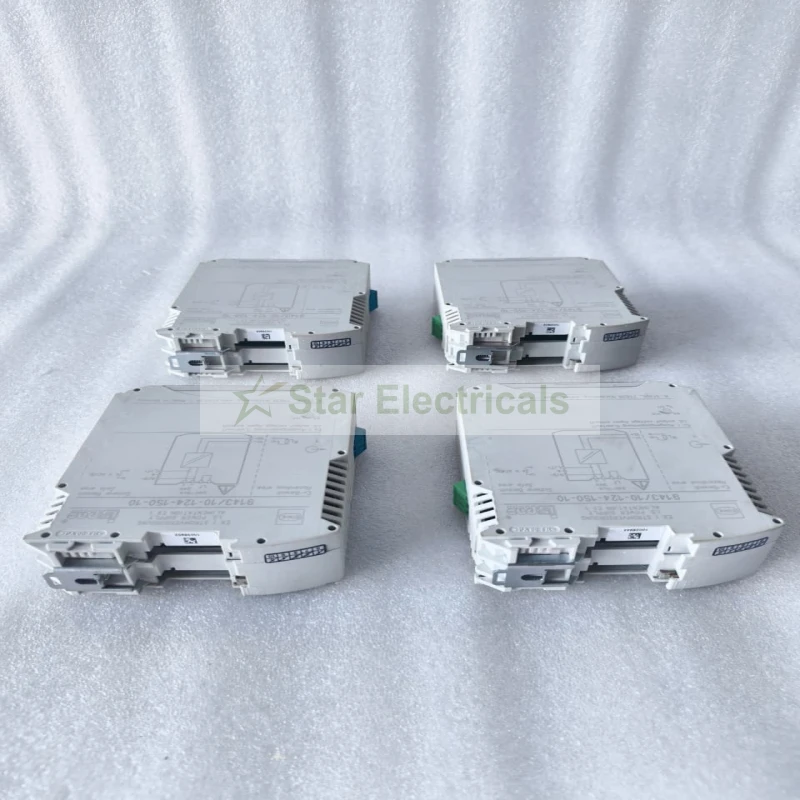

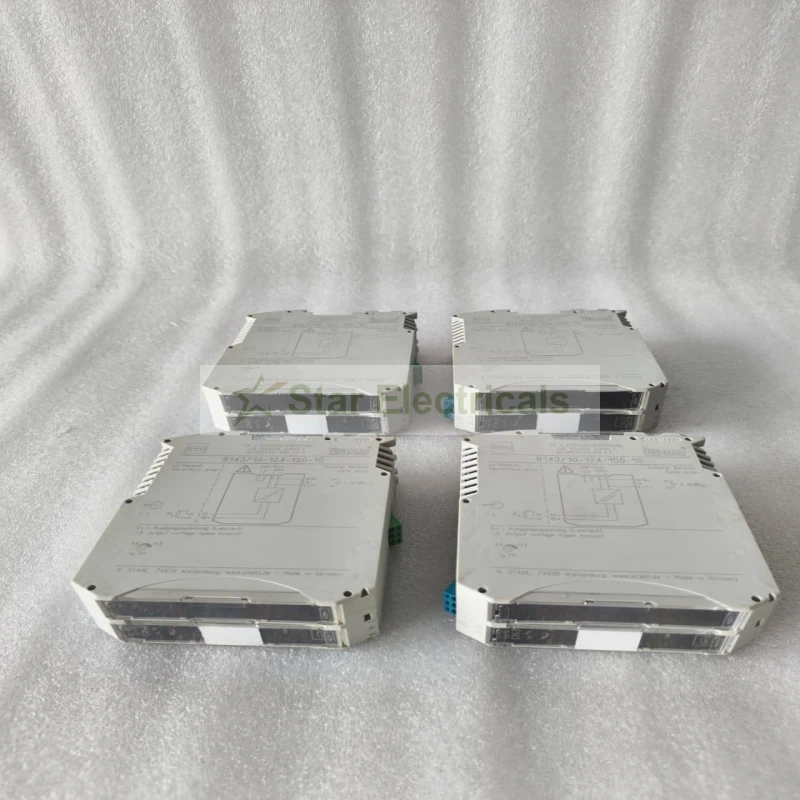

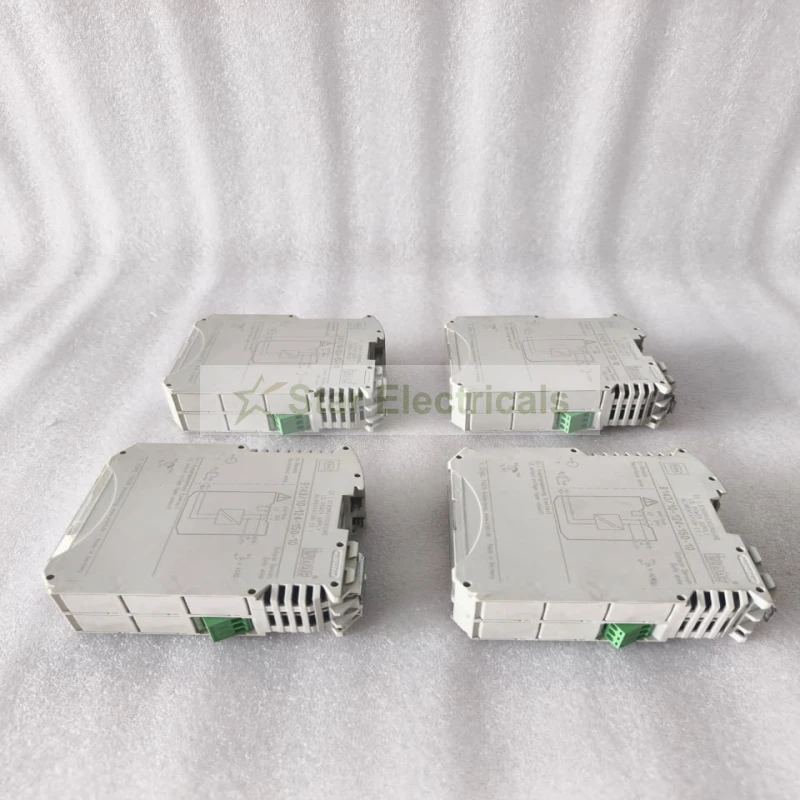

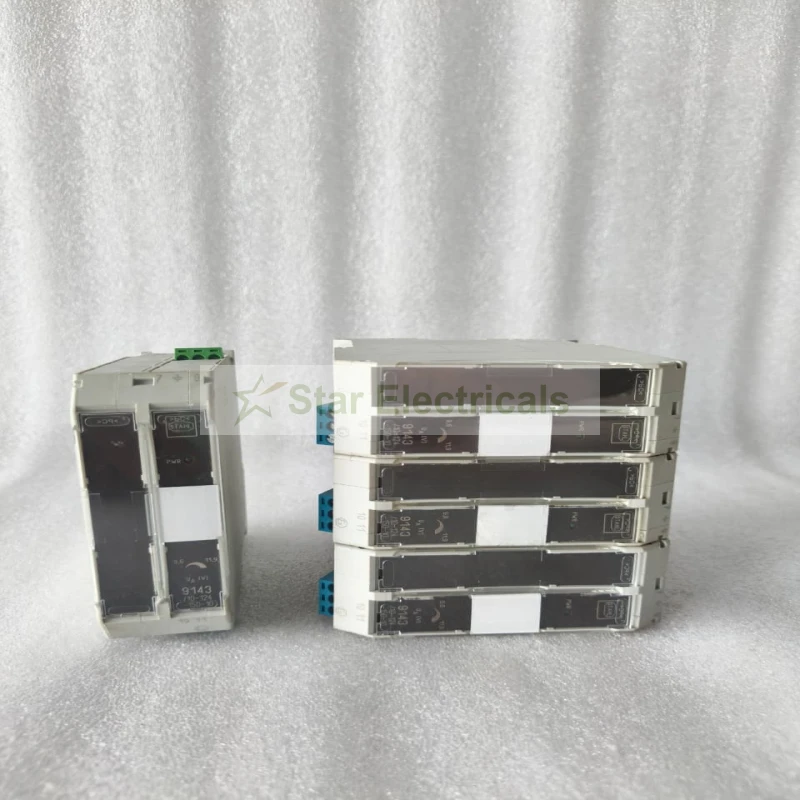

Condition: Used Excellent Working (As Per Photos)
Shipping: Fast & Safe Worldwide Shipping Available.
The R. STAHL 9143/10-124-150-10 ISpac Ex i Power Supply is a compact industrial power supply/interface module designed for supplying field devices with intrinsically safe electrical power in hazardous-area applications.
This model operates from a 24V AC/DC auxiliary supply and provides an intrinsically safe output with a maximum output voltage of 12.4V, maximum output current of 150mA, and maximum output power of 1.86W. The Series 9143 is intended for applications including 3-wire and 4-wire transmitters, controllers, solenoid valves and light barriers.
The module features a compact ISpac design and galvanic isolation between the output and power supply, making it suitable for industrial automation, process instrumentation and hazardous-area control systems. The exact certification and installation conditions should be verified against the rating plate and applicable product documentation before installation.
