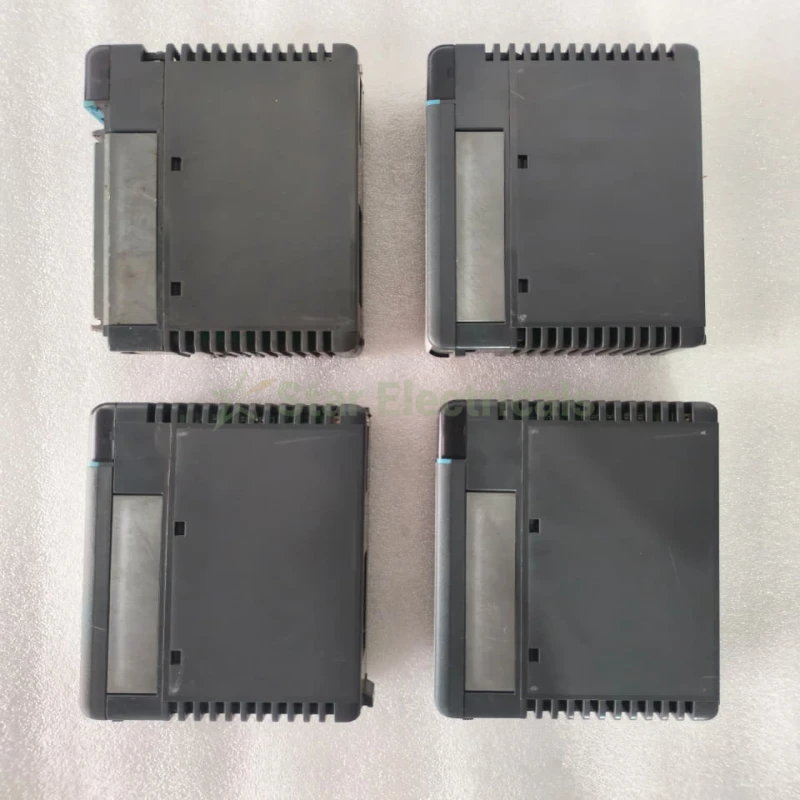

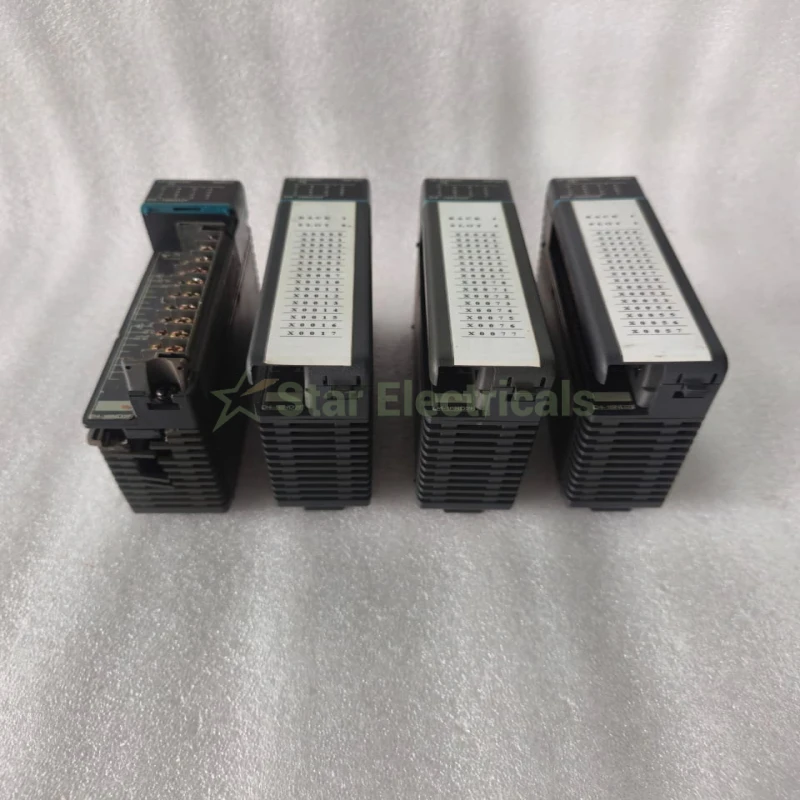

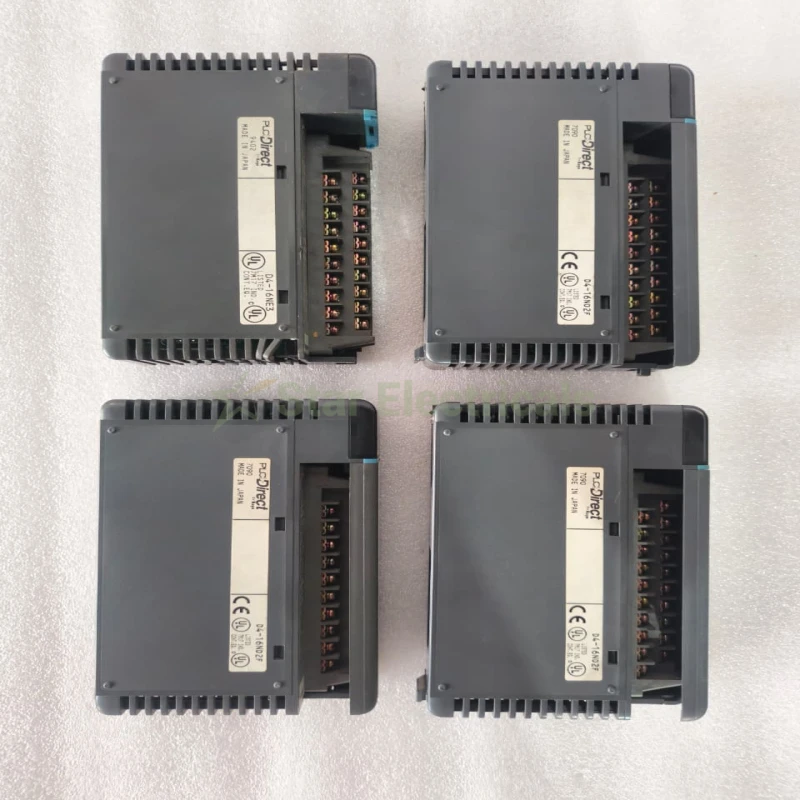

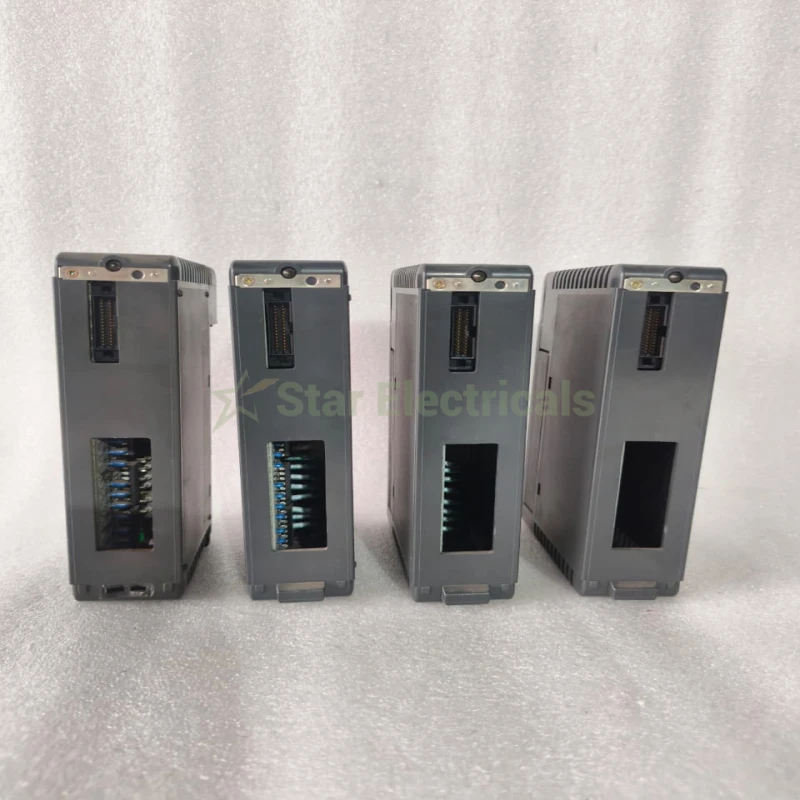

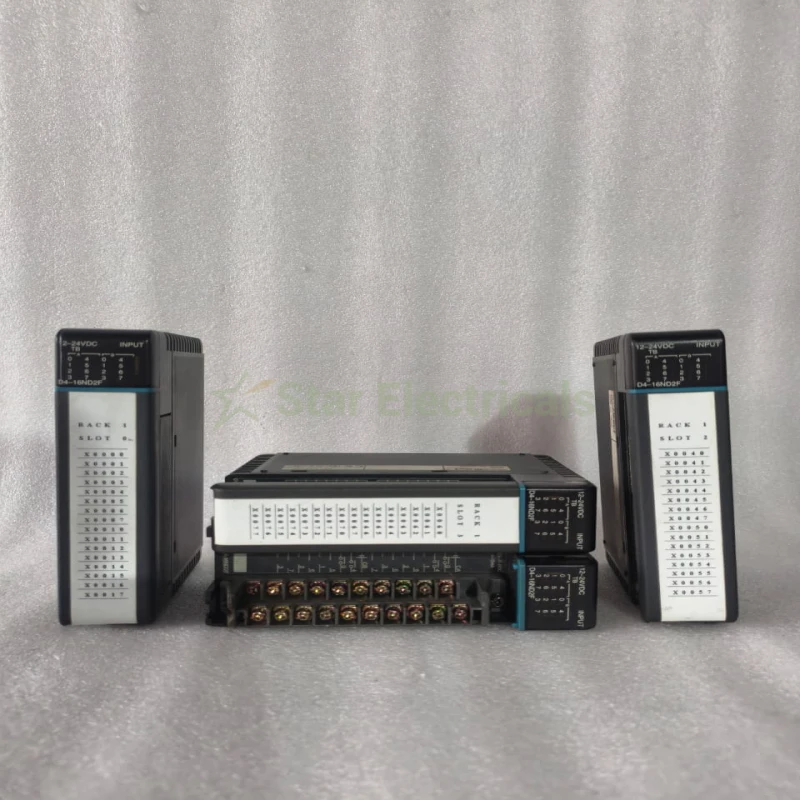

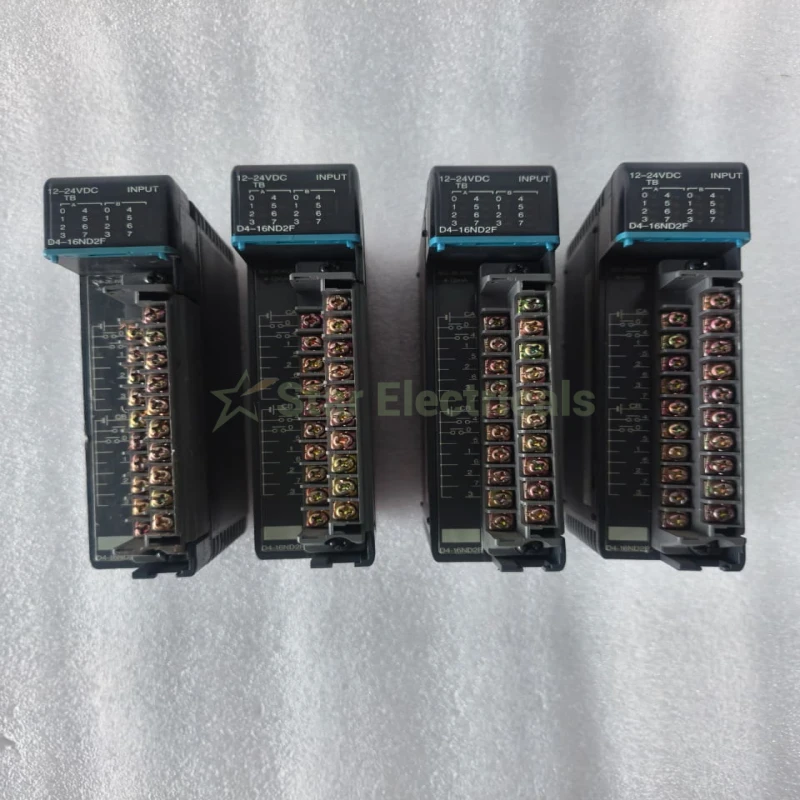

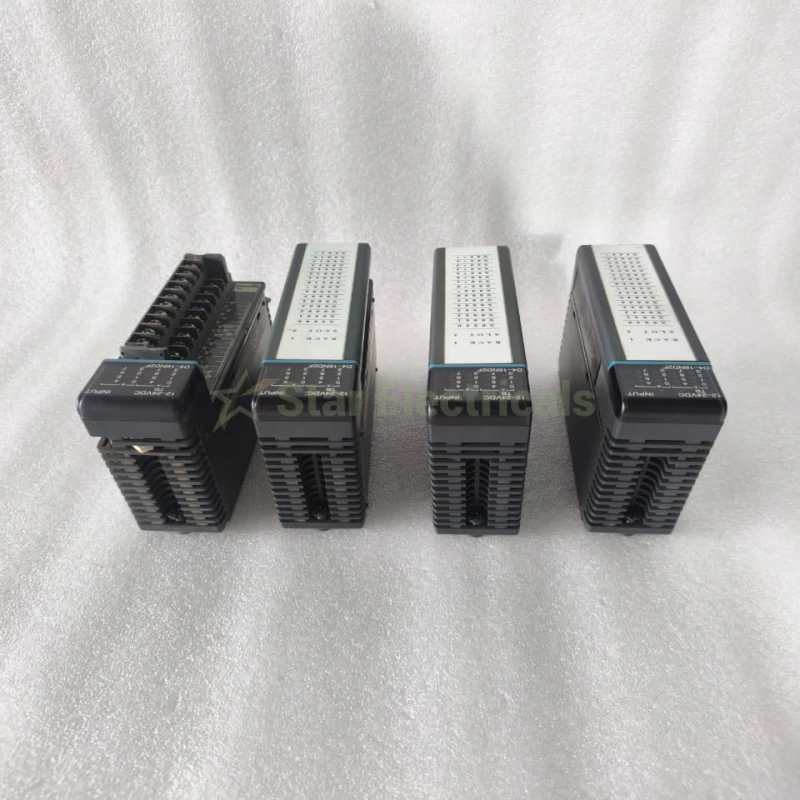

Koyo D4-16ND2F DirectLOGIC DL405 Fast Response DC Input Module

Name: Koyo D4-16ND2F DirectLOGIC DL405 Fast Response DC Input Module
Brand: OTHER
SKU: 1760
Availability: InStock

Pricing Status

USED

Specification Details
Brand: KOYO
Series: DirectLOGIC DL405 Series
Part Number: D4-16ND2F
Discrete Input Type: Sourcing / NPN-Compatible Field Devices
Input Impedance: 3.2 kΩ @ 12VDC / 2.9 kΩ @ 24VDC
Base Power Required: 5VDC, 150 mA Max
Net Weight: 250 grams (8.8 oz)
Agency Approvals: UL Listed
Status:- Used Excellent Working (As Per Photos)
Country of Origin:- Made In Japan
Shipping:- Fast & Safe Worldwide Shipping Available.

chat WhatsApp

verified_user

Free Shipping

For Indian customers

verified_user

Secure Payment

100% protected

verified_user

Export Quality

Authentic & Certified

verified_user

Fast Delivery

Worldwide shipping

The Koyo DirectLOGIC DL405 D4-16ND2F is a high-density, 16-point discrete input module engineered specifically for the robust DL405 Programmable Logic Controller (PLC) series. Built for heavy-duty industrial automation applications, this premium expansion module handles 12-24 VDC input signals using current-sourcing logic circuitry. [1, 2, 3]

What sets the D4-16ND2F apart from standard modules is its ultra-low 1 ms fast response speed, vital for tracking high-speed sensors, limits, or pulse mechanisms where accuracy is non-negotiable.

Featuring two separate isolated commons (each routing 8 input points), it prevents cross-talk and mitigates ground loops across distinct field devices. The integrated logic-side LED status display panel allows maintenance teams to run instant optical health checks directly on the module. Programmed easily via AutomationDirect DirectSOFT Programming Software, this modular component balances longevity with top-tier performance benchmarks.
