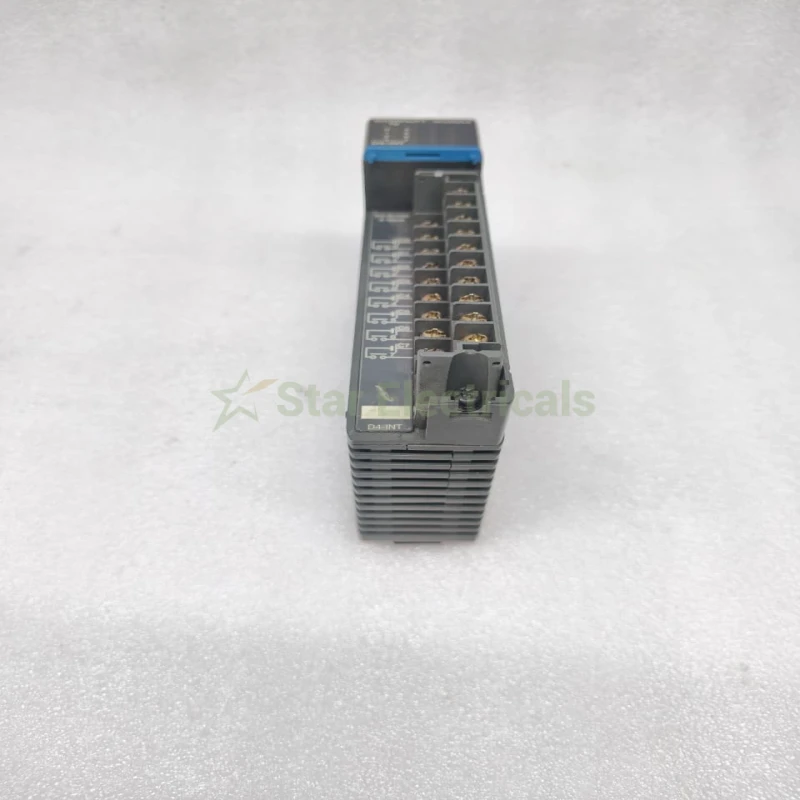

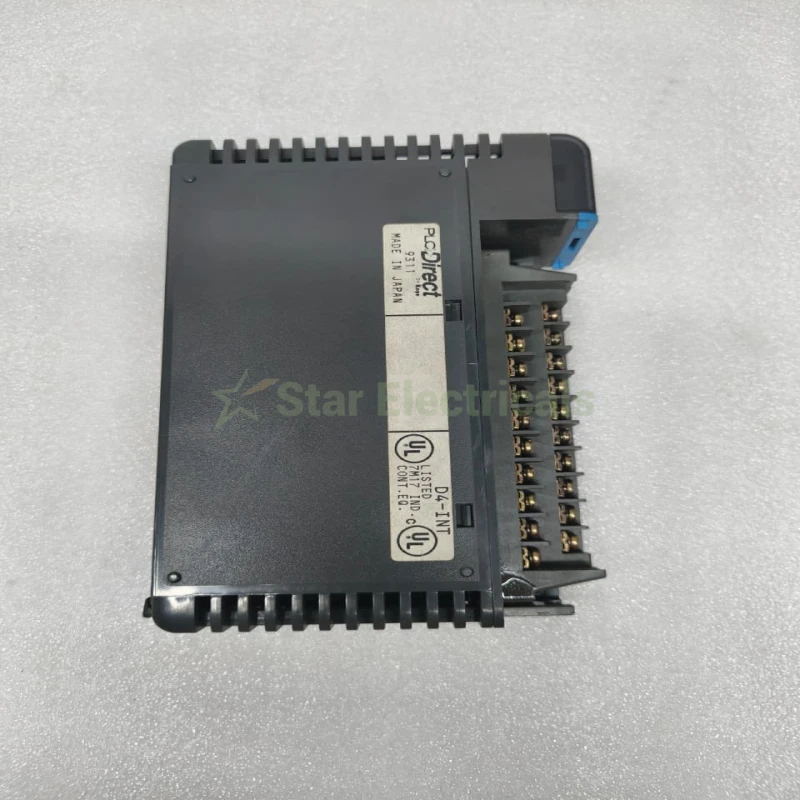

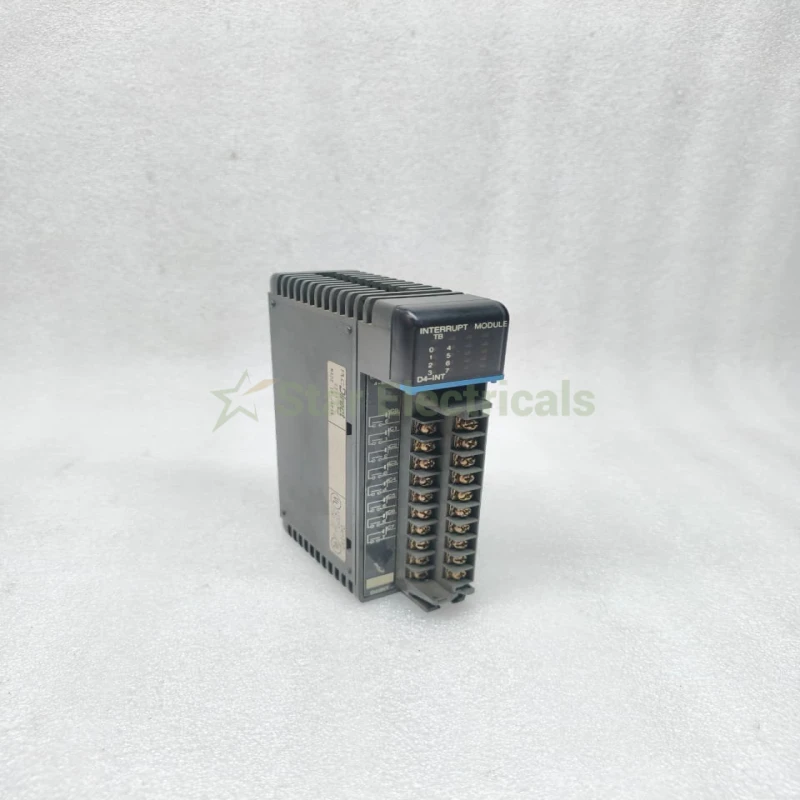

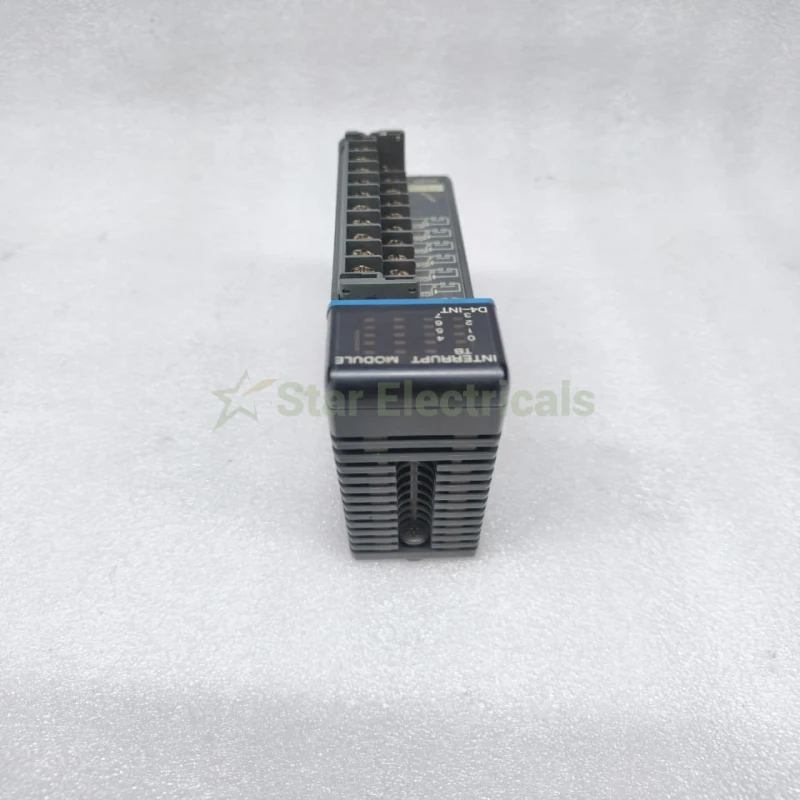

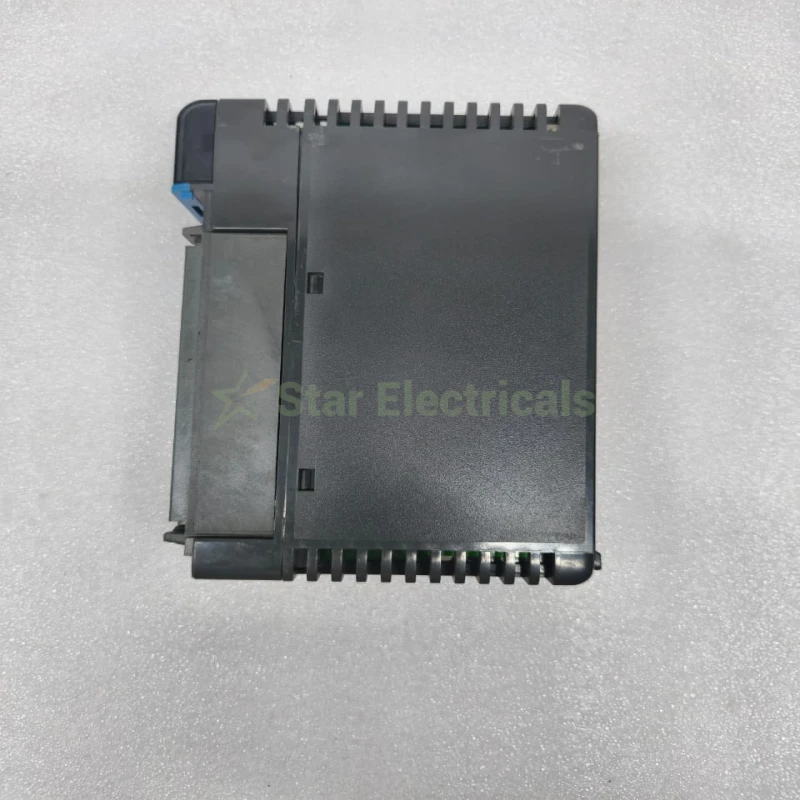

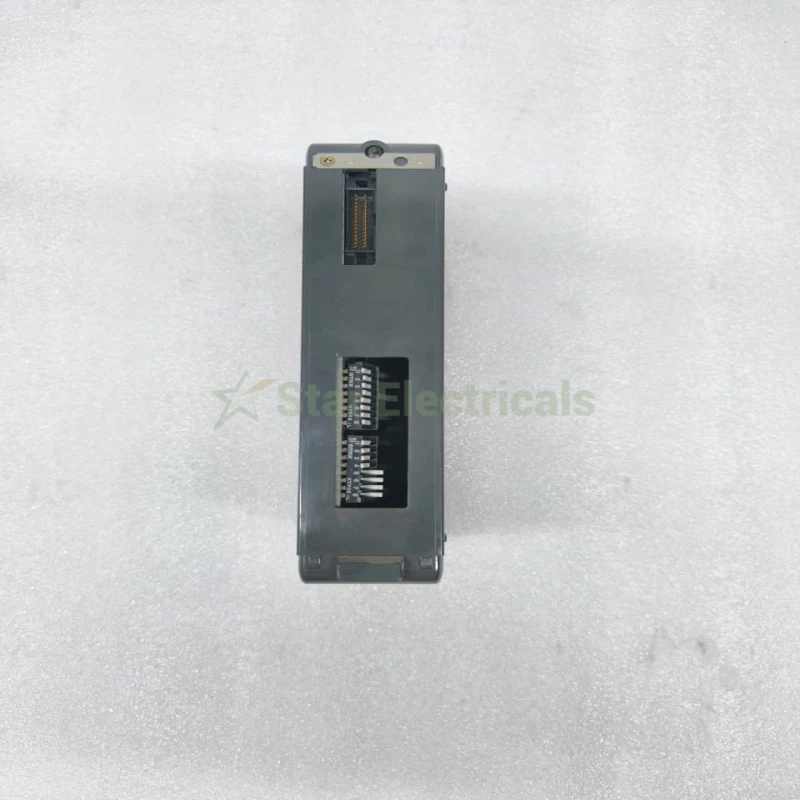

Koyo D4-INT PLCDirect DL405 Interrupt Input Module

Name: Koyo D4-INT PLCDirect DL405 Interrupt Input Module
Brand: OTHER
SKU: 1762
Availability: InStock

Pricing Status

USED

Specification Details
Brand: KOYO
Series Compatibility: DirectLOGIC 405 Series
Part Number: D4-INT
Product Name: Interrupt Input Module
Voltage Range: 10.20 to 26.4 VDC
Current Consumption: Rated at 4.4 mA at 12 VDC and 9.0 mA at 24 VDC per active channel.
On/Off Threshold levels: Turn-on voltage registers above 9.5 VDC; turn-off registers below 3.0 VDC.
Status:- Used Excellent Working (As Per Photos)
Country of Origin:- Made In Japan
Shipping:- Fast & Safe Worldwide Shipping Available.

chat WhatsApp

verified_user

Free Shipping

For Indian customers

verified_user

Secure Payment

100% protected

verified_user

Export Quality

Authentic & Certified

verified_user

Fast Delivery

Worldwide shipping

The PLCDirect D4-INT is an 8-channel interrupt input module designed specifically for the DirectLOGIC DL405 PLC series. This specialized utility module is engineered for time-critical industrial automation applications that cannot afford to wait for standard CPU cyclic program scans.

When an external process signal is detected on one of its 8 channels, the module triggers an immediate hardware interrupt, diverting the CPU to execute emergency stop commands, precise synchronization routines, or immediate high-speed counting instructions. With integrated, adjustable input filtering ranges and versatile sinking/sourcing compatibility, the D4-INT maximizes operational safety and processor performance in demanding manufacturing environments.
