Koyo D4-16ND2F DirectLOGIC Fast Response Input Module
Specification Details
Brand: KOYO
Model: D4-16ND2F
Series: DirectLOGIC DL405 / D4 Series
Module Type: Discrete DC Input Module
Number of Inputs: 16 Digital DC Inputs
Input Type: Current Sourcing
Rated Input Voltage: 12–24 VDC
Input Voltage Range: 10.2–26.4 VDC
Fast Response: Approx. 1 ms OFF→ON and 1 ms ON→OFF
Isolated Commons: 2 isolated commons, 8 inputs per common
Terminal: Removable 20-point terminal block
Status Indicators: Logic-side input indicators
Base Power Requirement: 5 VDC, 150 mA max
Weight: Approx. 250 g

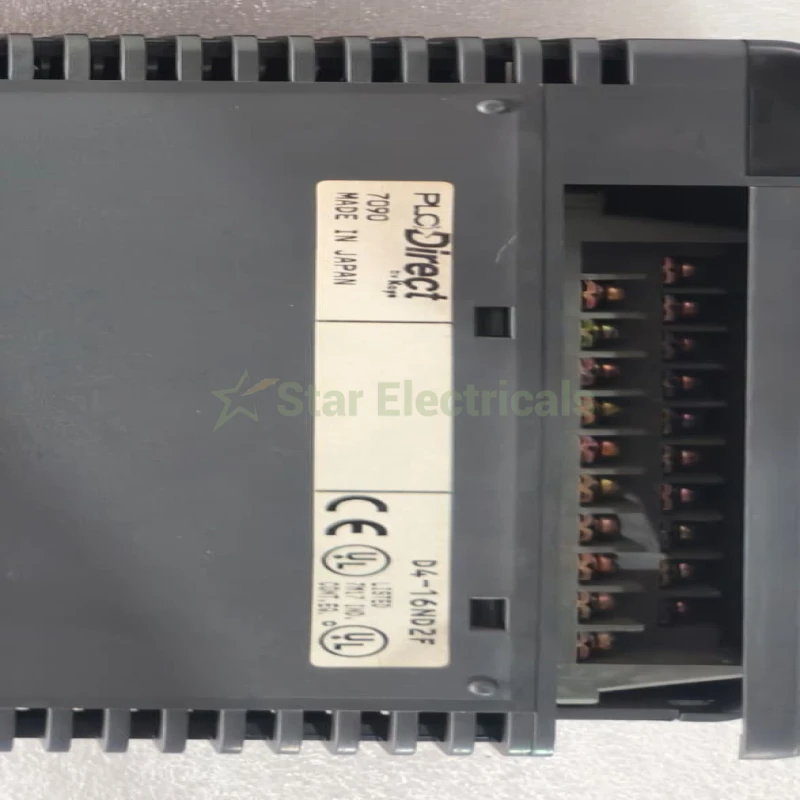

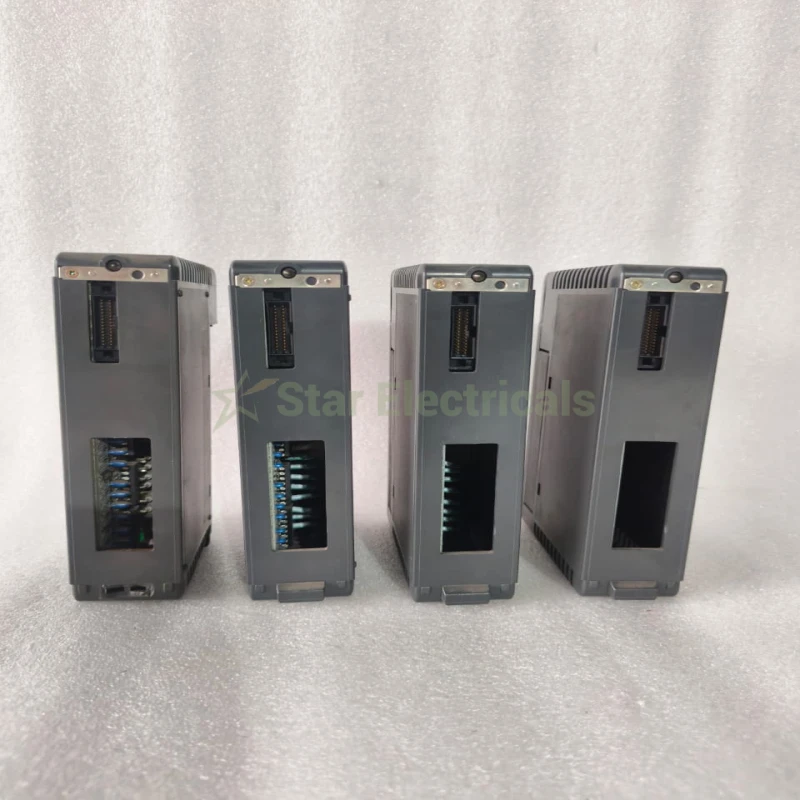

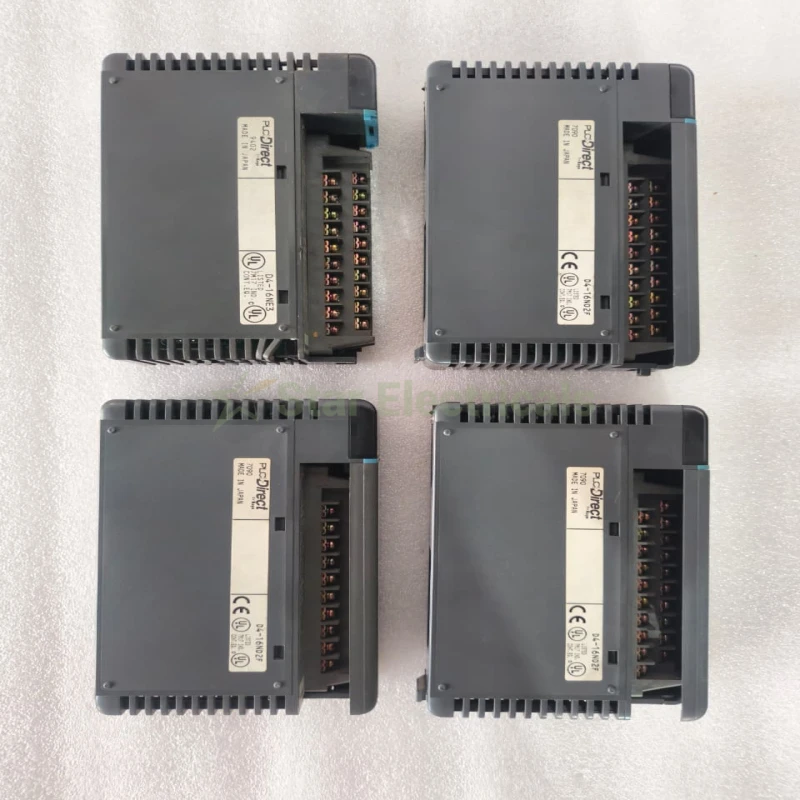

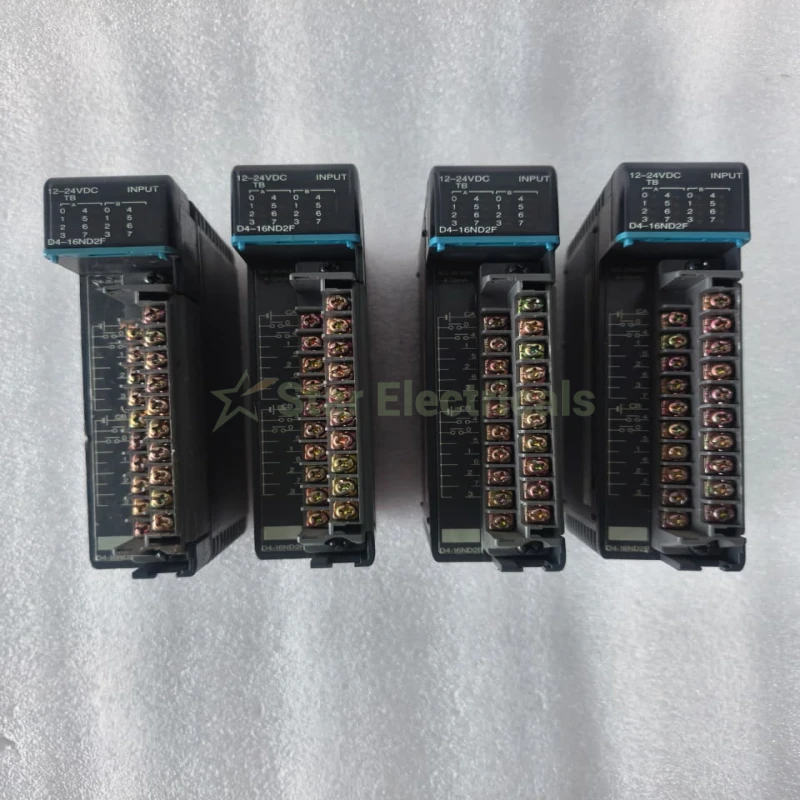

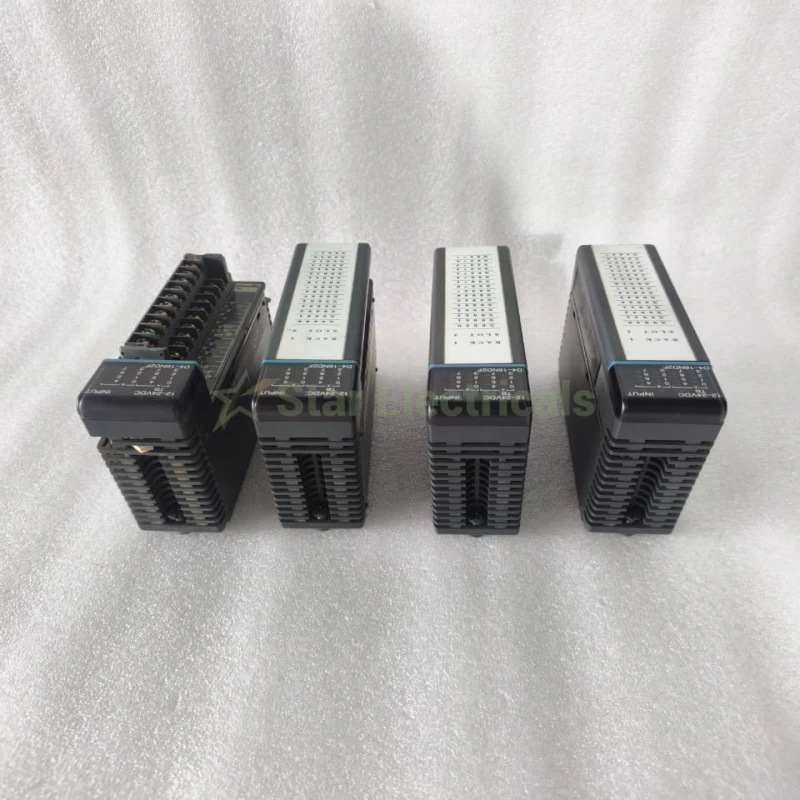

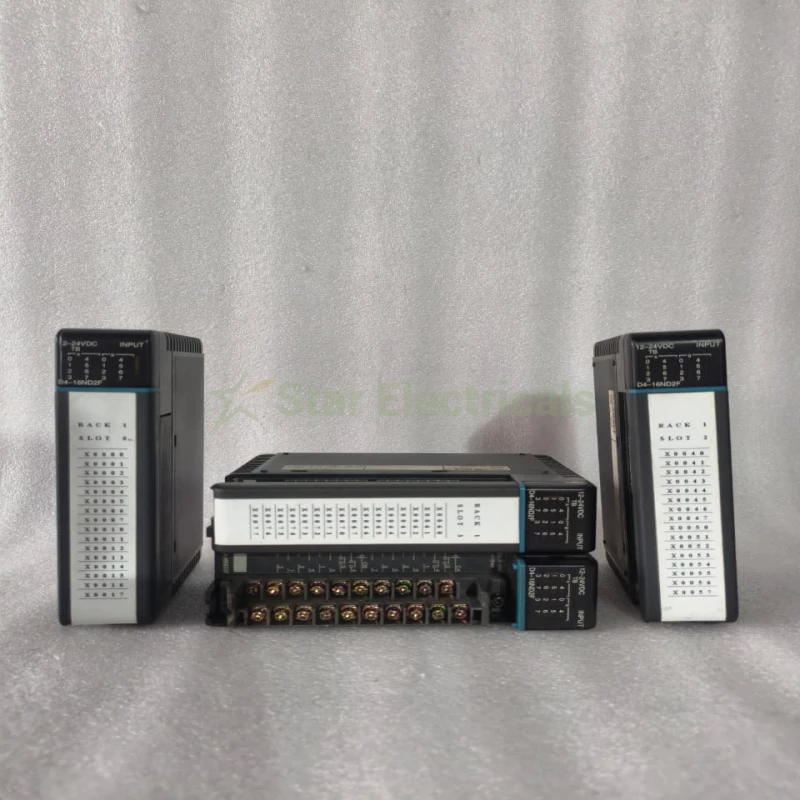

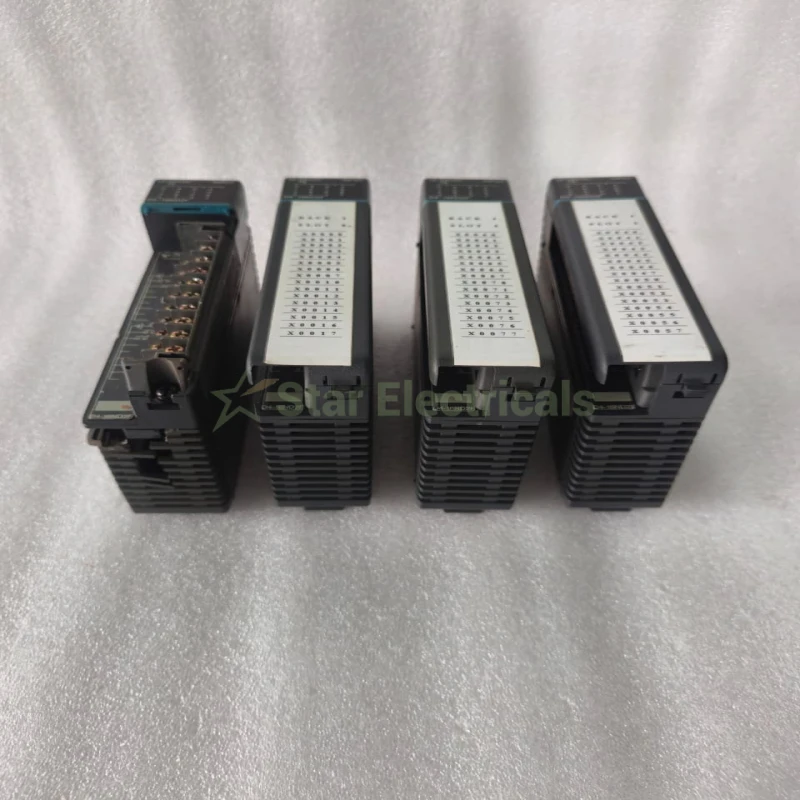

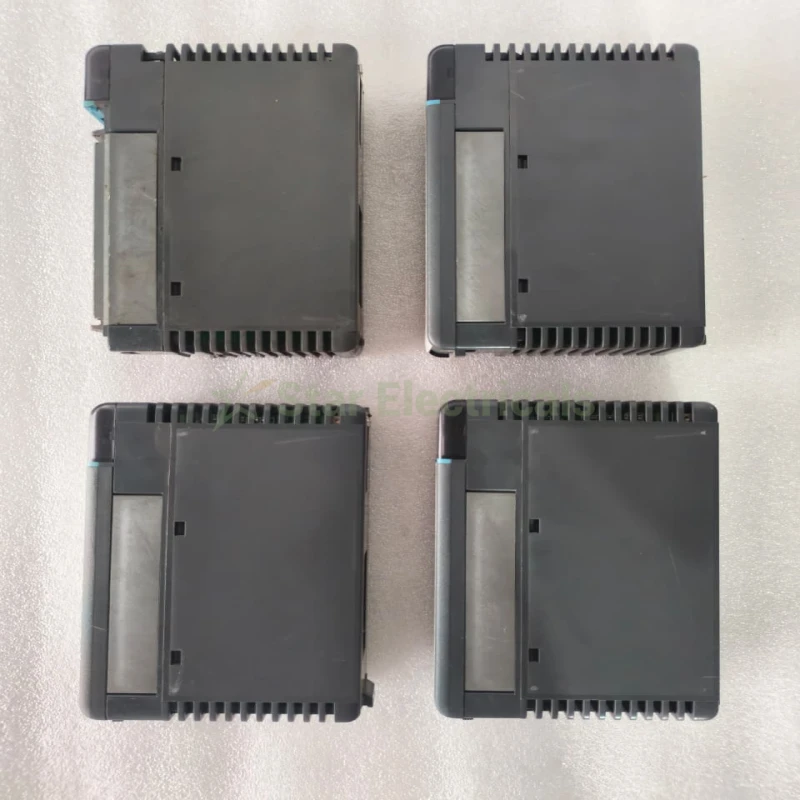

Status:- Used Excellent Working (As Per Photos)
Country of Origin:- Made In Japan
Shipping:- Fast & Safe Worldwide Shipping Available.
The KOYO DirectLOGIC D4-16ND2F is a 16-point fast-response DC digital input module designed for the DirectLOGIC DL405 PLC system. It provides reliable monitoring of 12–24 VDC field devices such as proximity sensors, photoelectric sensors, switches, push buttons, limit switches and other discrete automation signals.
The module supports current-sourcing inputs with an input voltage range of 10.2–26.4 VDC. It features two isolated input commons, with 8 input points assigned to each common, providing flexibility for industrial control wiring.
