Koyo D4-16TD1 DirectLOGIC DL405 Sinking DC Output Module

Name: Koyo D4-16TD1 DirectLOGIC DL405 Sinking DC Output Module
Brand: OTHER
SKU: 1758
Availability: InStock

Pricing Status

USED

Specification Details
Brand: Koyo
Part Number: D4-16TD1
PLC Compatibility: DirectLOGIC DL405 Series
Product Name: Sinking DC Output Module
Number of Outputs: 16 (Current Sinking)
Output Type: NPN Open Collector
Operating Voltage Range: 4.5–26.4 VDC (Nominal 5–24 VDC)
Max Current Capacity: 0.5A per point / 3.0A per common
Commons: 2 Internally Connected Commons
Fusing: 1 Built-In 5A Fuse Per Common (Non-replaceable)
Base Power: Required5VDC @ 200 mA maximum
Response Time: 0.5 ms (OFF to ON and ON to OFF)

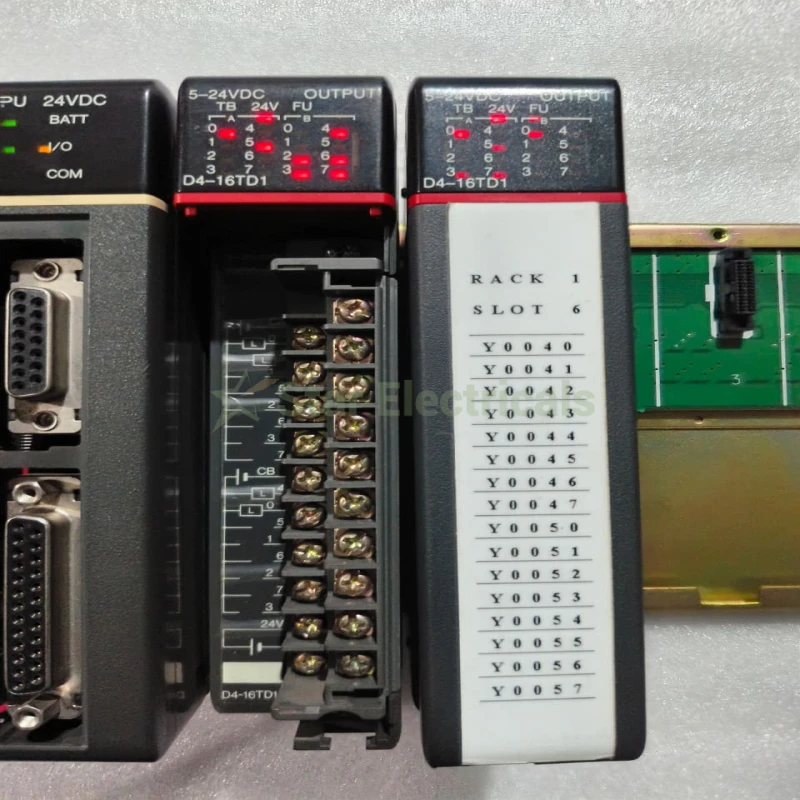

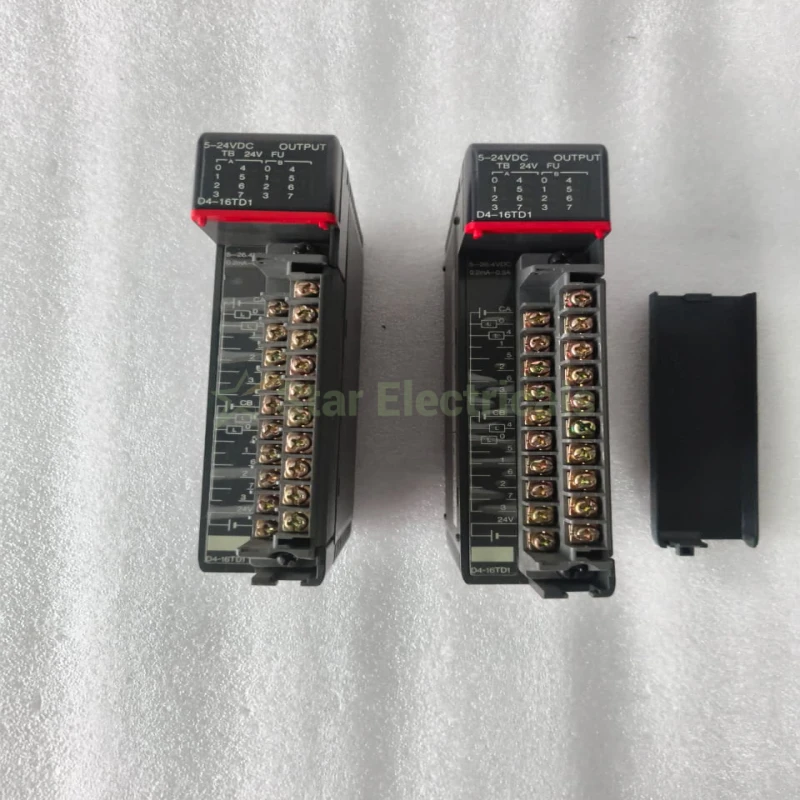

Termination Type: Removable Screw Terminal Block
Status:- Used Excellent Working (As Per Photos)
Country of Origin:- Made In Japan
Shipping:- Fast & Safe Worldwide Shipping Available.

chat WhatsApp

verified_user

Free Shipping

For Indian customers

verified_user

Secure Payment

100% protected

verified_user

Export Quality

Authentic & Certified

verified_user

Fast Delivery

Worldwide shipping

The PLCDirect/AutomationDirect D4-16TD1 is a high-reliability discrete DC output module built specifically for the DirectLOGIC DL405 PLC series platform. Engineed to deliver robust performance in heavy-duty factory environments, this module offers 16 sinking outputs divided into two internally connected commons. Utilizing solid-state NPN open collector outputs, it drives small relays,

solenoids, pilot lamps, and electronic actuator signals smoothly without the rapid wear typical of mechanical relays.

Its modular form factor easily seats into any standard DL405 base rack slot, drawing up to 200mA of 5V base power. The module also comes equipped with a removable front terminal connector wiring assembly, allowing technicians to instantly replace or inspect units without complete rewire tasks.
