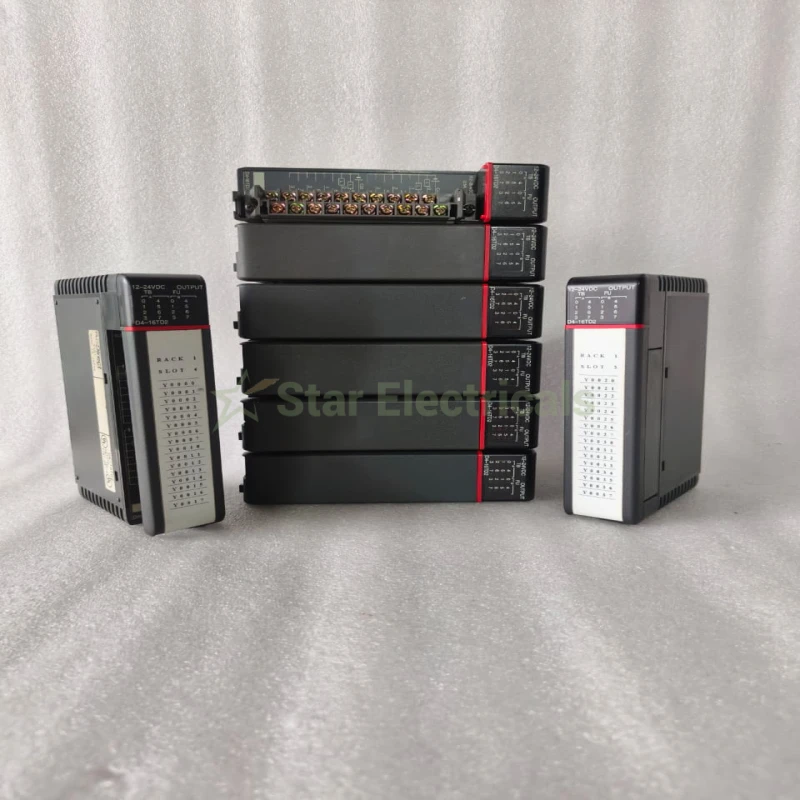

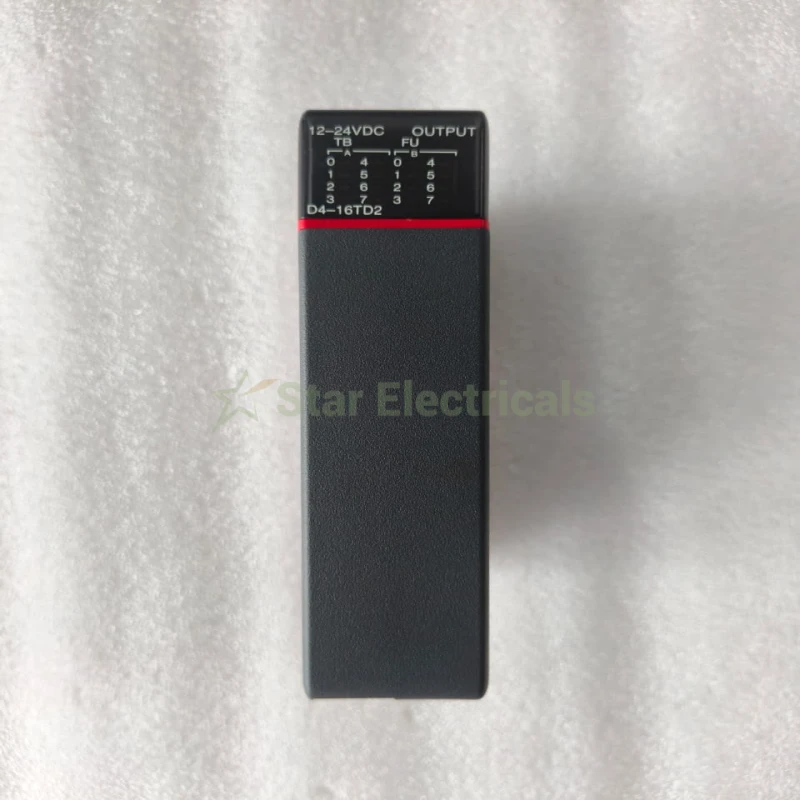

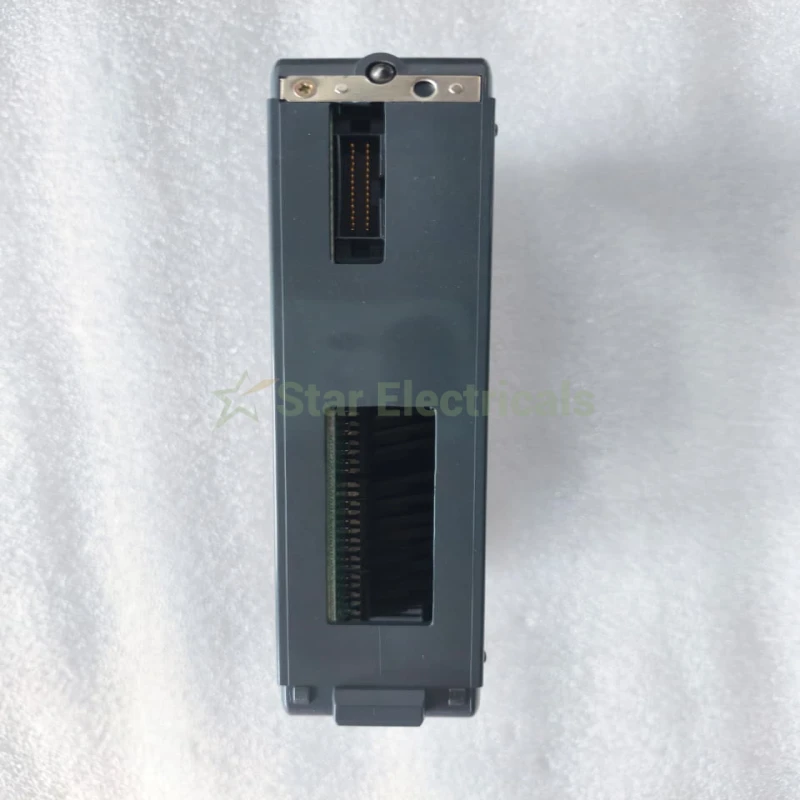

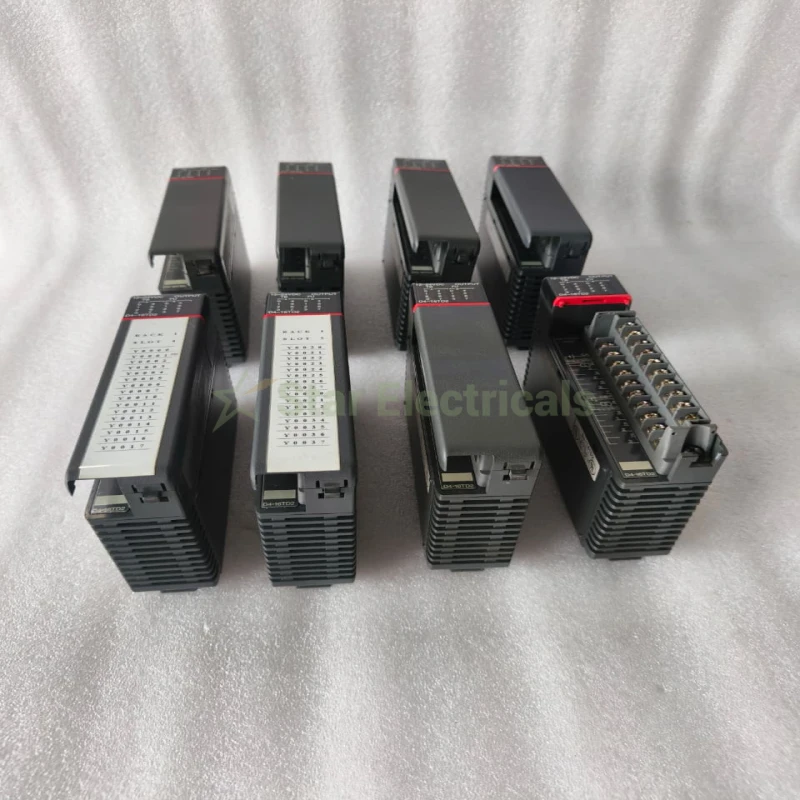

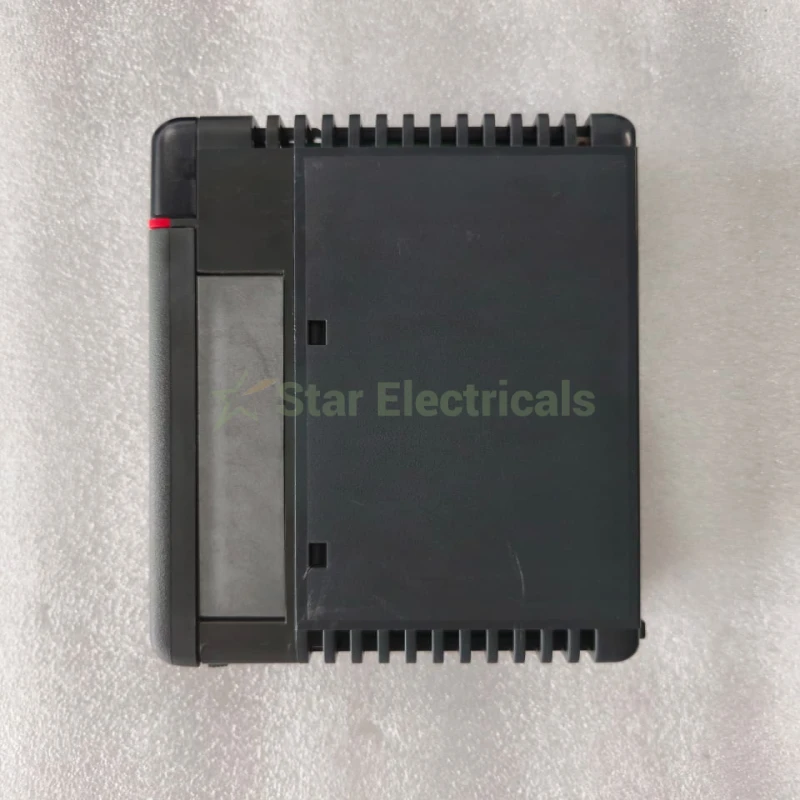

Koyo D4-16TD2 DirectLOGIC DL405 Discrete Output Module

Name: Koyo D4-16TD2 DirectLOGIC DL405 Discrete Output Module
Brand: OTHER
SKU: 1757
Availability: InStock

Pricing Status

USED

Specification Details
Brand: Koyo
Part Number: D4-16TD2 / D416TD2
Output Specification: 16 Sourcing Outputs
Peak Output Voltage: 40 VDC
ON Voltage Drop: 1.5 VDC @ 0.5A
Maximum Current: 0.5A per point / 3.0A per common group
Response Speed: 1ms OFF-to-ON / 1ms ON-to-OFF
Base Power Required: 5V 400 mA max
Programming Framework: Compatible with DirectSOFT programming software v4.0
Status:- Used Excellent Working (As Per Photos)

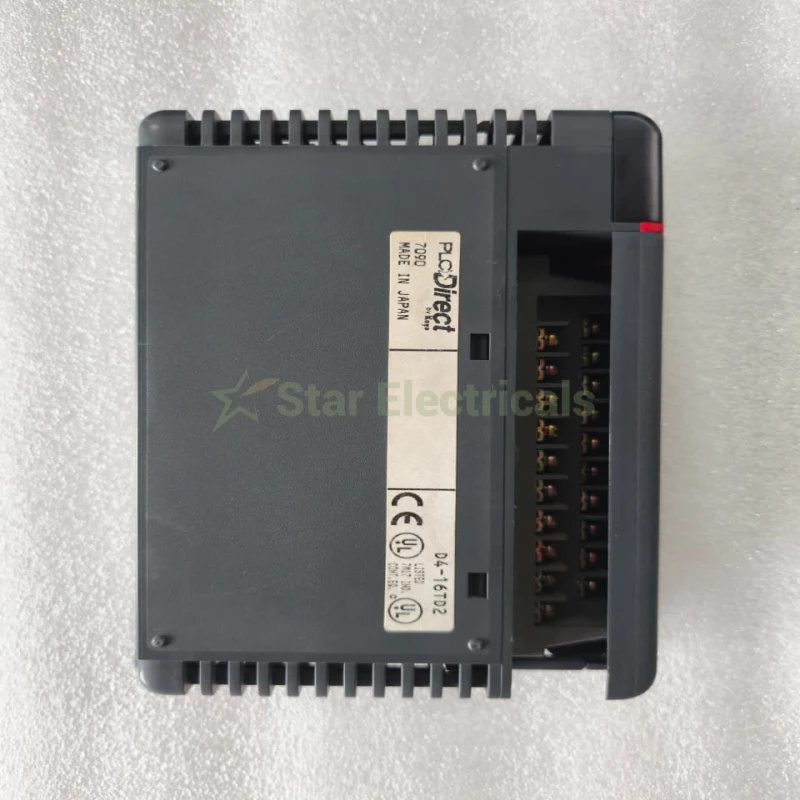

Country of Origin:- Made In Japan
Shipping:- Fast & Safe Worldwide Shipping Available.

chat WhatsApp

verified_user

Free Shipping

For Indian customers

verified_user

Secure Payment

100% protected

verified_user

Export Quality

Authentic & Certified

verified_user

Fast Delivery

Worldwide shipping

The PLCDirect by Koyo / Automation Direct D4-16TD2 is a professional-grade discrete DC output module built exclusively for the reliable DirectLOGIC DL405 PLC series. This high-efficiency module delivers 16 channels of precise current-sourcing automation control over a nominal voltage of 12-24 VDC.

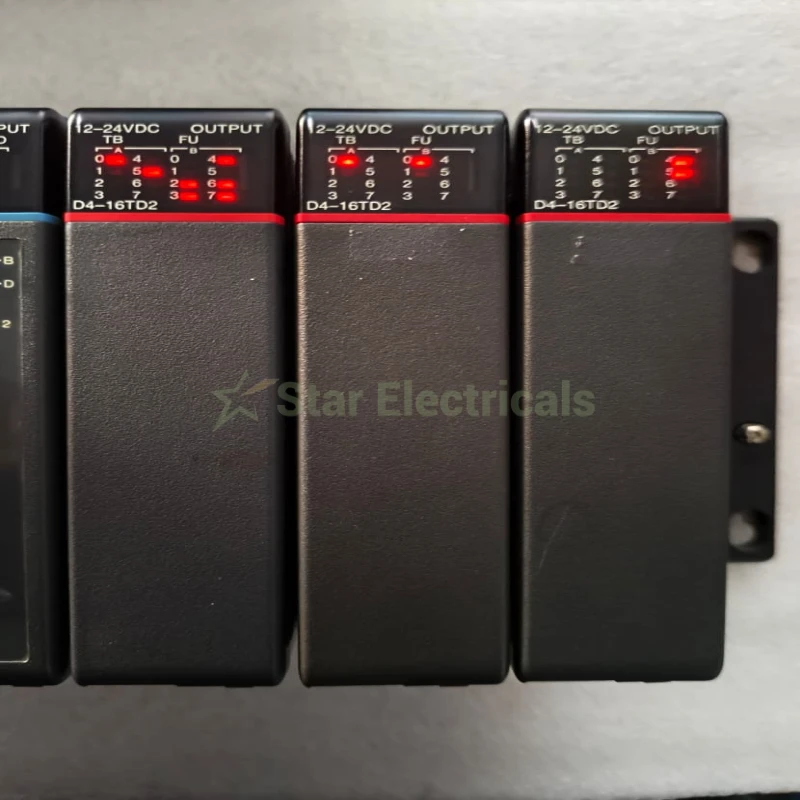

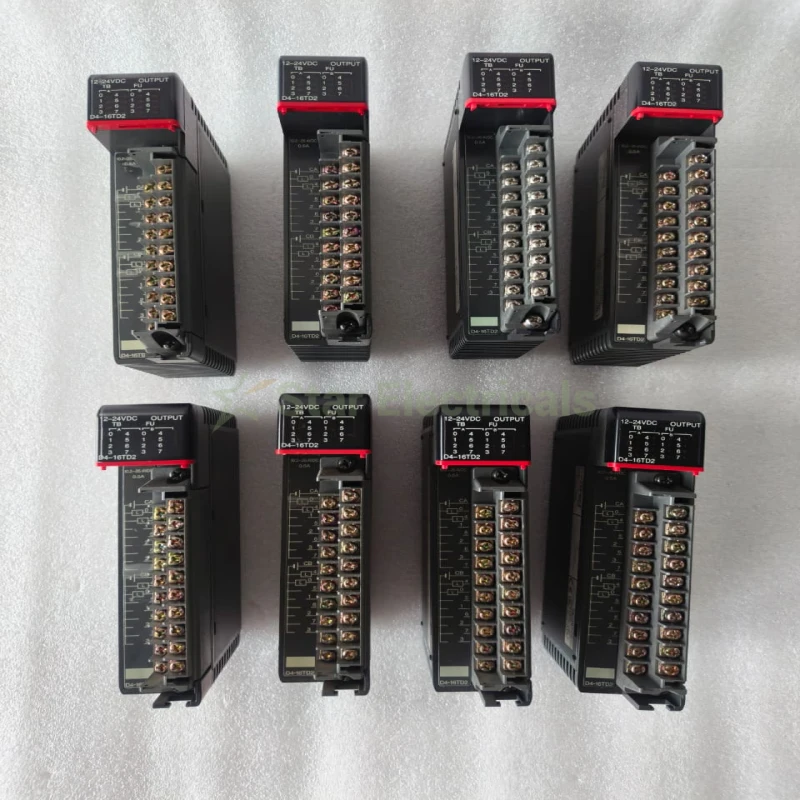

Utilizing a premium NPN Emitter Follower output configuration, it supplies up to 0.5A per standalone channel, maintaining consistent throughput for high-demand industrial actuators, solenoids, and indicators. Designed for modular versatility, its 2 isolated commons isolate output groups to manage electrical noise and crosstalk inside system control panels. To assure rapid installation and zero-hassle replacement, it features a logic-side diagnostic display alongside a standard removable field terminal interface block.
